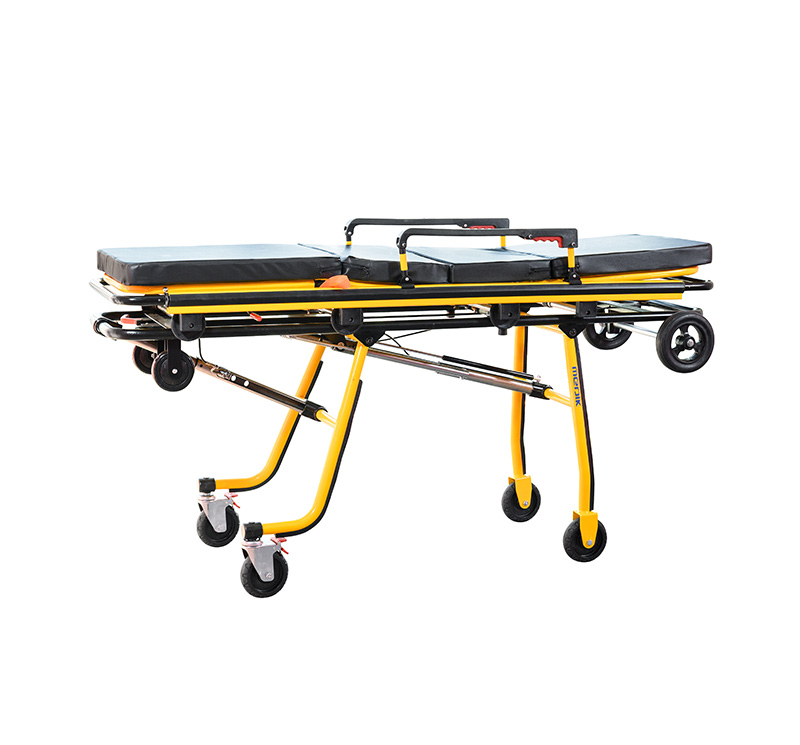

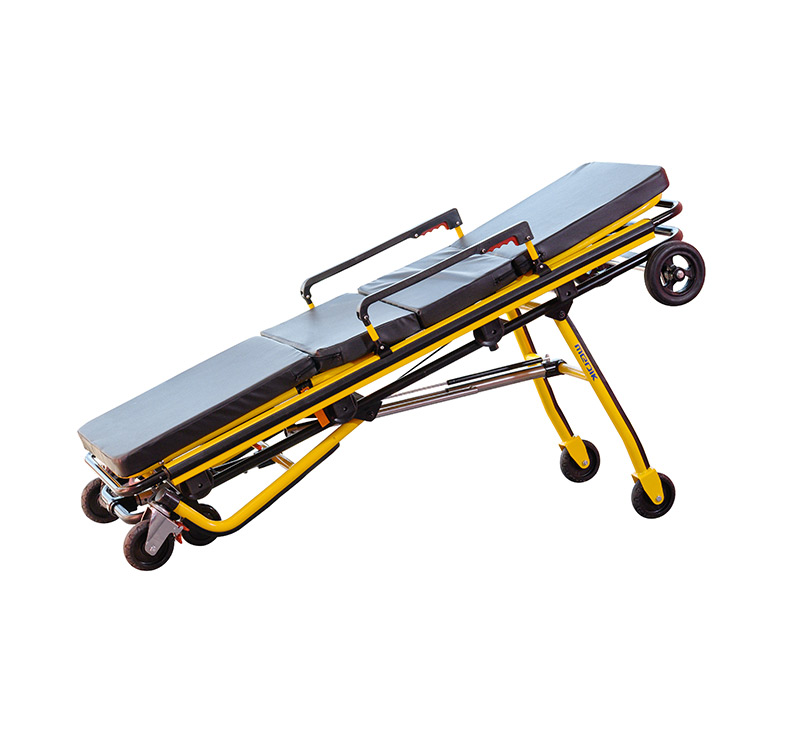

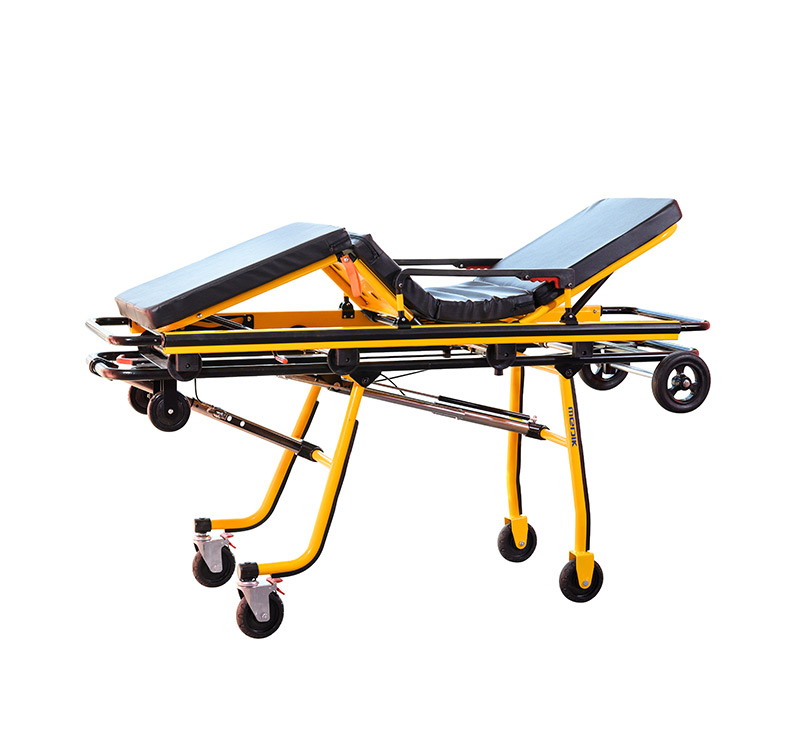

YA-AC03 Ambulance Cot Loading System

The YA-AC03 is an ambulance stretcher operated totally by one person for upload and download with patient from and to ambulance. The removable stretcher surface and Steer-Lock System offer excellent manoeuverability. The unique structure offers great stability and attractive appearance, it can be used flexibly in various places,such as , the field, gymnasium, emergency room, etc.

Main features

- Made of aluminum alloy and stainless steel materials

- Lightweight, easy to clean and sterilize

- The surface is made of a foamed cushion, a vinyl protective cover

- Backrest is adjustable, which makes the wounded feel comfortable

- The handles on both sides control the mechanical folding legs

- One person can operate and send the patient to the ambulance vehicle

- Stretcher comes standard with safety locking wheels

- Oversized wheels with sealed castors and wheel bearings

- Equip I.V. pole

Technical parameter

Model	YA-AC03
Material	High-strength aluminum alloy
Size(Low position)	1950 × 570 × 280 mm (76.7" x 22.4" x 11")
Size(High position)	1950 × 570 × 910 mm  (76.7" x 22.4" x 35.8")
Backrest adjustable	0-65°
Footrest adjustable	0-15°
Load capacity	200 kg(440 Ibs)
Castors	Dia 150 mm  ( 6")
