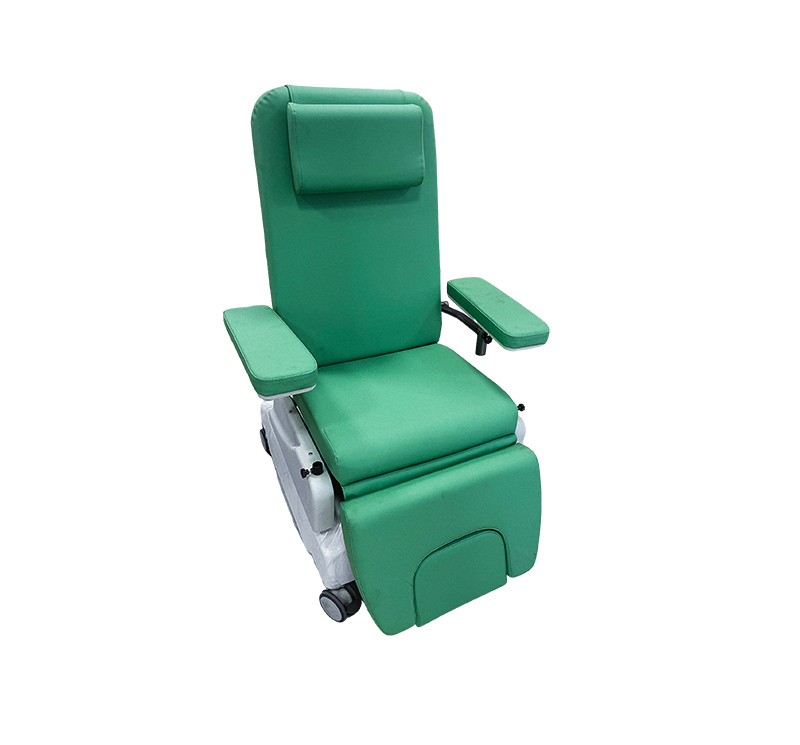

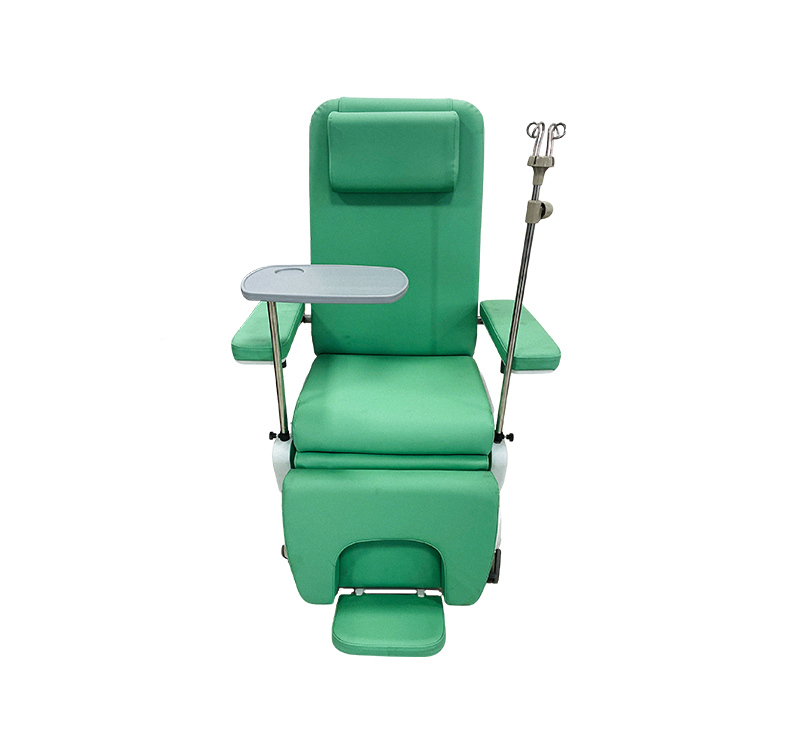

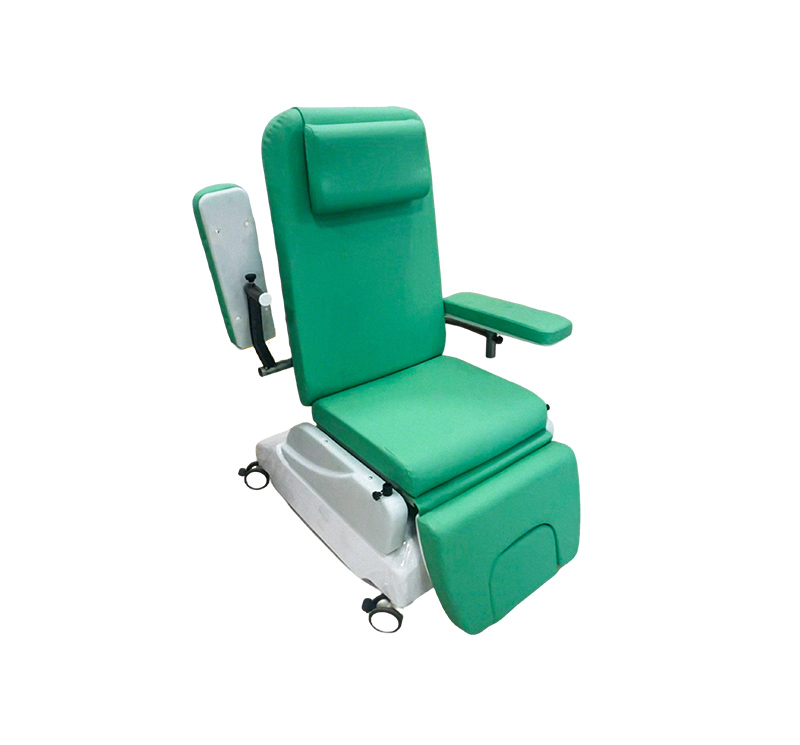

YA-DS-D04 dialysis/oncology/chemotherapy treatment chair

Share:

Model : YA-DS-D04

Size : 1950 × 900 × 550-750 mm

Color options :  Green, Blue, Pink

Motor: Jiechang motor

Certificate: CE / ISO

After-sale Service: Online technical support

Warranty: 3-Year on Frame and Welds, and 2-Year on Parts


  • Product Details

The YA-DS-D04 is d esigned for patient comfort during dialysis, oncology, and chemotherapy treatments , which can better provide patients with a more comfortable environment, reduce the psychological pressure of patients, and make the process of blood donation or dialysis more comfortable.

Main features

- Ergonomic design gives blood donors a sense of security and comfort, alleviates psychological pressure, and makes the whole process easier and enjoyable.

- The appearance is made of high-strength fiber material and poly-layer paint

- Upholstery with 70 mm thick foam

- Chair frame is made of premium powder-coated steel

- Four ø 100 mm casters with individual locking systems are included to facilitate the movement of the donor chair.

Technical parameter

Model YA-DS-D04
Overall size 1950 × 900 × 550 mm
Seat size 520 × 600 × 550 mm
Back section adjustment -12°-75°
Leg section adjustment -12°-75°
Height adjustment 550-750 mm
Trendelenburg 0-12°
Armrest swing-out 0-180°
Pillow size 410 × 230 × 80 mm
Loading capacity 240 kg
