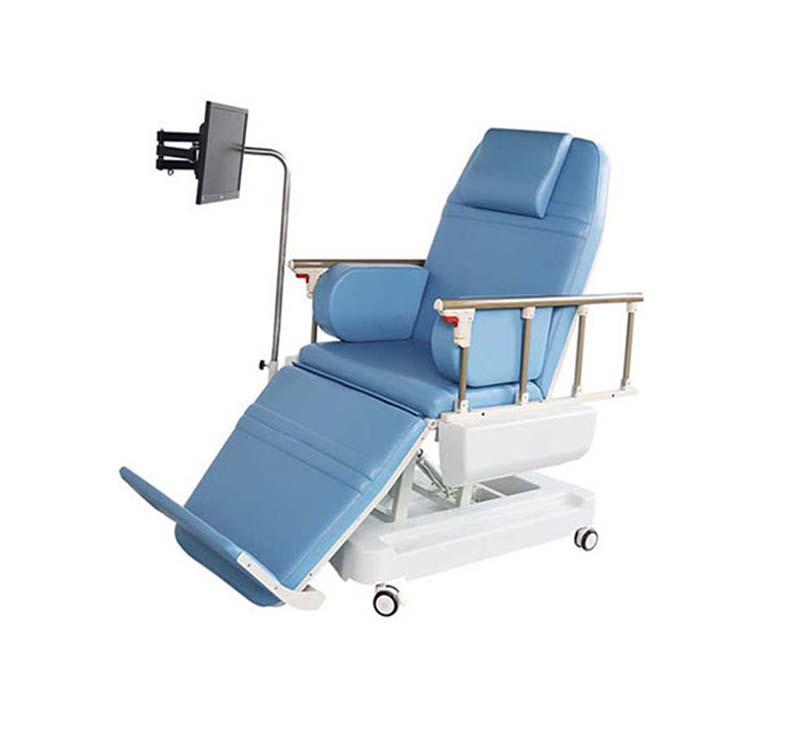

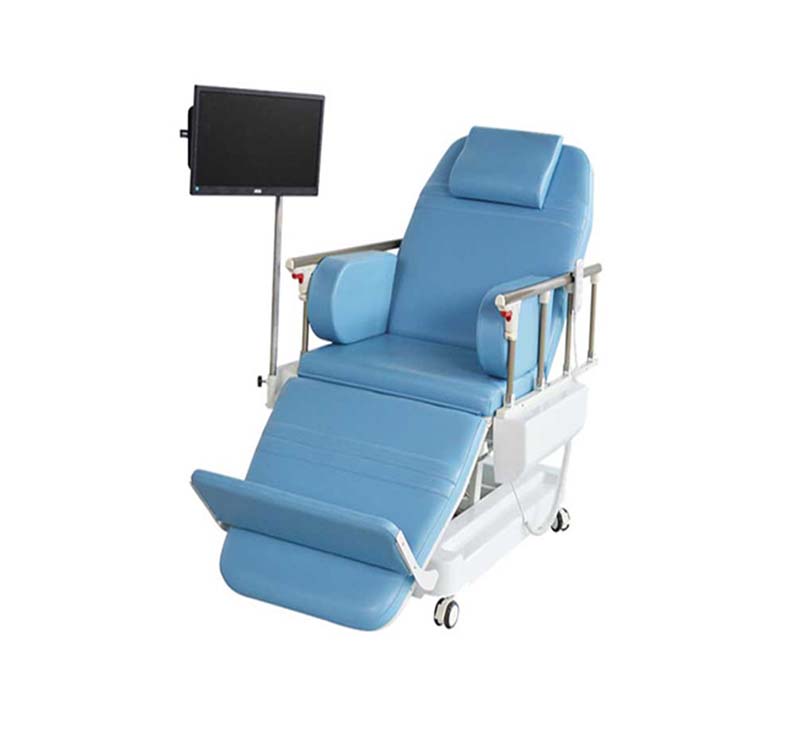

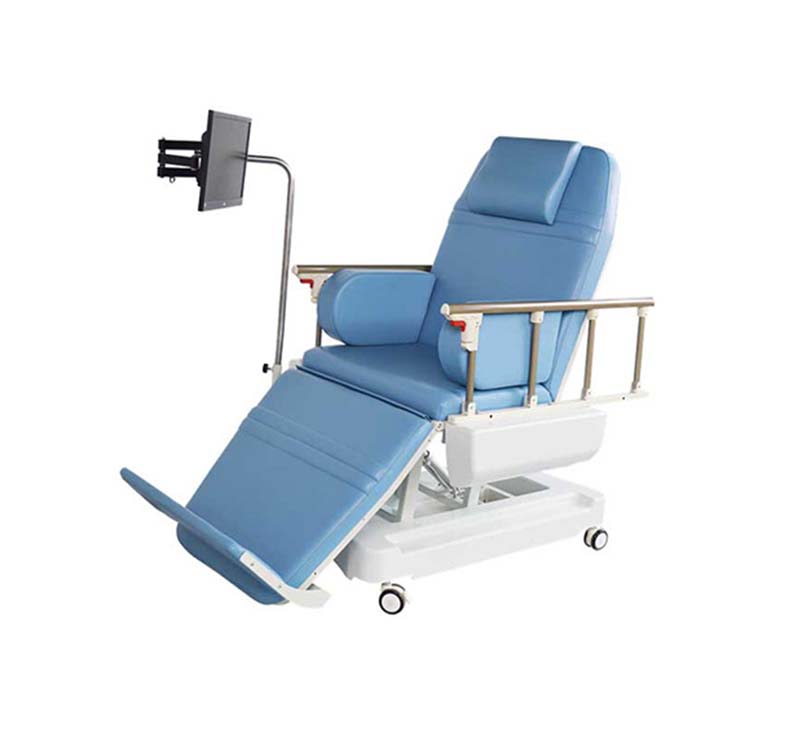

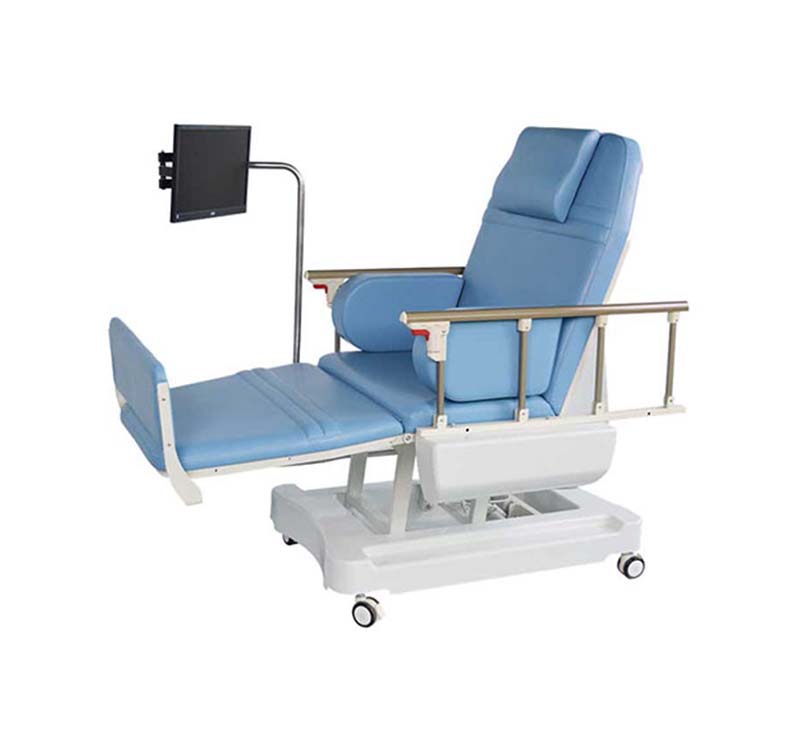

YA-DS-D01 Electric Dialysis Bed

Model : YA-DS-D01

Overall size : 2000 × 780 × 520-680 mm

Function: height, back and leg rest adjustment

Loading capacity: 240 kg

Certificate : ISO/CE

After-sale Service : Online technical support

Warranty: 3-Year on Frame and Welds, and 1-Year on Parts

Next Product Inquire Now

Product Details

YA-DS-D01 dialysis bed is ideal for all kinds of settings: Dialysis, Oncology, Cardiac Care, Day-Surgery, Post Op and more. Lay back with your feet above your heart or sit up with your legs in any position. This multi-positioning system allows maximum patient comfort and convenience.

Main features

- New design epoxy metal frame

- High quality upholstery, very easy to clean.

- Equipped with 3 motors for height, back and leg rest adjustment

- Aluminum alloy folding guardrail for protecting patient

- Individual locking system on the 4 castors of 10 cm diameter

Technical parameter

Model	YA-DS-D01
Overall size (length * width)	2000 * 780 mm (78.7" x 30.7" )
Height adjustment	520 mm-680 mm (20.5" ~26.7")
Back section adjustment	0 to 70°
Leg section adjustment	0 to 60°
Footrest sliding distance	150 mm ( 6")
Castor	Dia100 mm ( 4")
Loading capacity	240 kg(530 Ibs)
