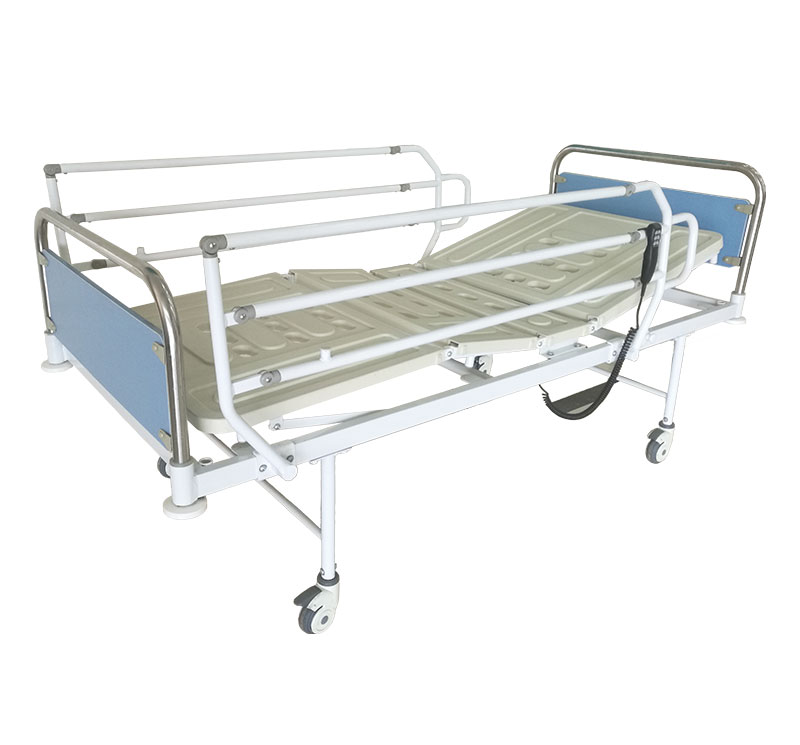

YA-D2-1 Two Function Simple Electric Medical Clinic Bed

Specification

- Bed Frame Electrophoresis and powder coating

- ABS material platform

- Quiet and robust electric actuators provide reliable operation

- Hand remote controller of all electrically operated functions and movements

- Collapsible aluminum railing with three horizontal rods

- Detachable head/footboard with easy lock

- Castors: Caster diameter of 125 mm with diagonal locking

- Bumper castors on 4 corners of the bed

Special Features

- Auto-counter function Auto-counter to provide the patient from sliding onto the foot end

Technical features

Model	YA-D2-1
Size (L*W*H)	2160 × 1050 × 590 mm (85" x 41.3" x 23.2")
Lying surface:	1950*830 mm (76.7" x 32.6" )
Fixed height	590 mm ( 23.2")
Height from platform to railing top	420 mm ( 16.5")
Back secticn adjustable	0° to 75°
Knee secticn adjustable	0° to 40°
Safe working load	175 kg (385 Ibs)

Standard Accessories

- Head/Foot Board 2 pieces

- Side Rails 2 pieces

- Bed Frame 1 set

- Bed Boards 4 pieces

- Casters 4 pieces

- IV Pole Holder 4 pieces

- IV Pole 1 piece

- Drainage Bag Holders 2 pieces
