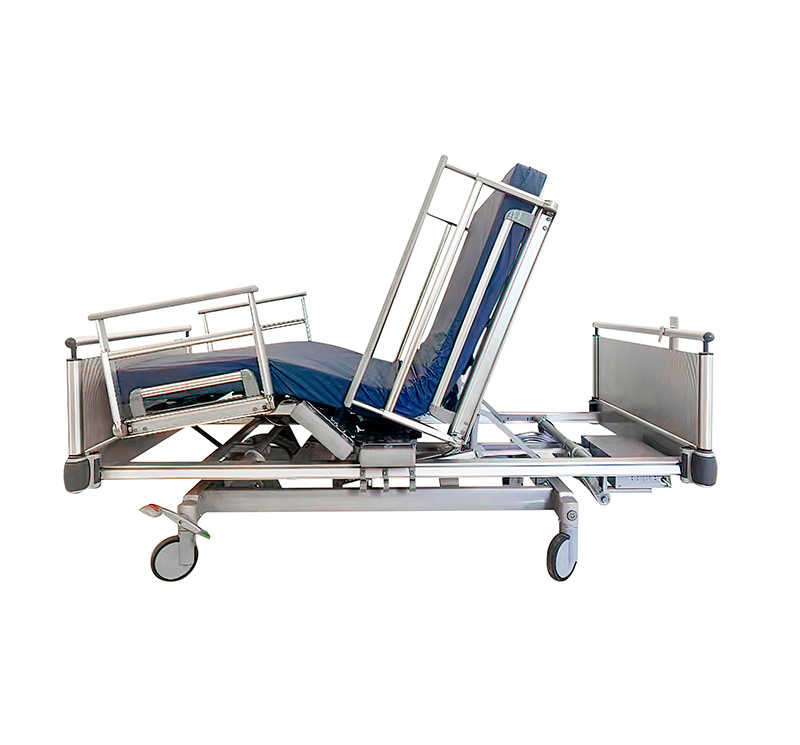

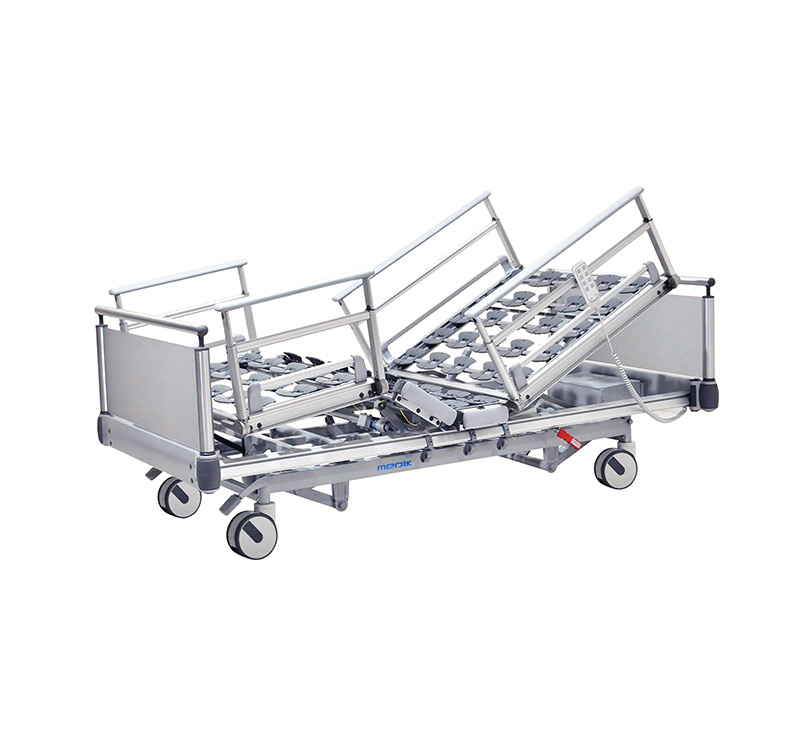

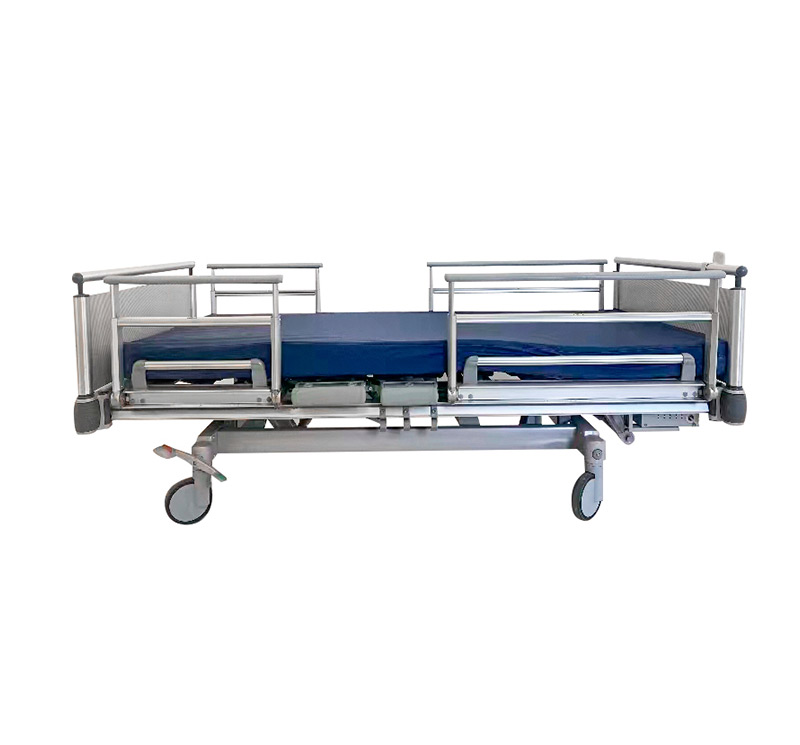

YA-DH8-1 Aluminum Frame Electric Nursing Home Bed

YA-DH8-1 is a medical bed designed with the future concept, The aluminum casting frame makes the bed for long-term use and easy to disinfect. The unique butterfly sleeping platform provides the patient with special comfort that can not be experienced by a single mattress.

Main features

- Whole aluminum alloy frame

- Unique telescopic aluminum railing foldable and can be slid under to the platform

- Unique butterfly sleeping platform can distribute the pressure of the body evenly

- Manual CPR lever located on both sides of the bed

- Bumper caster located on four corners

- Central brake system with 150 mm diameter

- Auto-counter to prevent the patient from sliding onto the foot end

- The hand remote control can stuck on the railing

- Detachable head/footboard with easy lock

- Bed extension in a mechanical way (optional)

- Auto-regress to remove the pressure of the abdomen when adjusting the backrest (optional)

- Retractable 5th wheel for direction(optional)

Technical parameter

Model	YA-DH8-1
Overall size	2103 × 990 × 465 mm (82.7" x 39" x 18")
Height adjustment	465-790 mm (18" - 31" )
Back section up/down	0-70°
Foot section up/down	0-35°
Trendelenburg	0-12°
Revere- Trendelenburg	0-12°
Loading capacity	240 kg (530 Ibs)
Castor	Dia 150 mm ( 6"  )
