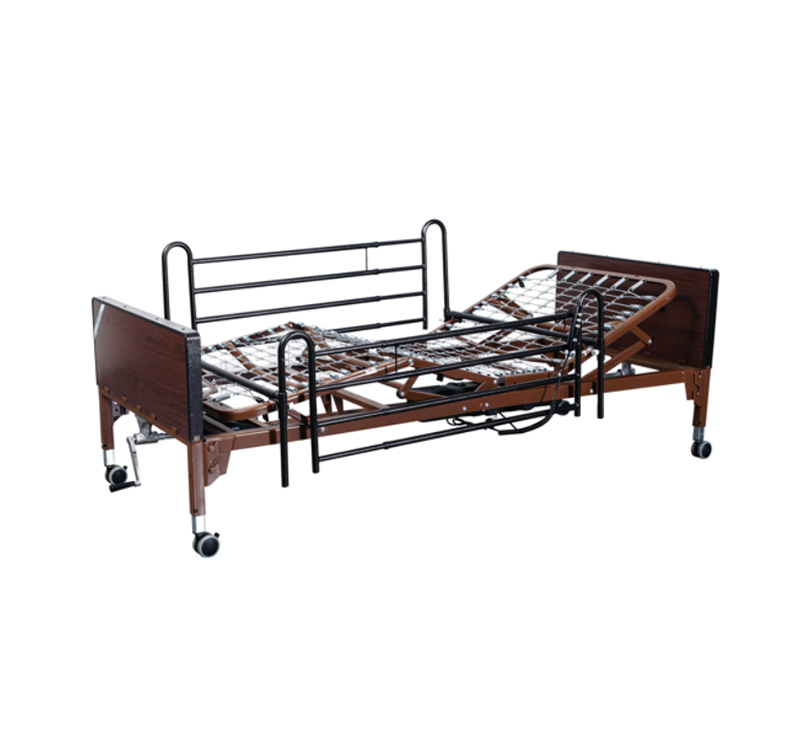

YA-EH3-2 Full Electric Hi-Low HomeCare Bed

The YA-EH3-2 homecare bed is best suited for home use. The Full Electric care bed features a hand pendant that controls the height of the head and foot of the bed and the overall bed height. The Bed has more strength and support with a reinforced steel plate positioned in the middle of the frame, helping to ensure durability and performance for years to come.

Features

-  Made of steel frame with a coating surface

-  Back, Knee and Hi/Lo control by 3 motors

-  The plastic grain panels are break and scratch resistant

-  Channel frame construction provides superior strength and reduced weight

-  Zinc-coated spring deck

-  Unique motor is completely self-contained to reduce weight and noise

-  The motor assembly can be installed and removed with the patient in bed

-  Bed ships in two cartons

Technical Data

Model	YA-EH3-2
Overall size	72" x 30"	2235 x 920 mm
Mattress size	66.2" x 28.8"	2020 x 880 mm
Height Adjustable	12" to 19"	380-585 mm
Back section	0-70°	0-70°
Knee section	0-40°	0-40°
Net Weight	167 lbs	75.6 kg
Loading capacity	452 lbs	205 kg
