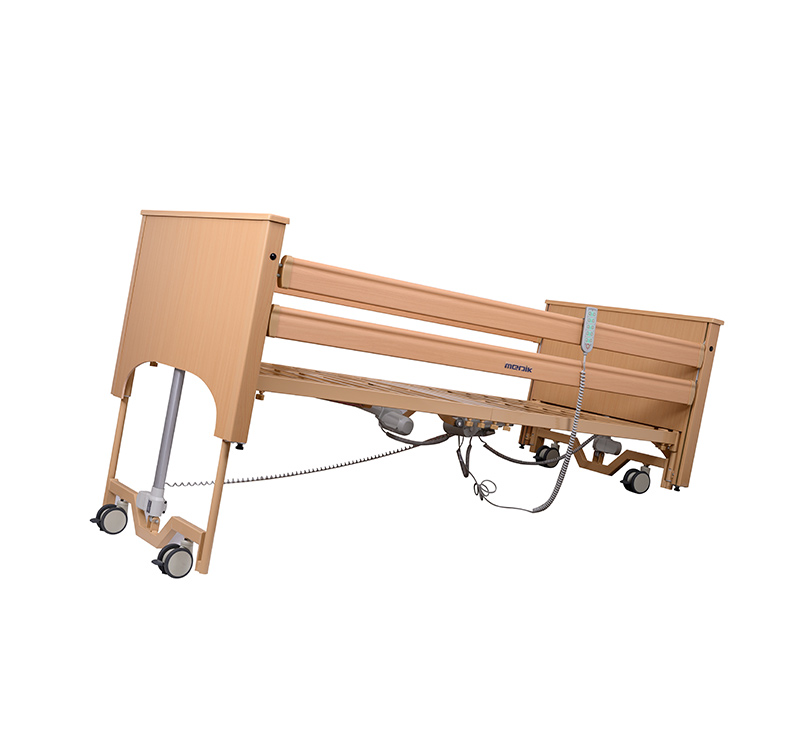

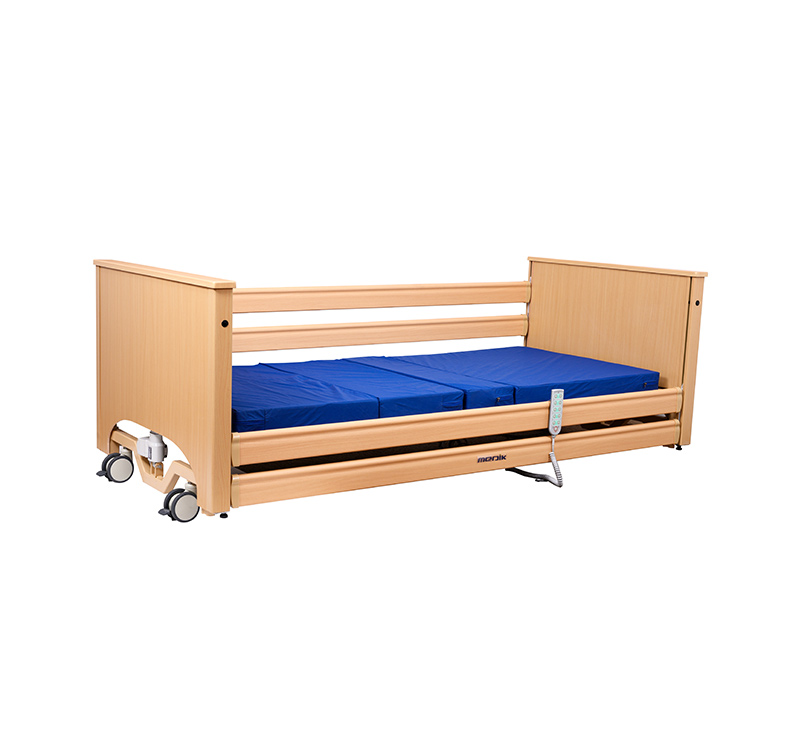

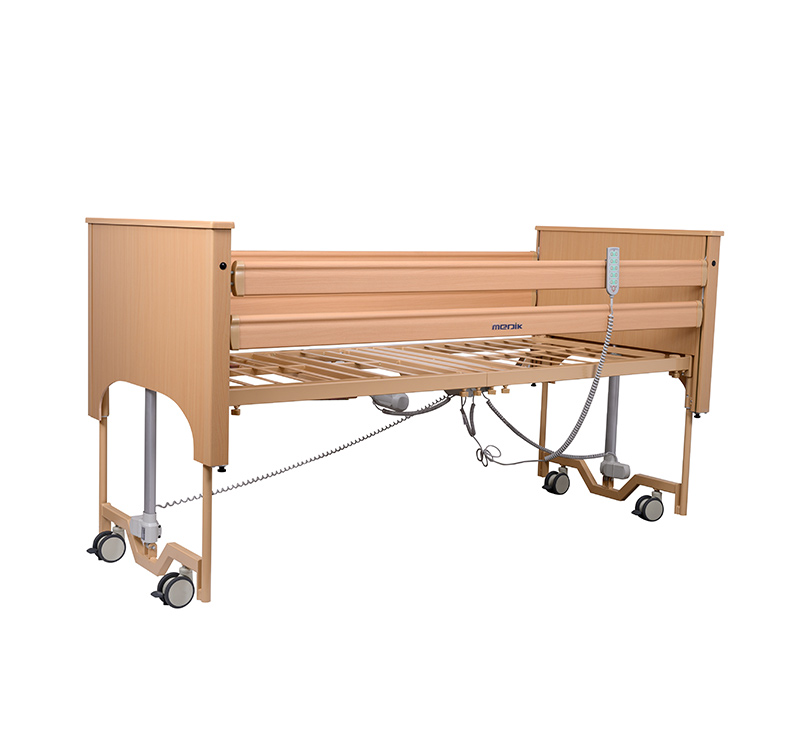

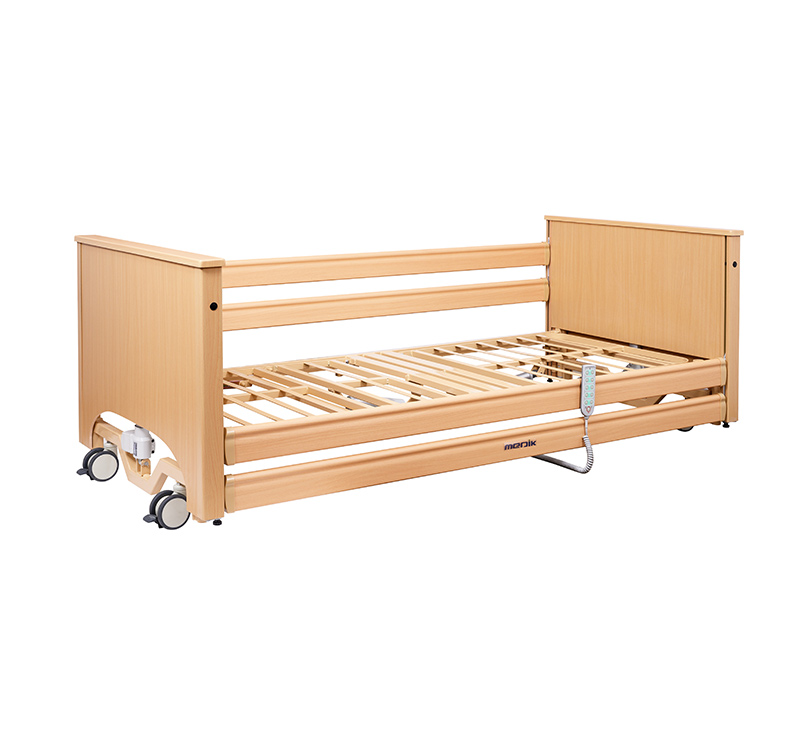

YA-DH5-3 Ultra Low Profiling Bed

This YA-DH5-3 is ultra-low profiling bed with a minimum height of 300 mm, the low height will minimize the consequence of bed falling. Full-length guardrails give perfect protection for patients from falling off. The entire wooden design generates the bed with a home-style bed environment.

Main features

- Electrically operated profiling bed for community and nursing home use

- Safe work load (SWL) 180 kg

- Variable height (230 mm - 630 mm)

- Wooden head and footboard with aluminum columns around

- Adjustable self-locking side rails provide additional safety which can be released at both head and foot ends

- Remote handset control

- High-quality castors (castor diameter: 100 mm)

- Quick and easy assembly in limited space

Options

- Lifting pole with triangle

- Urine bag stand

- Battery backup

Technical parameter

Model	YA-DH5-3
Overall size	2160 × 1030 × 230 mm (85" x 40.5" x 9")
Lying size	1900*900 mm (75" x 35.5" )
Height adjustable	230-630 mm (9" ~ 24.8" )
Backrest adjustable	0-75°
Footrest adjustable	0-40°
Trendelenburg	0-12°
Reverse-Trendelenburg	0-12°
Loading capacity	180 kg (395 Ibs)
Caster	Dia100 ( 4" )
