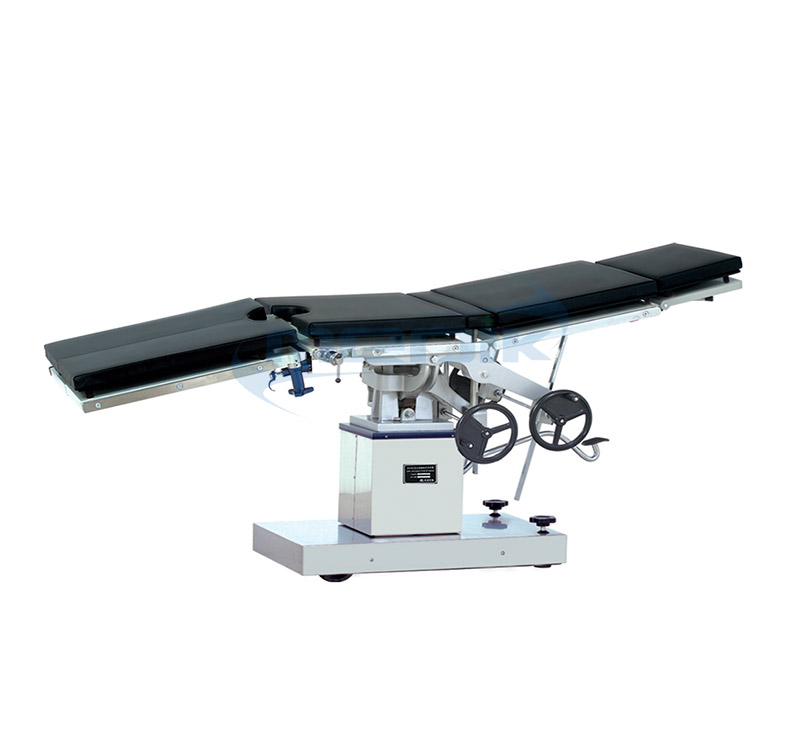

YA-05M Manual Surgical Table

Main features

- Application: For various surgical operations(head, neck etc.) also orthopedic operations with traction frame

- Structure: Boasting double beds, control on both sides to achieve different positions

- Chassis: Stainless steel base

Specifications

Model	YA-05M
Overall size	2100 × 480 × 750-950 mm
HI-LOW	(750-950)±50 mm
Head board fold upward and fold downward	≥45°/≥90°
Back board fold upward and old downward	≥75/≥18°
Leg board fold downward and fold outward	≥90°/≥90°
Trendelenburg and Reverse-Trendelenburg	≥20°/≥30°
Left and right tilting angle	≥18°
Waist board lifting	≥120 mm
Loading capacity	180 kgs
Packing	126 × 78 × 105cm=1.03M3   G.W.:280 kgs

Standard accessory

1 pair armrests

1 pair waist grab holder

1 pair shoulder supporter

1 pair leg holders

1pc anesthesia screen

Imported Y style hermetic ring

Hydraulic oil pump for elevation
