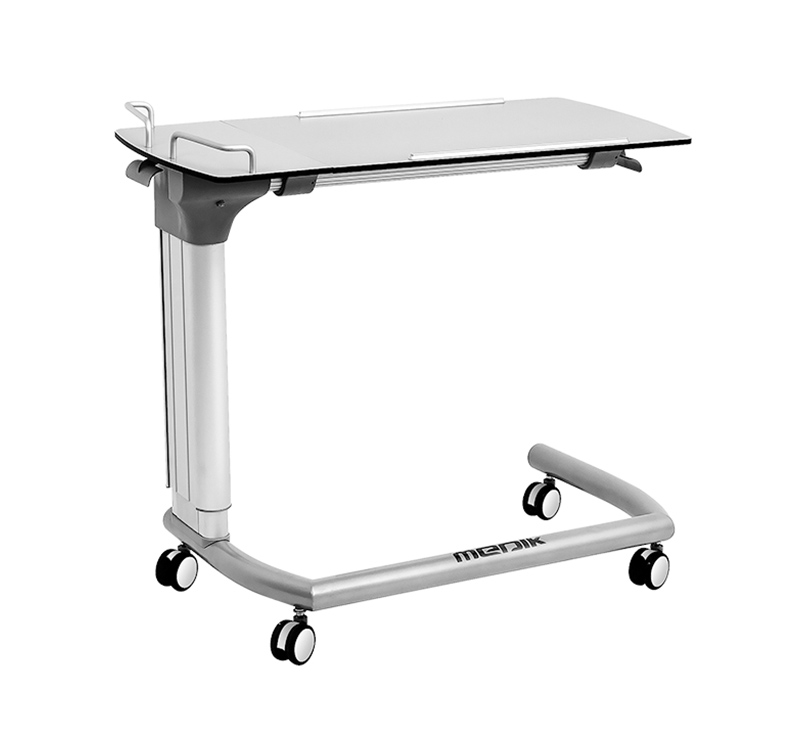

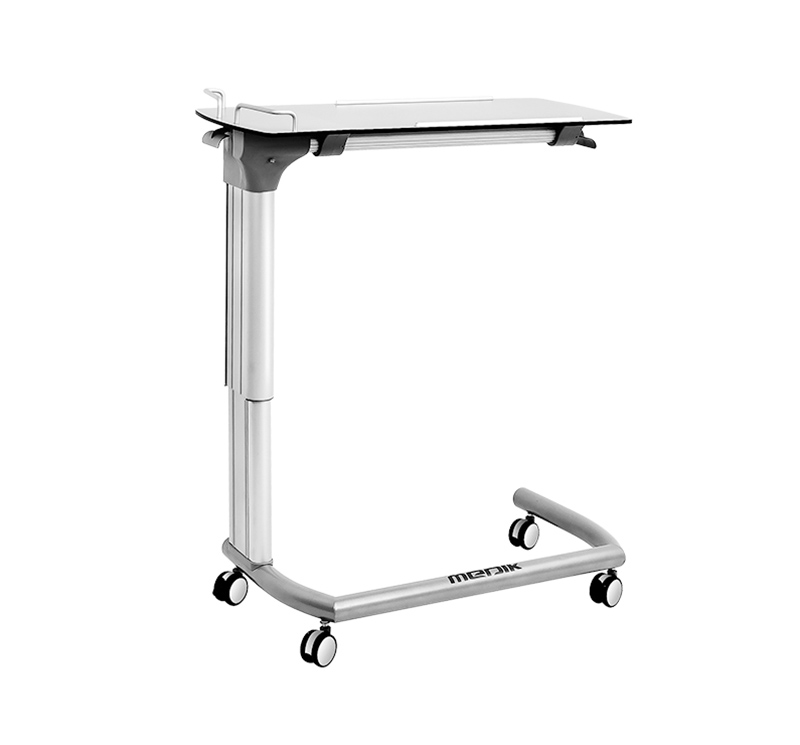

YA-T01 U-type Medical Overbed Table

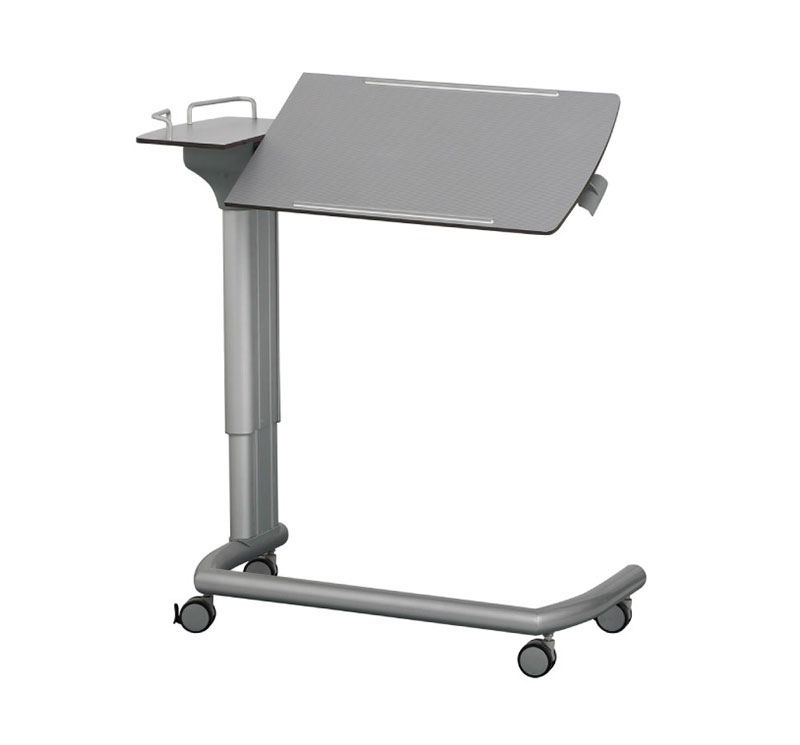

The YA-T01 Overbed Table is available with a two-piece tilting table top, allowing the patient to position part of the table at multiple angles for activities such as reading.

Main features

- Efficient U-shaped undercarriage means the table is compatible with all care environments delivering maximum working stability

- Phenolic compact laminate (HPL) table top

- Aluminum undercarriage facilitate easy cleaning

- Air control height adjustment lifting devices.

- Single hand variable height operation for ease of use

- Book rest included with tilting table top

- Optional perimeter rails for side table provide additional stability for items on top surface

Technical parameter

Model	YA-T01
Overall (L*W*H)	885 × 420 × 745 mm (35" x 16.5" x 29")
Height adjustable	745-1000 mm (29" - 39" )
Table top size	885*420 mm (35" x 16.5" )
Tilting table top size	665*420 mm (26" x 16.5" )
Thickness of table top board	10 mm (0.5" )
Castor (2 w/brake)	4 x Dia65 mm (2.5" )
Safe working load	45 kg (100 Ibs)
