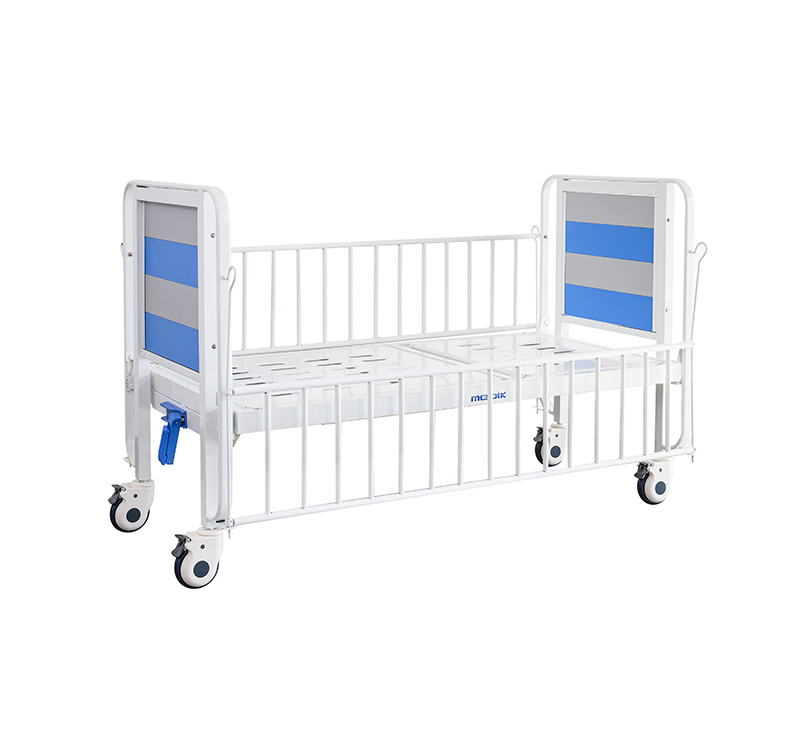

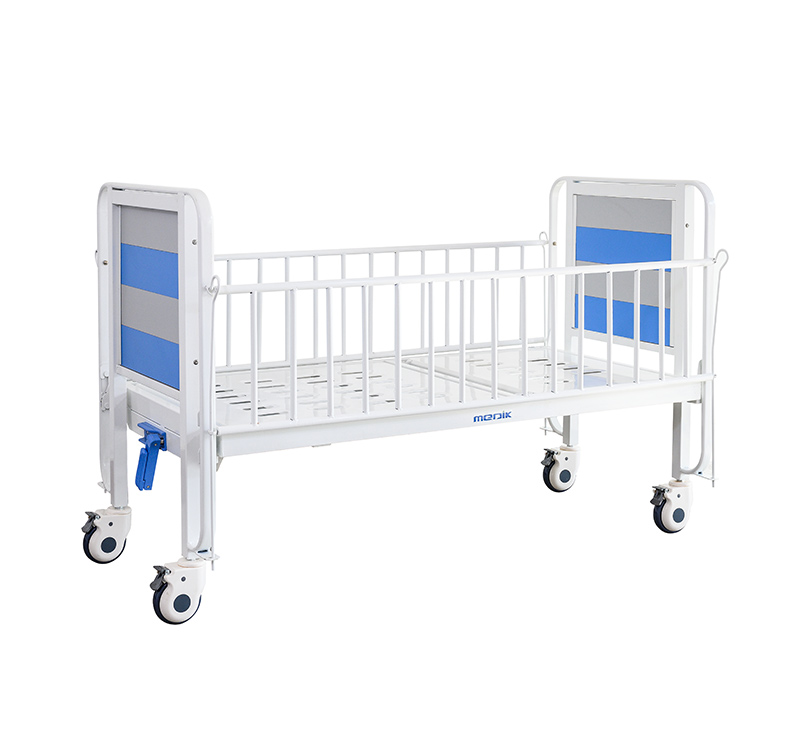

YA-PM1-1 Medical Child Bed With One Function

Share:

Model : YA-PM1-1

Overall Size :1680 × 870 × 500 mm

Lying size : 1550*800 mm

Function : Back section adjustment: 0-75°

Safe working load : 170 kg

Certificate : ISO/CE


  • Product Details
  • Downloads

Watch Video

YA-PM1-1 is a basic pediatric mechanical bed with slide-down side rails. It is a very durable and basic pediatric hospital ward bed with manual backrest adjustment. Two of the castors have individual locking for safety and stability.

Main features

- Full-length heavy duty protecting rail sliding up-down

- Head&foot board with attractive cartoon paste

- Bed sheet top made from perforated steel, epoxy powder coated and baked finish

- Bed framework made from mild steel ERW rectangular tubes

Accessories

- 1 pc SS telescopic I.V pole;

- 4 pcs urine bag hooks;

- 4 pcs I.V holes .

Technical parameter

Overall size 1680 × 870 × 500 mm
Lying size 1550*800 mm
Railing Height 500 mm

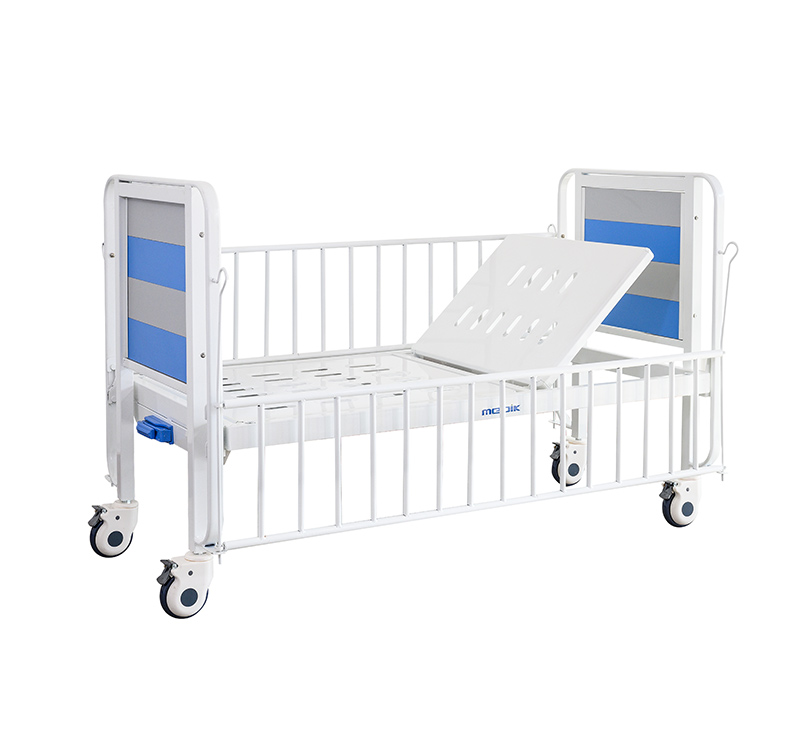

Back section adjustment 0-75°
Fixed height 500 mm
Caster Dia 125 mm
Safe loading capacity 100 kg
