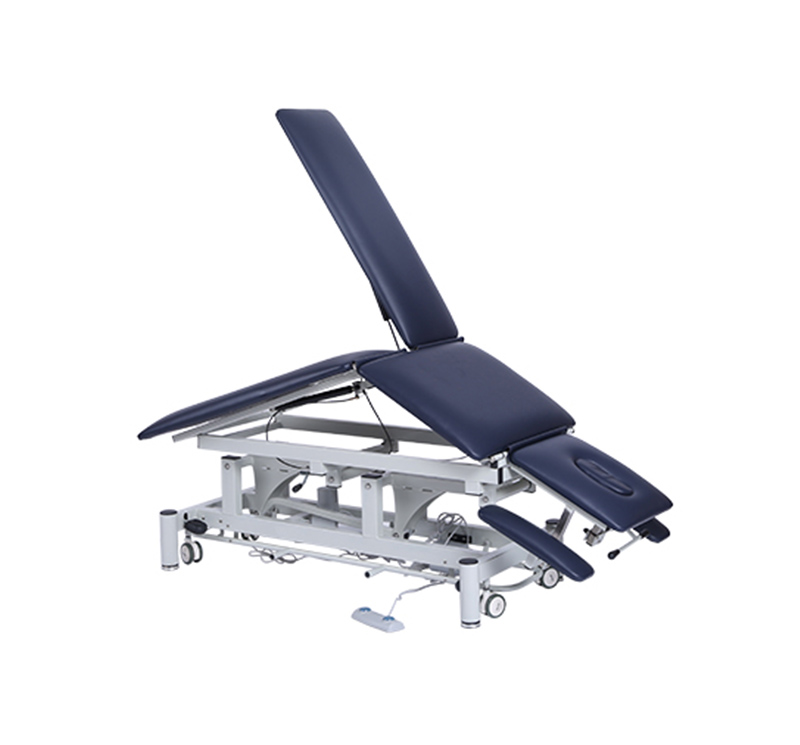

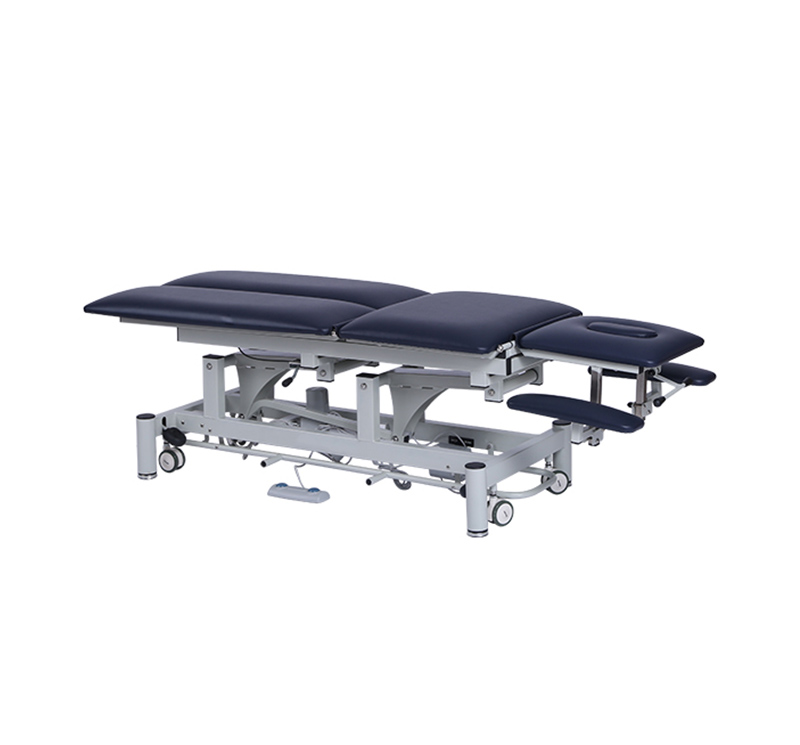

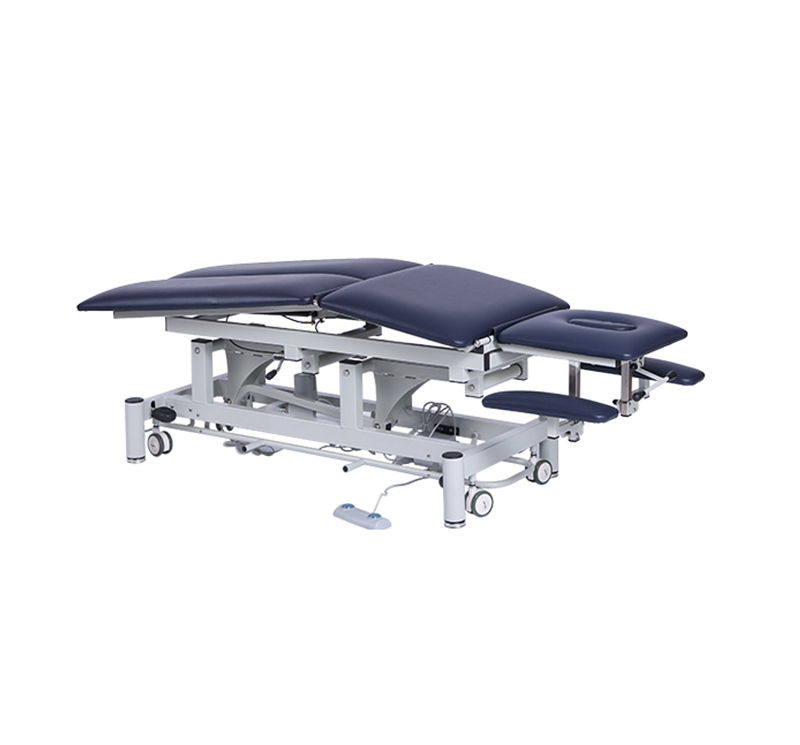

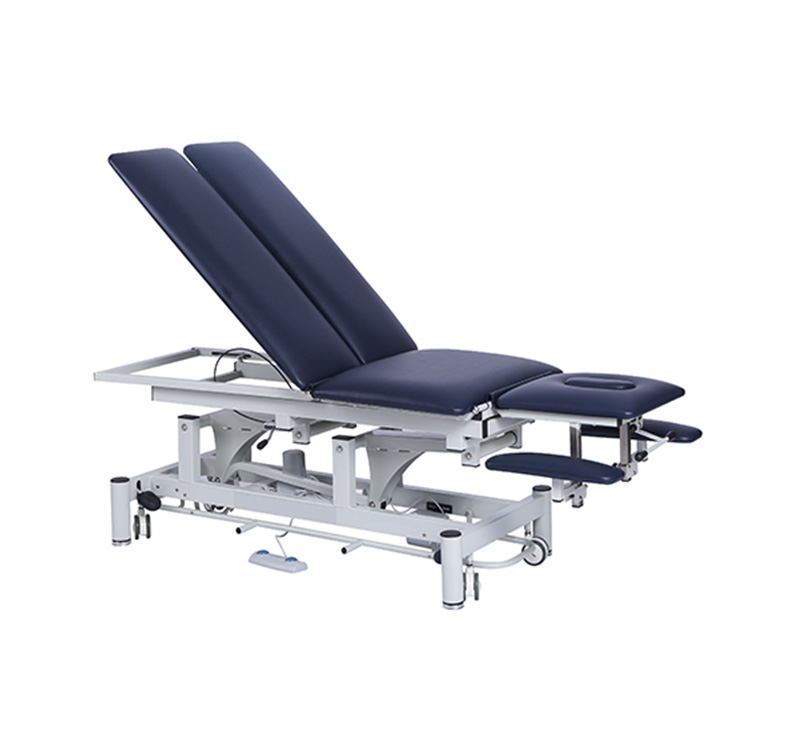

YA-ET-D04 Electric Medical Treatment Couch

Technical parameter

Dimensions
Overall size	1950 x 660 x (510-940)mm
Backrest Length	960 mm
Middle Section Length	510 mm
Head Section Length	430 mm
Load Capacity	250 kg
Caster	Dia75 mm
Foam Thickness	5cm
Foam Density	36g/m2
Function
Adjustable Height	51cm - 94cm
Head section adjustable	-40° to+45°
Back section adjustable	0° to +70°
Middle section adjustable	0° to + 25°

Main features

- Features a 6-section top design

- Backrest could be separated two parts.

- Heavy-duty steel frame to ensure long-term use

- Standard head section has face hole, but it may be ordered without a face hole (Please specify when ordering)

- Electric power height adjustment with foot control

- Electric power middle section adjustment with foot bar

- Hands-free low voltage foot control

- Seamless, rounded corner, upholstered top

- 2" ultra-firm padding

- Four casters allow the treatment table to be moved or stored

- Available in 9 upholstery options

- Customize with options

Standard Options

- Foot control

- Foot bar

- Hand control is free to transfer

- Paper roll holder unavailable

- Extra width upholstery up to 70cm.

- Extra 2cm foam thickness for upholstery.

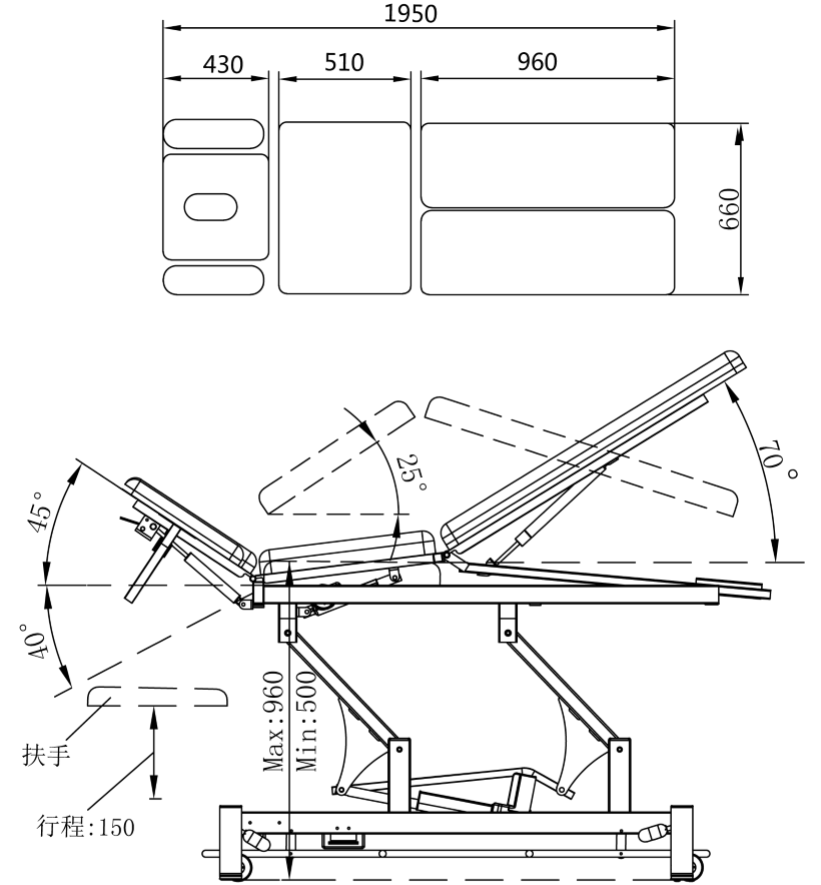

Size picture:
