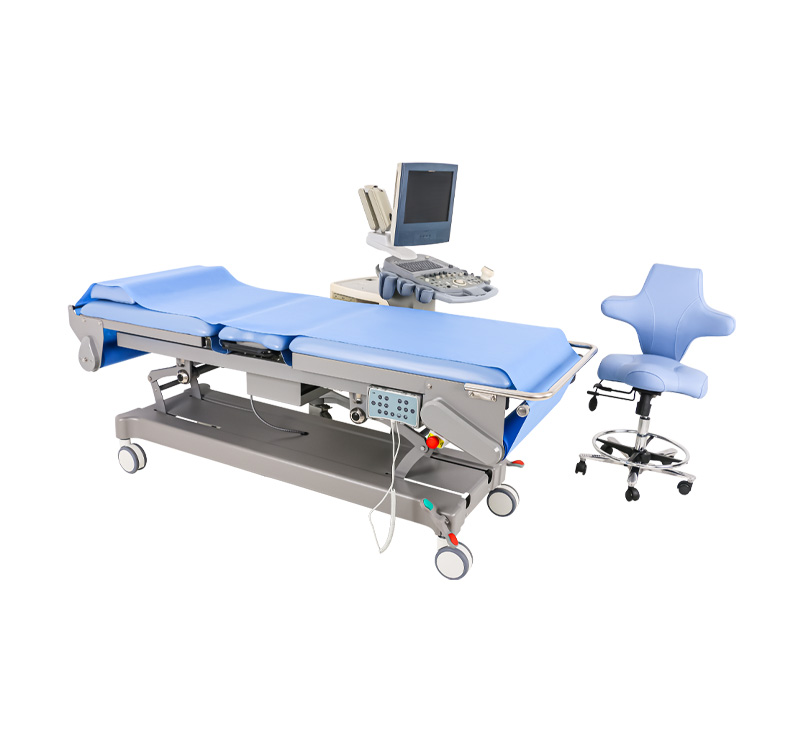

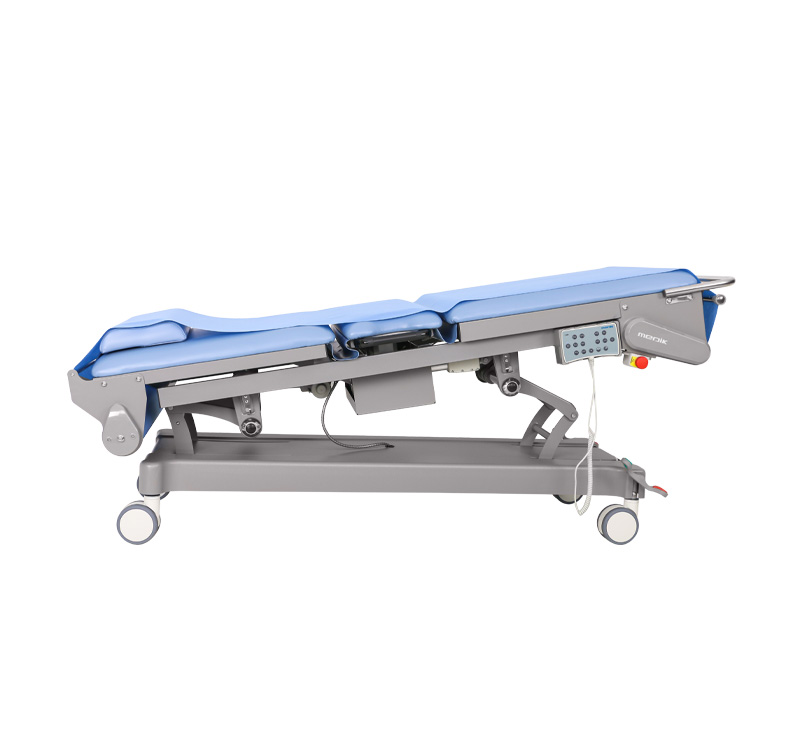

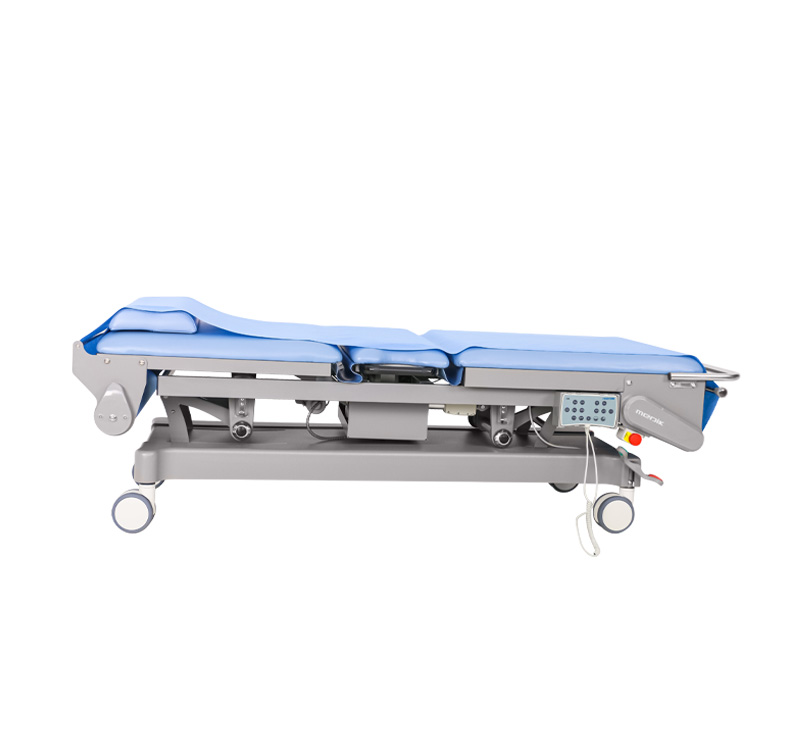

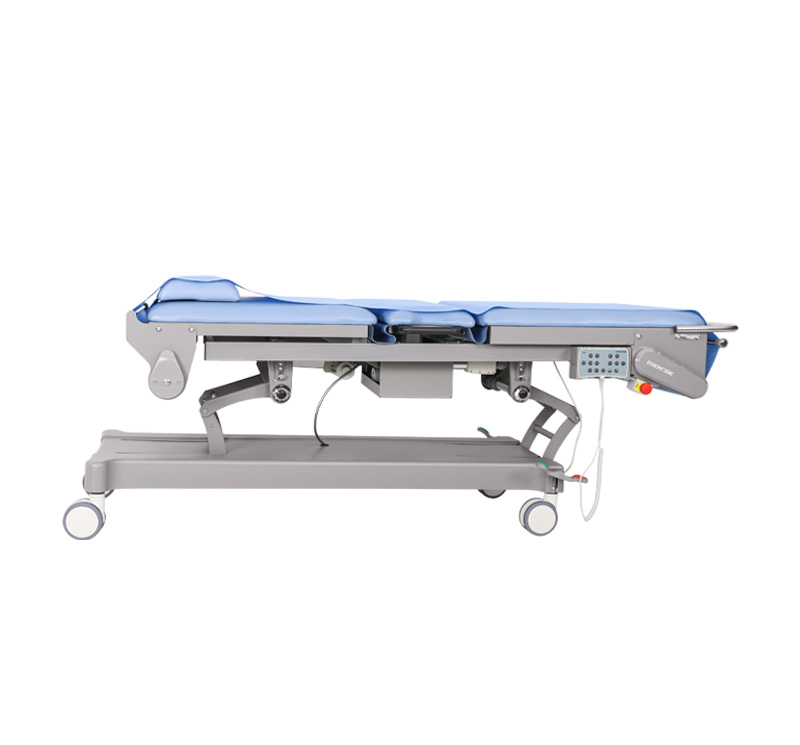

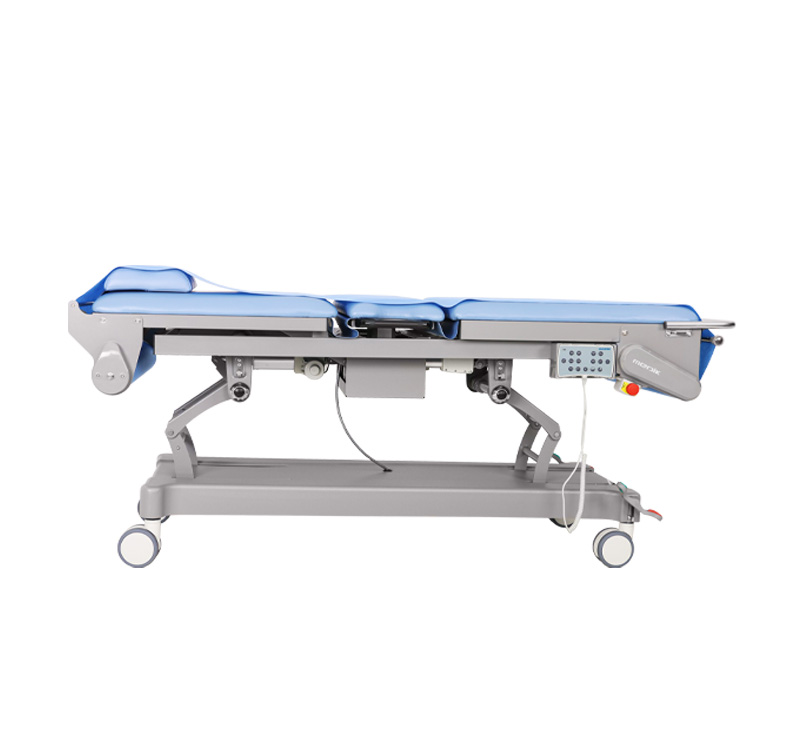

YA-EC-U03 Ultrasound Scanning Tables

Automatic linen sheet change will improve the exam efficiency, especially for the ultrasonic room, and it will provide a good hygiene experience for patients, comes with very comprehensive position adjustment capabilities, and YA-EC-U03 which bears the features is an ideal option for an ultrasound exam room.

Main features

- Steel with powder coating structure, durable, antibacterial and anti-corrosion

- Seamless high-density mattress, antibacterial,corrosion-resistant and scratch-proof

- Trendelenburg/Reverse Trendelenburg/height /Back and seat section adjustment function

- Sheet roll holder on both ends of the bed

- Automatic bed sheet change with automatic deviation correction function

- Quick bed sheet changing system

- Four castors,dia 5 inches , with central brakes for easy transport

- Has an emergency stop button

- With battery backup for emergency situations

Technical parameter

Model	YA-EC-U03
Overall size	2100 × 770 × 620 mm  (85.5" x 30.7" x 22.6")
Height adjustment	620-900 mm (22.6" - 35.4" )
Trendelenburg/Reverse Trendelenburg	0~12°
Back section	0~70°±5°
Seat section lifting	0~100 mm ( 0 - 4" )
Static working load	170 kg (374 Ibs)
Dynamic working load	250 kg(550 Ibs)
Castor	Dia 5 inchies
N.W	145 kg(319 Ibs)
G.W	185 kg(407 Ibs)
