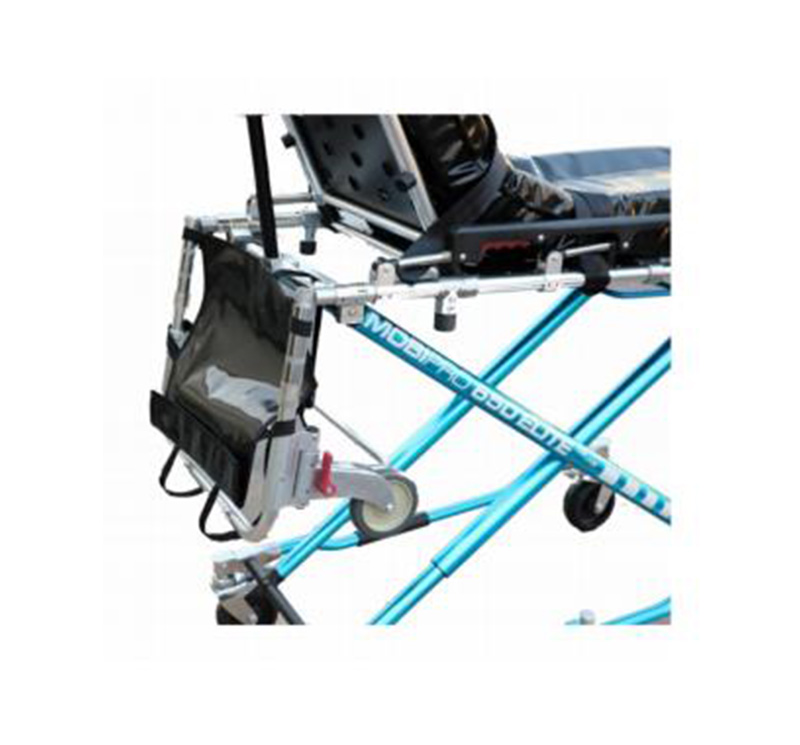

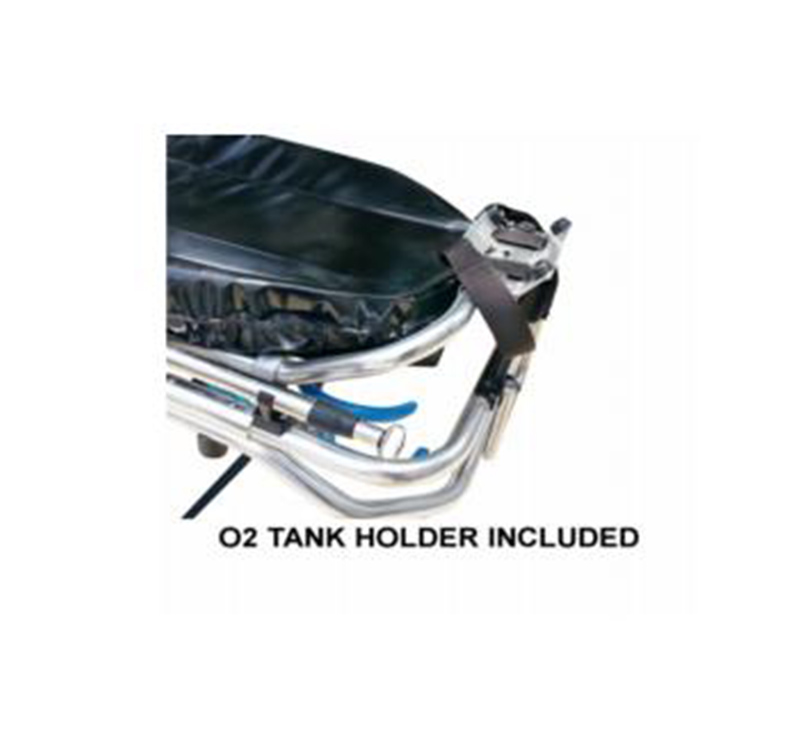

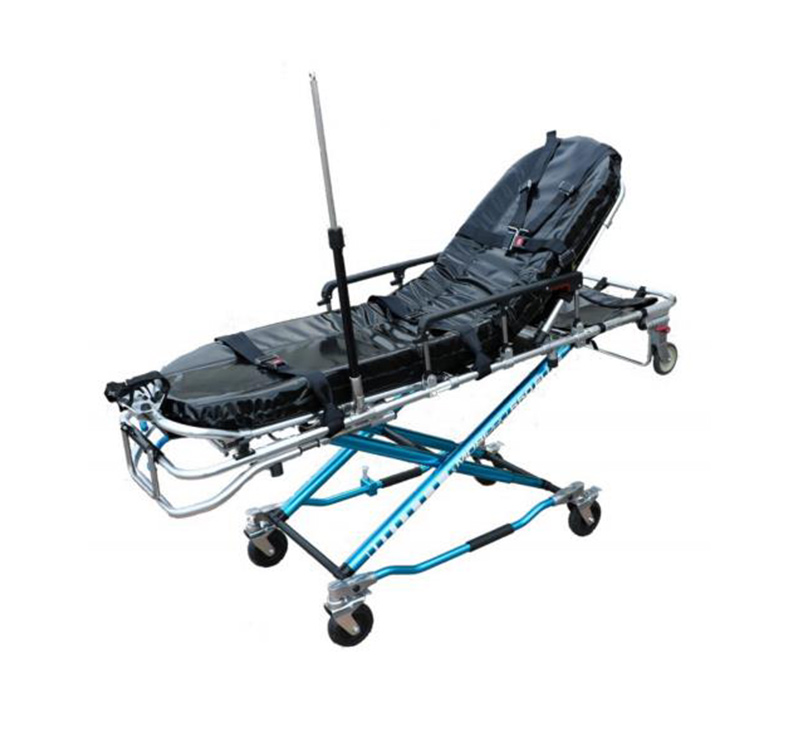

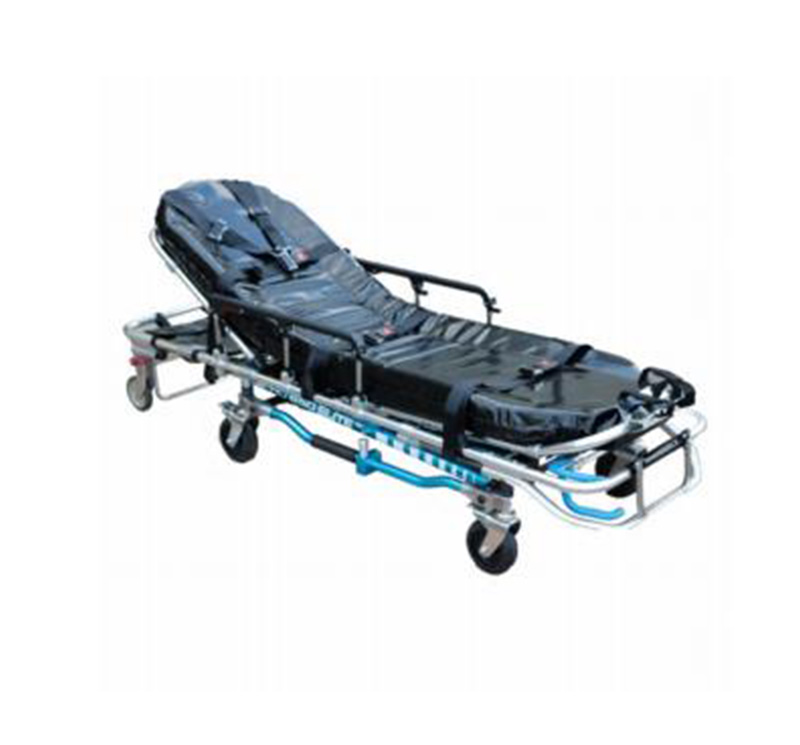

YA-AS15 Folding Manual Ambulance Stretcher Trolley

Features

- X-frame undercarriage is easily raised when loading

- When unloading, the safety U-bar will hold the stretcher on the ambulance until the operator releases it

- Breakaway head section

- Adjustable height

- The backrest can be adjusted from 0-75 deg by gas spring

- Swing-down side rails to protect patient when the transfer

- Only one person or two-person can raise and slide the stretcher on to the ambulance

- The stretcher can be locked by the fixing device when ti is in the ambulance

- It is made of high-strength aluminum alloy

- 150 mm wide rubber castors

- Used for ambulance, hospitals, emergency centers

Technical parameter

Model	YA-AS15
High position	2000 × 560 × 1000 mm (78.7" x 22" x 39.3")
Low position	2000 × 560 × 380 mm (78.7" x 22" x 15")
Maximum angle of the back	75°
Maximum angle of the Knee part	35°
Loading bearing	250 kg(550 Ibs)
N.W.	43 kg(94 Ibs)
Packing size	2020 × 690 × 440 mm (79.5" x 37.8" x 17.3")
G.W.	60 kg(132 Ibs)
