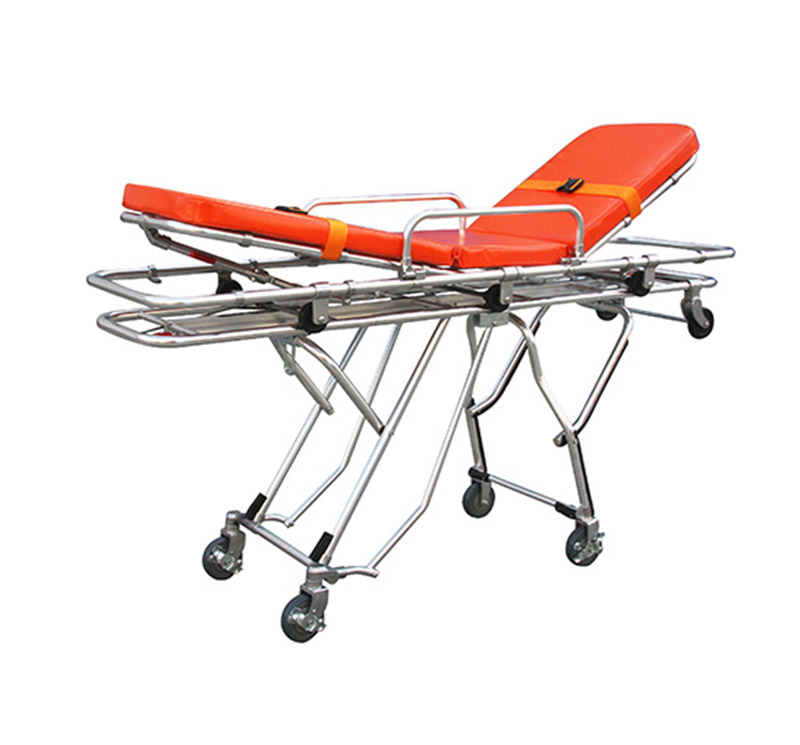

YA-AS03 Gurney Ambulance Stretcher

Share:

Model : YA-AS03

Overall size (High position): 1960 × 550 × 980 mm

Ideal Use : Ambulance, EMT, EMS

Material : Aluminum Alloy

Certificate : ISO/CE

  • Product Details

Main features

- This multifunctional automatic loading stretcher has varied heights,it's made of high-strength aluminum alloy thick-wall pipes.

- The surface of the bed table is a foam mattress covered with a waterproof material.

- Adjustable backrest for greater comfort of the sick and wounded: up to 75 º

- With safety lock; patient does not move inside the ambulance.

- Easily handled by one person.

- Folding legs controlled by handles on both sides of the stretcher.

- The stretcher can be locked by the fixing devices when on the ambulance car.

- Aluminum alloy frame, easy cleaning and sterilization.

-Support for IV stand included

Technical parameter

Model YA-AS03
Size (High position) 1960 × 550 × 980 mm
Size (Low position) 1960 × 550 × 380 mm
Back section adjustable 0 - 75°
Loading capacity 159 kg
Carton Size (1pc/carton) 1980 × 620 × 380 mm
N.W. 42 kg
G.W. 48 kg
