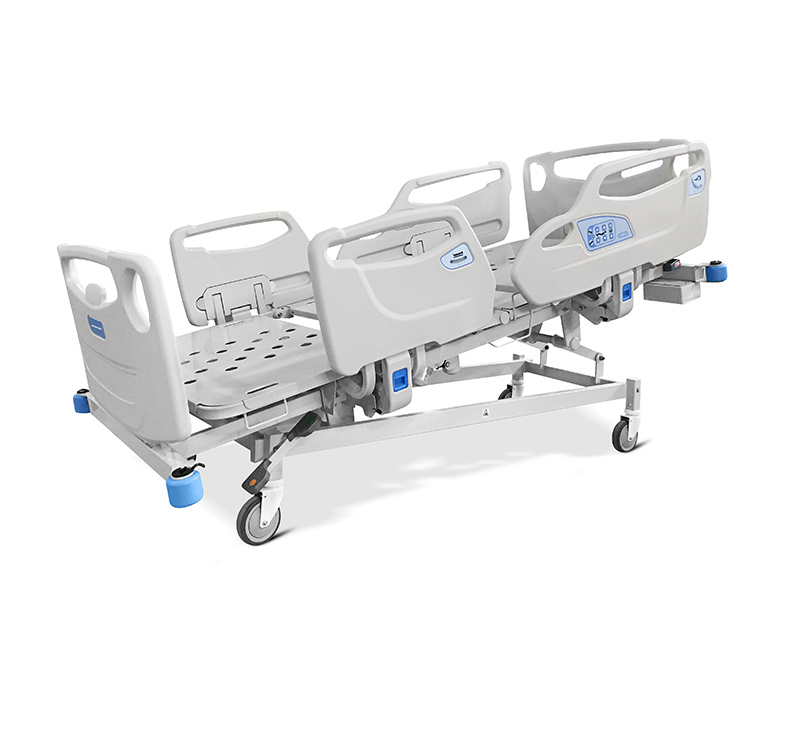

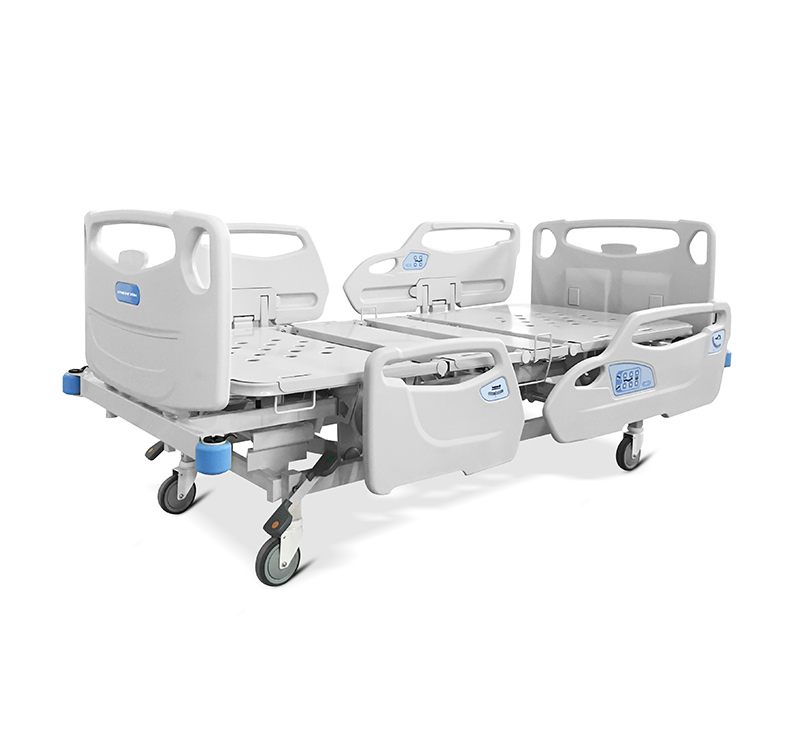

The YA-D5-13 ICU bed is compactly designed with an elegant appearance, easy to operate. Wide range height adjustment facilitates medical operation.
Main feature
- With embedded railing control, visible icons, with nurse control panel facing outside and limited button facing the patient.
- Central brake system is adopted with dual braking pedals on both sides for easy manipulation
- Bumper caster is located on four corners of the bed
- Manual CPR lever is located on both sides
- Angle indicator is achieved on the railing, especially the 30 degrees for back section adjustment is clearly marked for frequent use.
Technical parameter
| Model | YA-D5-13 |
| Size | 2230 × 1000 × 465 mm (87.7" x 39.3" x 18.3") |
| Bed surface | 1937*865 mm (76.2" x 34" ) |
| Backest adjustable | 0-70° |
| Footrest adjustable | 0-25° |
| Calf section | -15°-15° |
| Height adjustment | 465-765 mm (18.3" - 30.1" ) |
| Trendelenburg | 0-12° |
| Reverse trendelenburg | 0-12° |
| CPR function | Yes |
| Loading capacity | 230 kg (507 Ibs) |
