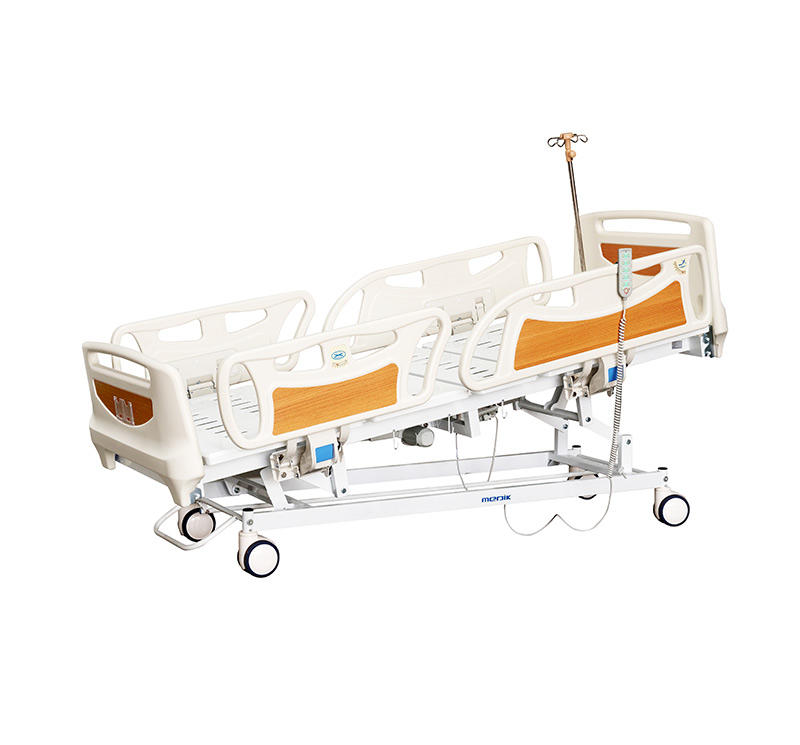

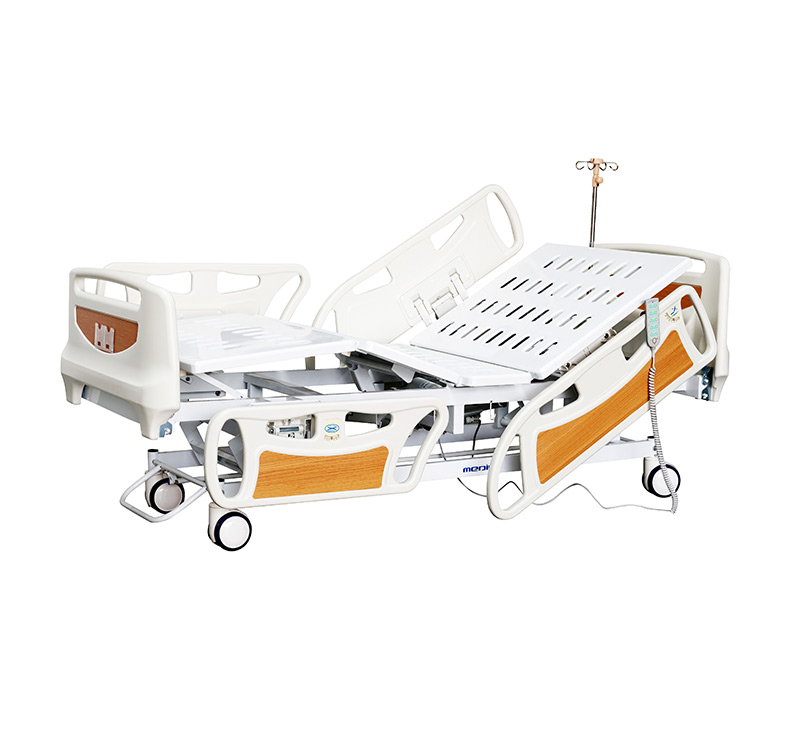

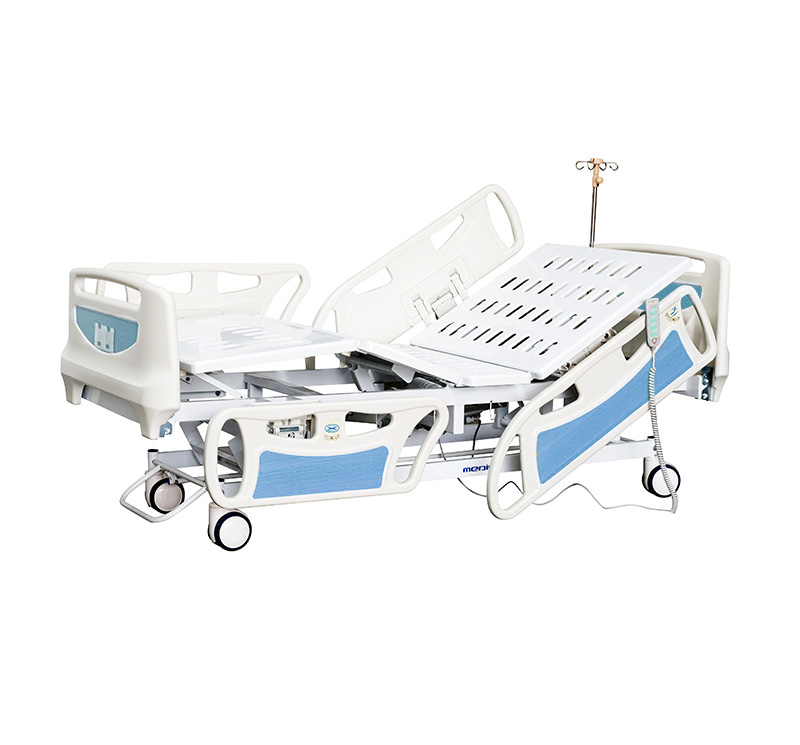

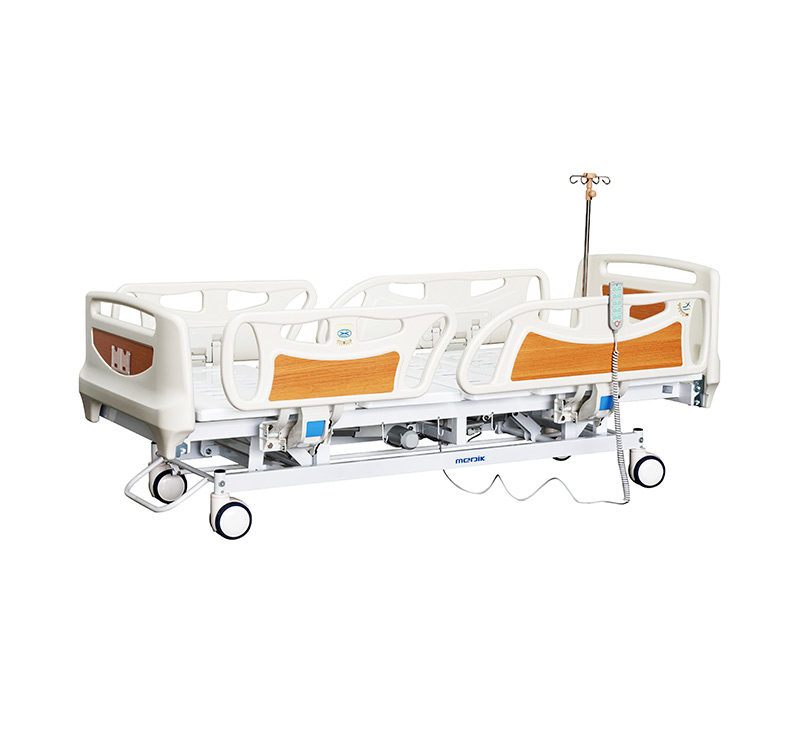

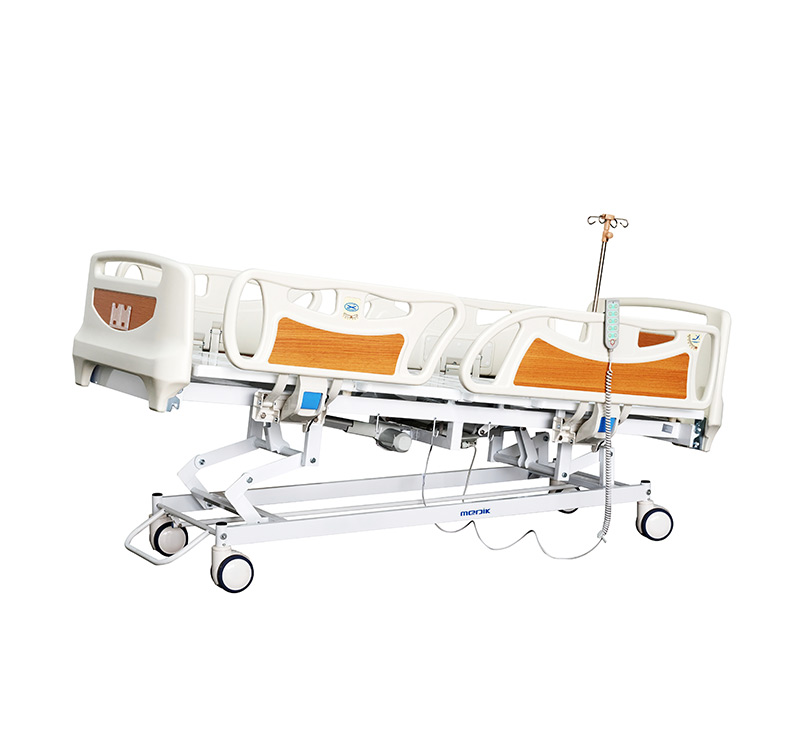

YA-D5-7 Power Hospital Electric Bed With CPR

Specification

- Bed Frame Electrophoresis and powder coating

- Bed platform Wholly molded cold steel sleeping platform

- Motor Quiet and robust electric actuators provide reliable operation

- Hand remote controller of all electrically operated functions and movements

- Handrails Four split side rail, drop down

- Head and Footboard ABS material, detachable

- Castors: Four silent duty wheels, two with brakes, φ125 mm

- Angle indicator With angle indicator embedded in the railing for back and trendenleburg adjustment(optional)

- Auto-counter function Auto-counter to provide the patient from sliding onto the foot end

- Mechanical CPR function Control by the CPR handles on both sides of bed to realize the CPR procedure in one step

Technical parameter

Model	YA-D5-7
Size (L*W*H)	2245 × 1060 × 500 mm (88.3" x 41.7" x 19.6")
Lying surface:	2045× 900 mm (80.5" x 35.4" )
High-Low:	500-780 mm (19.6" - 30.7" )
Back secticn adjustable	0° to 75°
Knee secticn adjustable	0° to 40°
Trendelenburg	0° to 12°
Reverse trendelenburg	0° to 12°
Loading Capacity	250 kg (551 Ibs)

Standard Accessories

- Head/Foot Board 2 pieces

- Side Rails 4 pieces

- Bed Frame 1 set

- Bed Boards 4 pieces

- Casters 4 pieces

- IV Pole Holder 4 pieces

- IV Pole 1 piece

- Drainage Bag Holders 2 pieces

Hospital Bed Details

Remote nurse control and electric CPR included.	Degree indicator, easy for position indication.	Detachable ABS head/foot board for emergency application.
4 pcs Dia125 mm castors with central locking.	Manual CPR in each side of back board.
