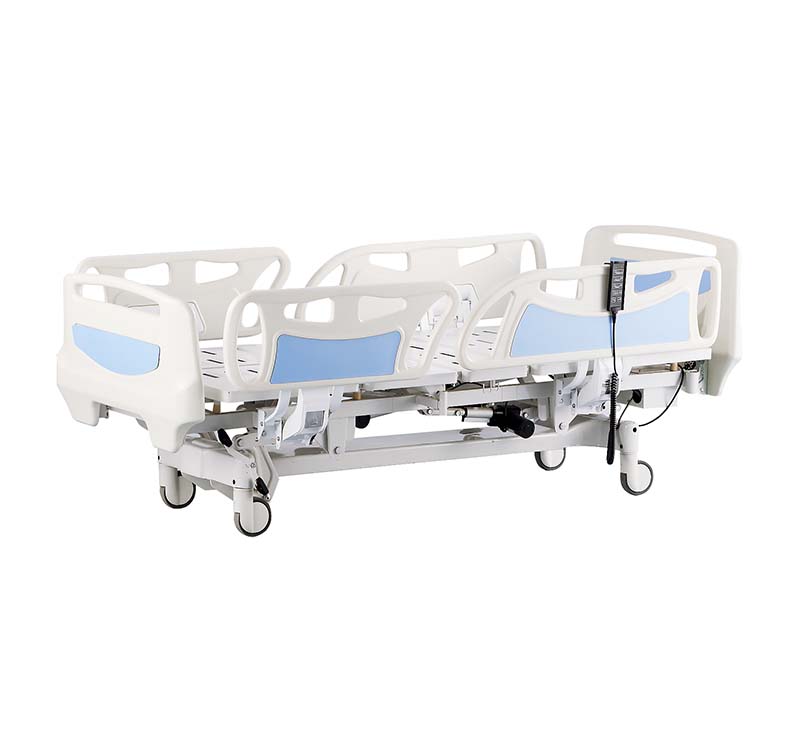

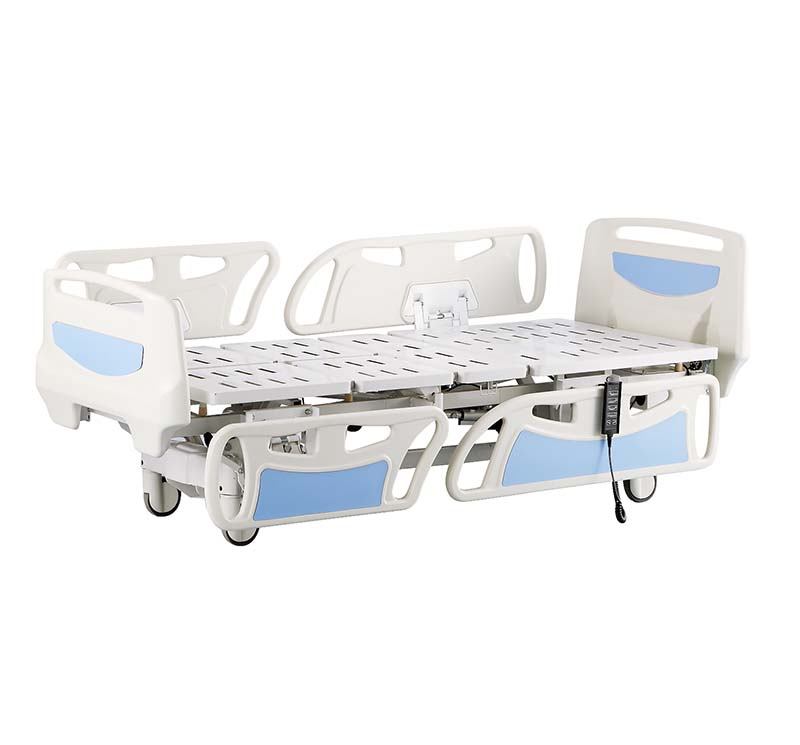

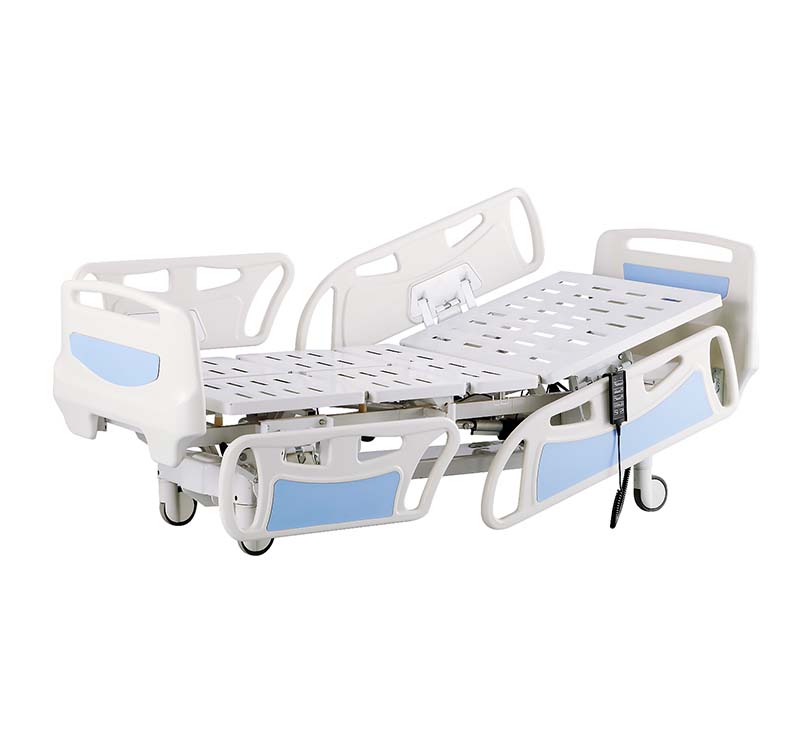

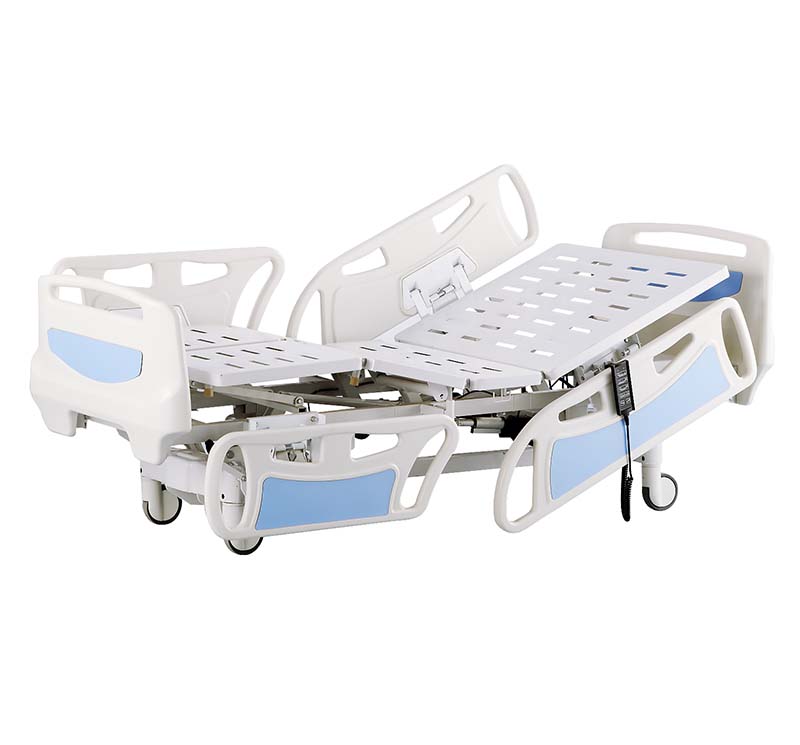

YA-D5-6 Electric Hospital Room Bed With Railing Control

Specification

- Bed Frame electrophoresis and powder coating

- Bed platform removable ABS platform

- Motor Quiet and robust electric actuators provide reliable operation

- Build-in controller can control all electrically operated functions and movements

- Handrails 4 ABS side rails with Tuck-away model, collapsible below the bed surface

- Head and Footboard ABS material, detachable

- Castors central brake system with a wheel diameter of 125 mm

- Controller Hand remote control

- Patient control inner constructed in side rails

- Nurse control hanging on the footboard

- Angle indicator With angle indicator embedded in the railing for back and Trendelenburg adjustment(optional)

- Auto-counter function Auto-counter to provide the patient from sliding onto foot end

- Electric CPR function Control by one single button on the side rails

Technical features

Model	YA-D5-6
Size	2200 × 1060 × 510 mm (86.6" x 41.7" x 20")
Recommended mattress size	1960*900 mm (77.1" x 34.4" )
High-Low:	510-800 mm (20" - 31.4" )
Back section adjustable	0° to 75°
Knee section adjustable	0° to 40°
Trendelenburg	0° to 12°
Reverse trendelenburg	0° to 12°
Safe working load	225 kg (496 Ibs)

Standard Accessories

- Head/Foot Board 2 pieces

- Side Rails 4 pieces

- Bed Frame 1 set

- Bed Boards 4 pieces

- Casters 4 pieces

- IV Pole Holder 4 pieces

- IV Pole 1 piece

- Drainage Bag Holders 2 pieces
