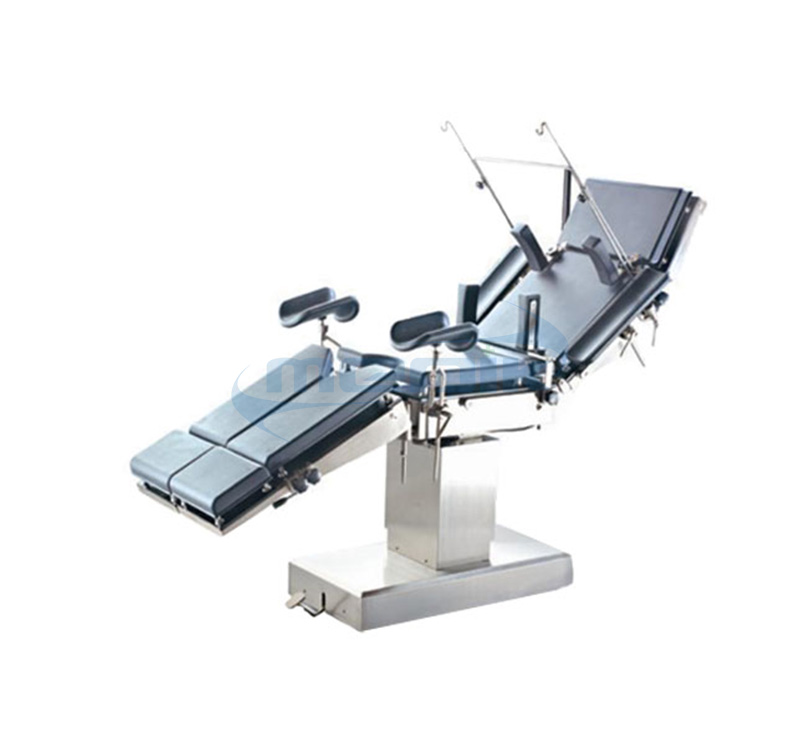

YA-06E Radiolucent Operating Room Table

Main features

- Contours to virtually all patient postures with a five-section tabletop.

- Accommodates virtually all patients with generous height ranges.

- Wire controller for different movements and Column control panel with locking function for movements.

- Table top height and backrest adjustment, lateral tilts, Trendelenburg and reverse Trendelenburg tilts are performed thanks to wire hand controller.

- The head rest segment and one-piece leg rest segment adjustment is manually performed by locking gas springs.

- Divided, two parts leg rest segments are adjusted by means of gear transmission.

- The structure is made of SUS304 mirror stainless steel.

- The table base is controlled by a foot lever.

- The antistatic, seamless mattresses are removable from the segments of the table top and resistant to disinfecting agents.

Technical parameter

Model	YA-06E
Overall size	2150 × 500 × 750-1000 mm
HI-LOW	750 mm-1000 mm
Head board fold upward and fold downward	≥30°/≥90
Back board fold upwardand fold downward	≥45°/≥15°
Leg board fold downward and fold outward	≥90°/≥90°
Trendelenburg and reverse-trendelenburg	≥25°
Left and right tilting angle	≥15°
Loading capacity	200 kgs
Waist board lifting	≥110 mm
Power	AC220V 50HZ        Input power:300VA
Packing	148 × 76 × 95cm=1.1M3   G.W.:280 kgs
