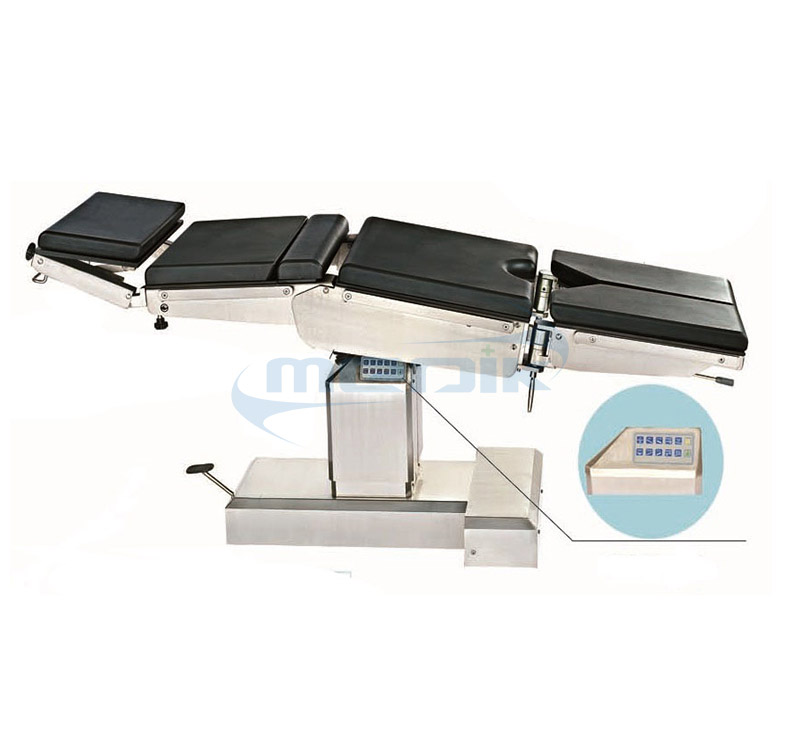

YA-07E Orthopedic Surgery Table

Main feature

- Mechanical system for waist board lifting of electric operating table

- AISI304 stainless steel structure and chassis

- Polyurethane shaped mattress which is easy to remove and clean

- With lateral control system incoporated to side column

- Four 125 mm wheels for moving the OT table, which are with central braking system

- With movements of horizontal and longitudinal for C-arm photography examination

- With four 125 mm wheels to move the table, which are with twin-wheel central braking system

-Eight independent motors for movements of HI-LO, back section, Trendelenburg and ReverseTrendelenburg, Lateral tilting function, Horizontal and longitudinal movement (For C-arm examination), Leg section(separated left or right leg section, also left and right leg section as one united set), auto-contour of operating table

- Gas spring for headrest movement

- Mechanism system for waist board lifting

- Leg section can be removable, then connected to orthopedic traction shelf directly

- With lateral control system incoporated to side column, which is with blocking system for movements

Technical parameter

Model	YA-07E
Overall size	2180 × 555 × 750-1000 mm
HI-LOW	750 mm-1000 mm
Head board fold upward and fold downward	≥30°/≥90
Back board fold upwardand fold downward	≥70°/≥15°
Leg board fold downward and fold outward	≥90°/≥90°
Trendelenburg and reverse-trendelenburg	≥25°
Left and right tilting angle	≥20°
Loading capacity	235 kgs
Waist board lifting	≥110 mm
Horizontal and longitudinal movement	≥350 mm
Power	AC220V 50HZ/110V 60HZ Input power: 150VA
Packing	144 × 78 × 90cm=1.01M3     G.W.: 350 kgs

Standard accessory

1 pair armrests

1 pair waist support holder

1 pair shoulder supporter

1 pair leg holders

1pc anesthesia screen

1 pair footrests

Hand controller
