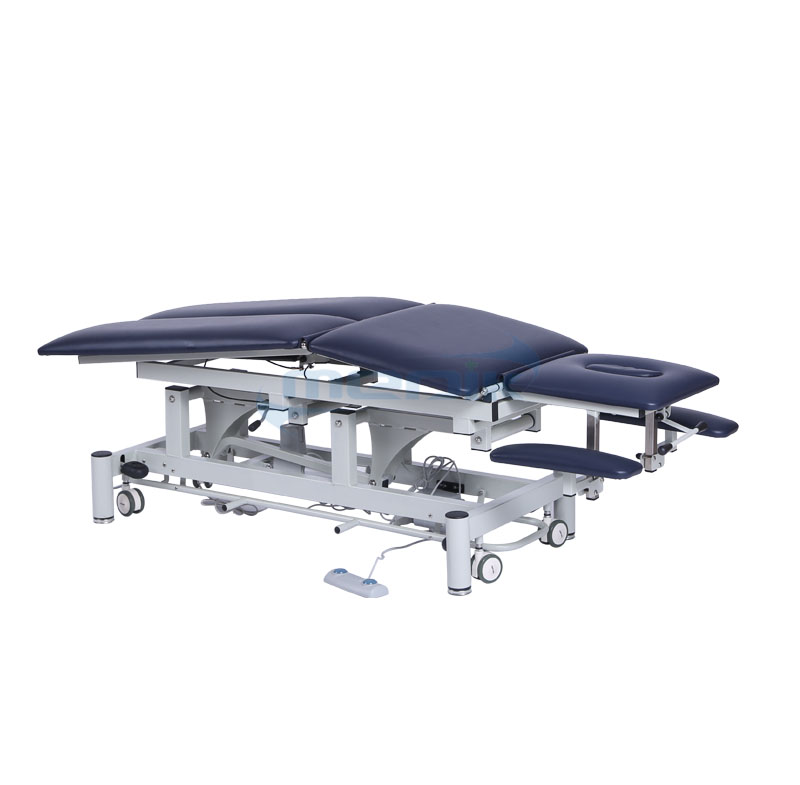

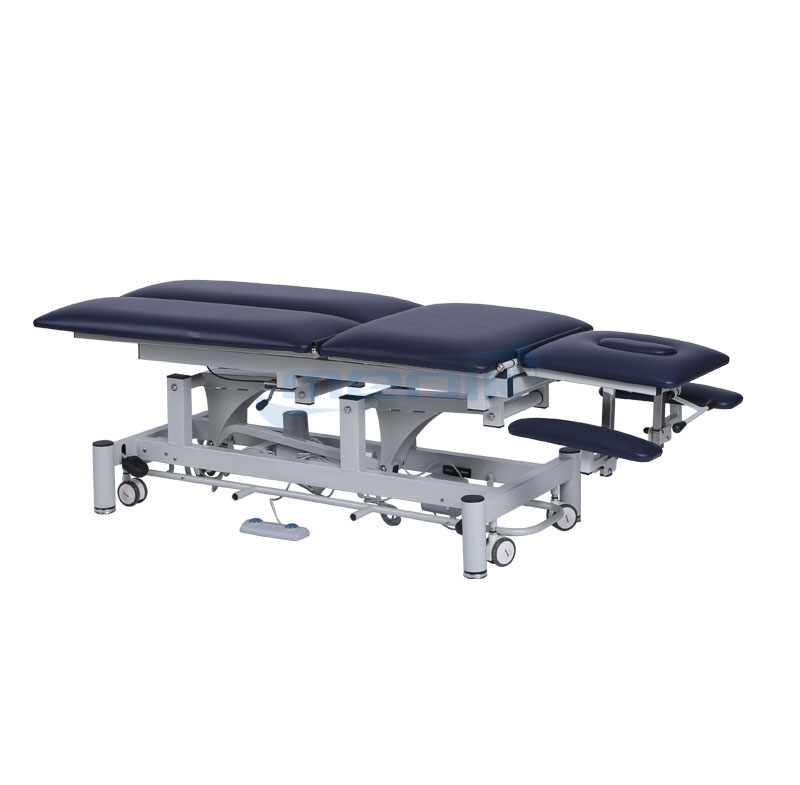

YA-ET304D Electric Medical Treatment Couch Exam Table

Model: YA-ET304D

Overall Size: 1950 × 660 × 500-950 mm

Load Capacity: 225 kg

Next Product Inquire Now

Product Details

Description:

Medical treatment couch Using Specially designed a split-leg at backrest for more strong function.

Medical treatment couch provides amazing functional and stability, with widest choice for user requirements.

This 6-section medical treatment couch is the complete table offering all features available in modern table design.Designed a stable & movable arm rests.

Technical parameters:

Model	YA-ET304D
Overall size (LWH)	1950 × 660 × 500-950 mm
Backrest Length	96 0m m
Middle Section Length	51 0m m
Head Section Length	43 0m m
Load capacity	225 kg
Castor	75 mm
Foam Thickness	5 0m m
Foam Density	36g/m2
Packing	186 0 * 72 0 * 56 0m m
N.W./G.W.	70/83 kgs
20GP/40GP	36/72pcs
Adjustable Height	50 0 - 95 0m m
Head section adjustable	-40° to+45°
Back section adjustable	0° to +70°
Middle section adjustable	0° to + 25°

Standard Specification:

Two electric motors, standard supports "Timotion" brands for Hi-Lo & middle lifting.

The frame feet (*4) make round shape, avoid to hit people.

Hospital examination bed add more material ad better designed for some frame parts.

Adjustable backrest (Split-leg) featuring single gas strut

Round tube table leg and new design for triangular frame parts.

Fire/stain/mildew/oil/water/wear resistant Med PVC available in 9 kinds of colors.

Size picture:

YA-ET304D Electric Medical Treatment Couch Exam Table
