Home / Products / Exam Table
Model:
YA-ET303D
Overall Size: 1950 × 660 × 480-940 mm
Load Capacity: 225 kg
Description:

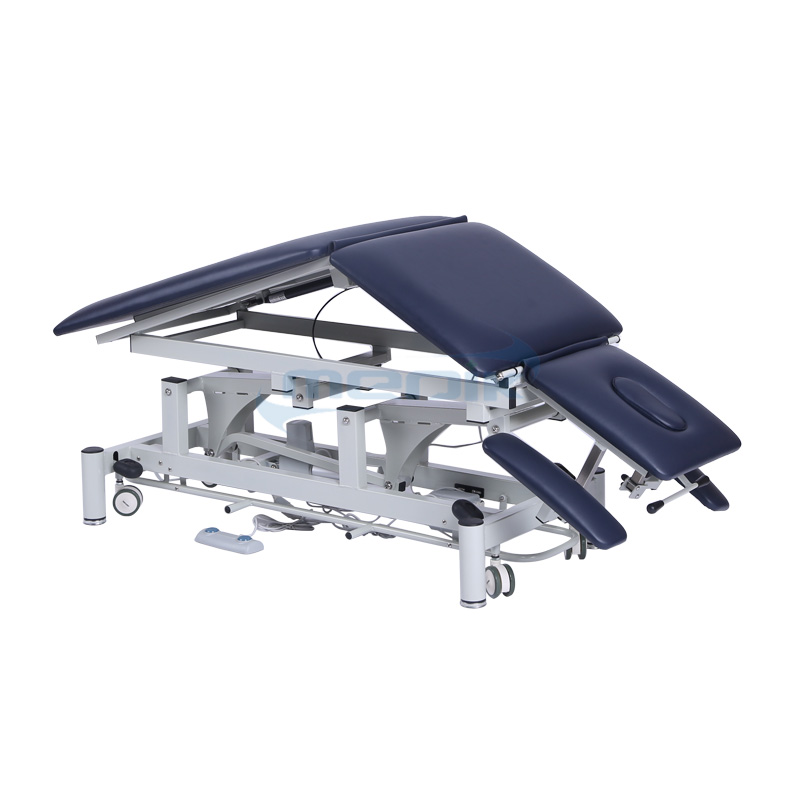

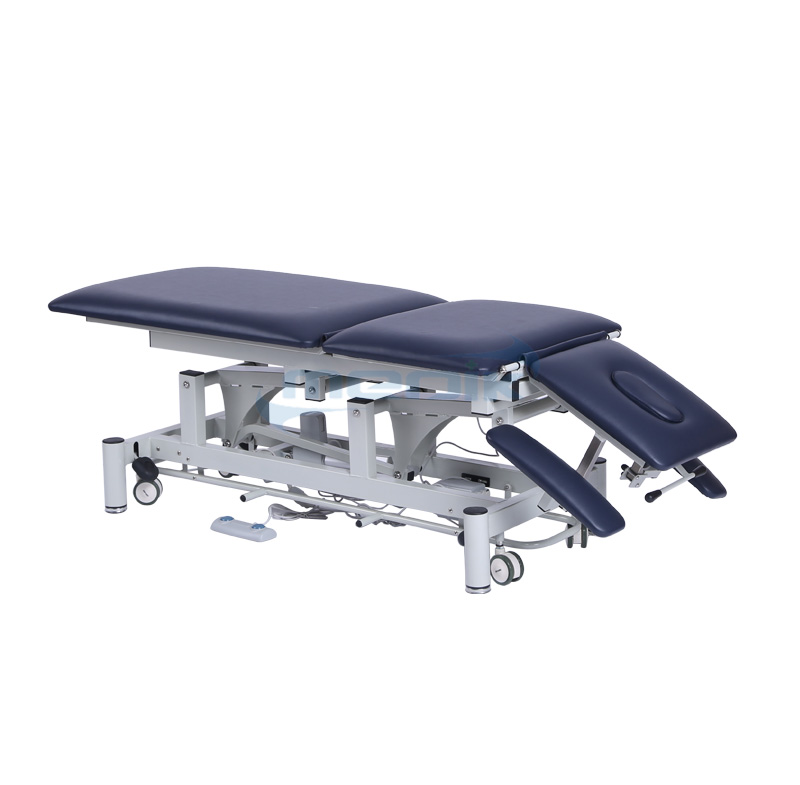

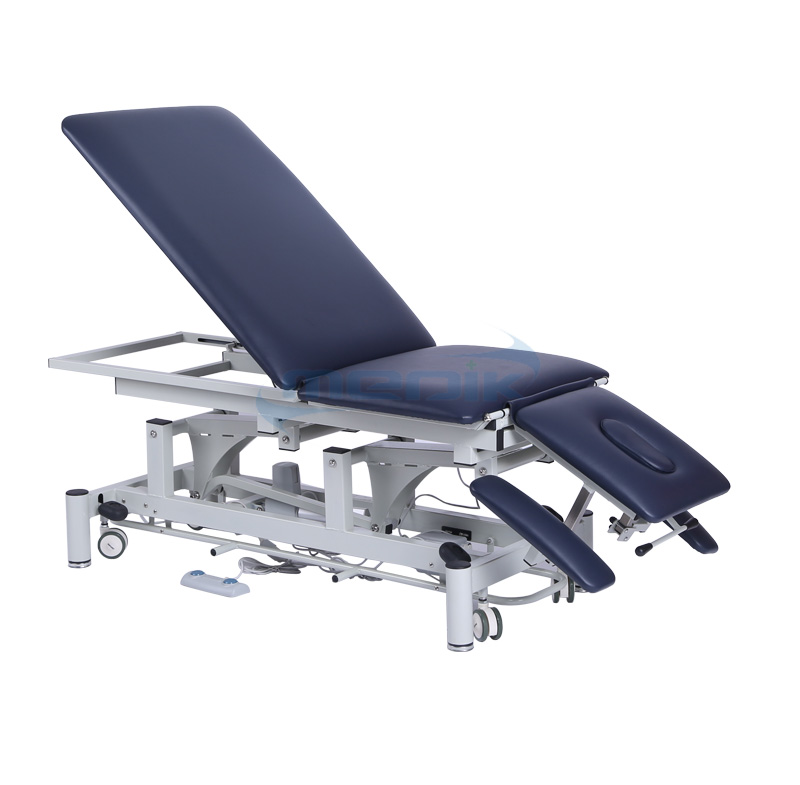

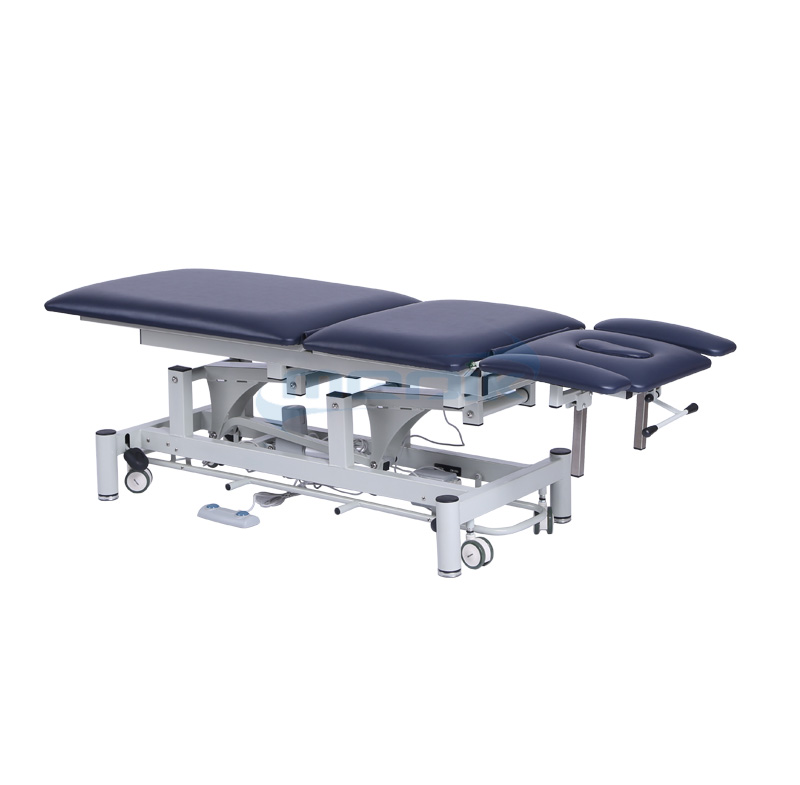

YA-ET303D medical exam table has a very strong table designed to withstand constant heavy use with minimal maintenance.
This Hospital examination table addresses the requirements of a wide range of manual handling issues to benefit both patient and doctor.
Technical parameters:
|
Model |
YA-ET30 3 D |
|
Overall size (L*W*H) |
1950 × 660 × 480-940 mm |
|
Backrest Length |
96 0m m |
|
Middle Section Length |
51 0m m |
|
Head Section Length |
43 0m m |
|
Load capacity |
225 kg |
|
Castors |
75 mm |
|
Foam Thickness |
5 0m m |
|
Foam Density |
36g/m2 |
|
Packing |
186 0 * 72 0 * 59 0m m |
|
N.W./G.W. |
70/83 kgs |
|
20GP/40GP |
36/72pcs |
|
Adjustable Height |
48 0 - 94 0m m |
|
Head section adjustable |
-20° to+55° |
|
Back section adjustable |
0° to +80° |
Standard Specification:
Two electric motors, standard supports "Timotion" brands for Hi-Lo & middle lifting.
Hospital examination table add more material ad better designed for some frame parts.
The frame feet (*4) make round shape, avoid to hit people.
Lift for height variation by footbar system and middle section by foot switch.
Fire/stain/mildew/oil/water/wear resistant Med PVC available in 9 kinds of colors.
