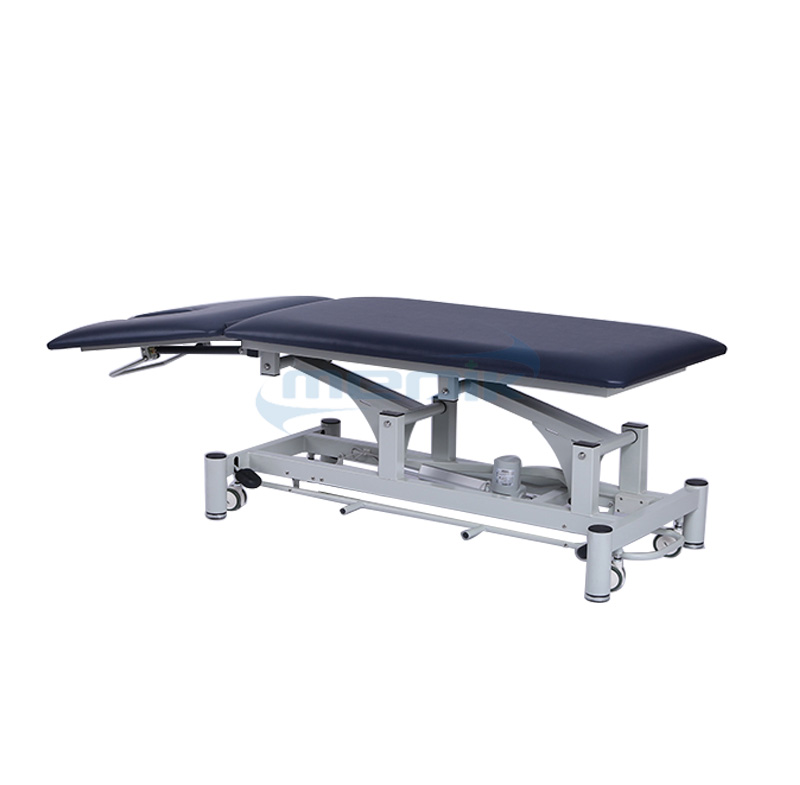

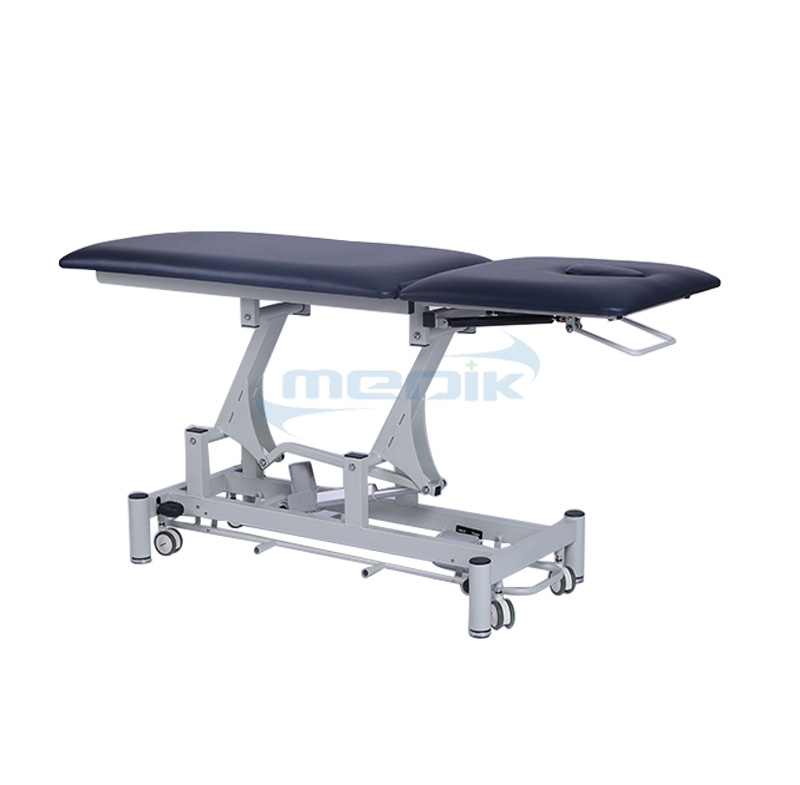

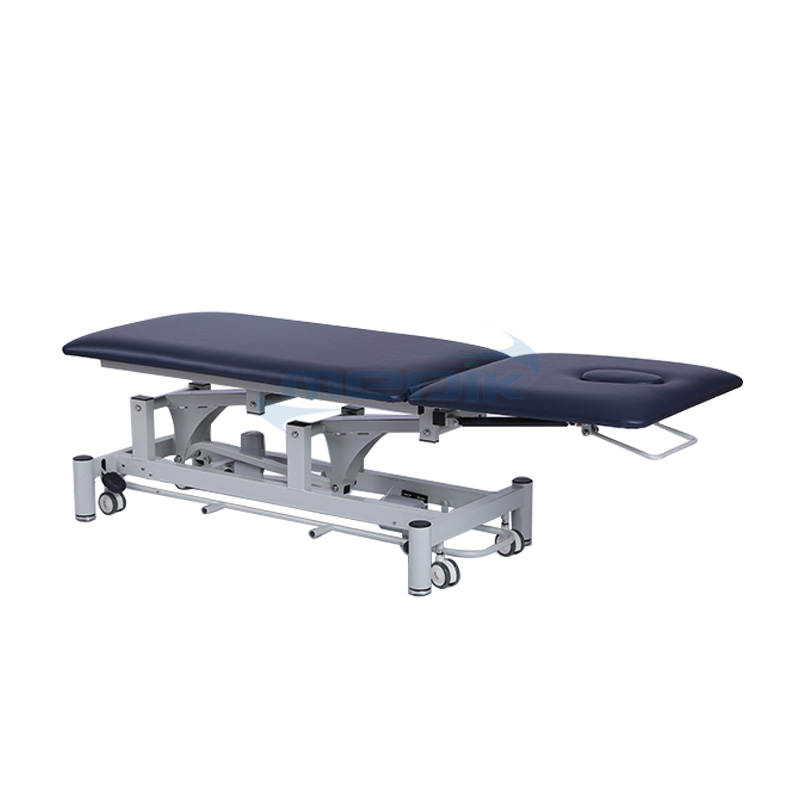

YA-ET301D Electric Hospital Examination Table

Model: YA-ET301D

Overall Size: 1950 × 660 × 470-920 mm

Load Capacity: 225 kg

Product Details

Description:

Electric examination table has a very strong table designed to withstand constant heavy use with minimal maintenance.Examination table is designed for both the hospital and private practice. It offers superior comfort for examination, therapy, massage and medical gymnastics.

Technical parameters:

Model	YA-ET30 1 D
Overall size (LWH)	1950 × 660 × 470-920 mm
Back Section Length	67 0m m
Body Section Length	123 0m m
Load capacity	225 kg
Foam Thickness	5 0m m
Foam Density	36g/m2
Packing	190 0* 72 0* 56 0m m (Heavy carton)
N.W./G.W.	65/78 kgs
20GP/40GP	32/68pcs
Adjustable Height	47 0 - 92 0m m
Backrest adjustable angle	-20°. to +75°

Standard Specification:

One electric motor, standard supports "Timotion" brand for Hi-Lo function.

The frame feet (*4) make round shape, avoid to hit people.

Add more material make better designed for some frame parts.

Retractable castors 75 mm for excellent mobility and safety.

Electric treatment table make a new design for triangular parts.

Fire/stain/mildew/oil/water/wear resistant Med PVC available in 9 kinds of colors.

Size picture:

YA-ET301D Electric Hospital Examination Table
