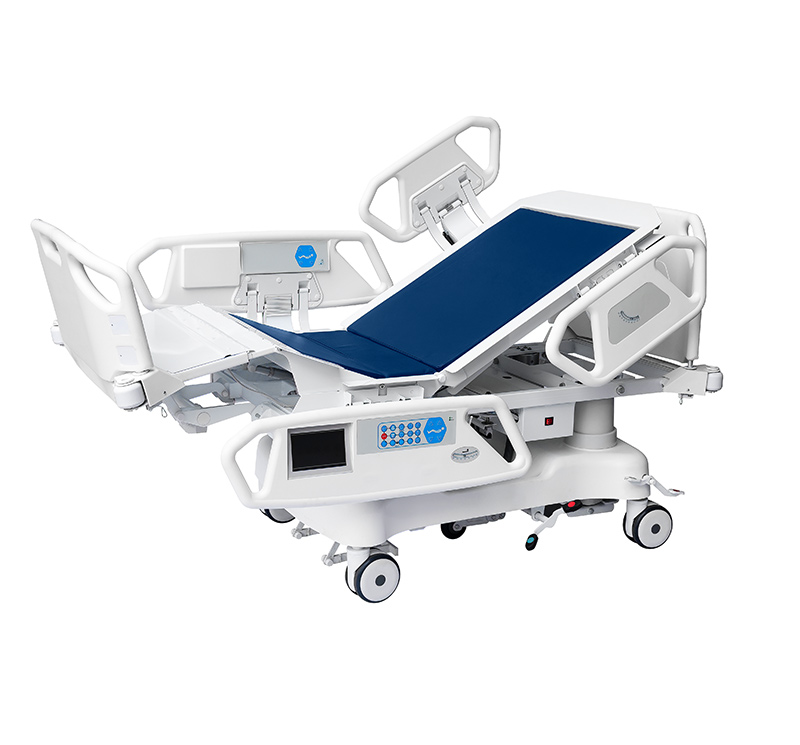

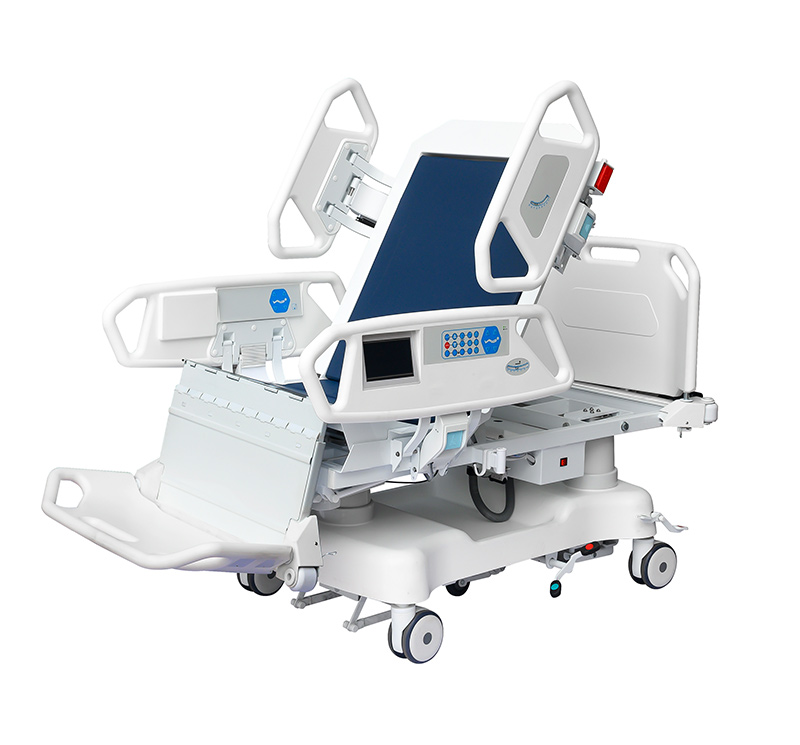

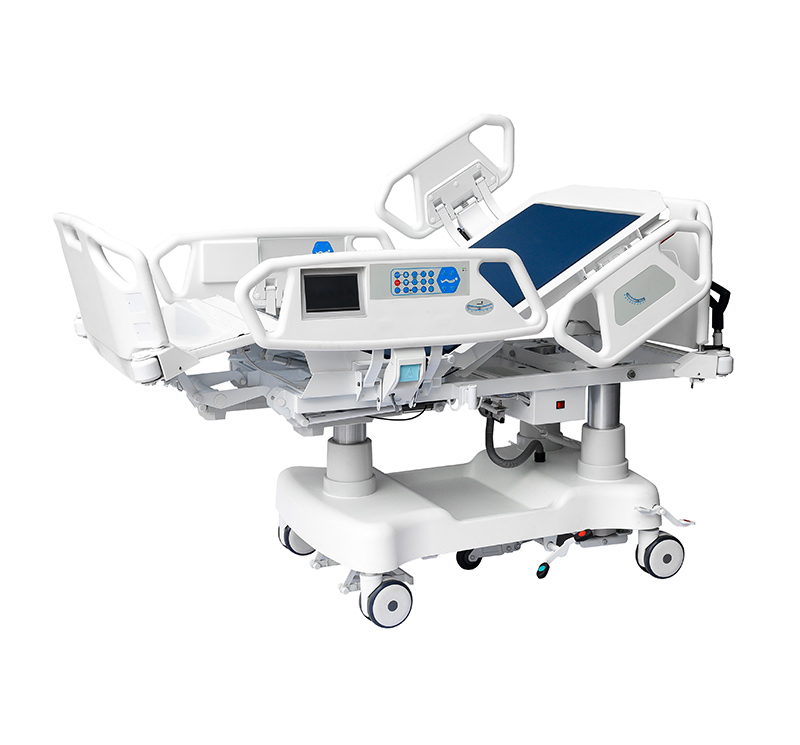

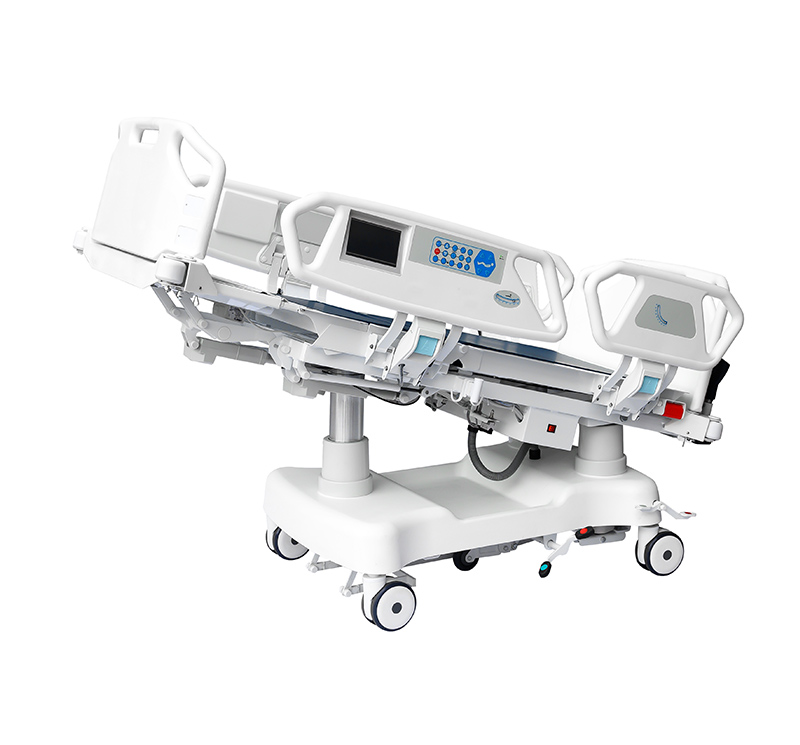

YA-D8-2 Intensive Care Hospital Bed

YA-D8-2 three-column bed responds to the evolving needs of caregivers and patients. More than just a bed, the YA-D8-2 bed is a treatment device that can better serve hospitals and ICU rooms.

YA-D8-2 three-column bed with left&right tilting is designed to reduce the incidence of bedsores and improve the pulmonary.

Main Feature

- Multiple functions can be achieved with this 3 column bed

- The left and right tilt function can be realized by the column

- One button total chair position is a special feature of this bed

- X-ray translucent back section

- Fifth wheel for direction

- Electric CPR and manual CPR on both sides

- Angle Indicator for Backrest & Trendelenburg & Rev. Trend.

- Weighing scale system (option)

Technical parameters

Model	YA-D8-2
Overall size	2150 × 1010 × 675 mm
Bed Extending	20 0 mm
HI-LOW	675-900 mm
Backrest adjustable	0-65°±3°
Footrest adjustable	0-25°±5°
Trendelenburg	0-12°±1°
Reverse-Trendelenburg	0-12°±1°
Tilt left	0-10°±1°
Tilt right	0-10°±1°
Castors	Dia 125 mm
Loading capacity	230 kg
