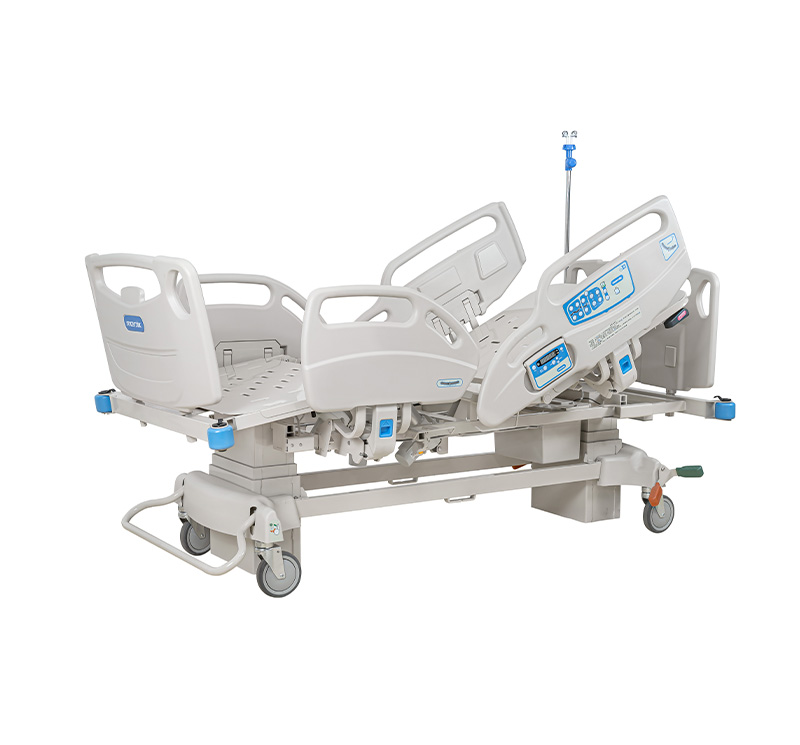

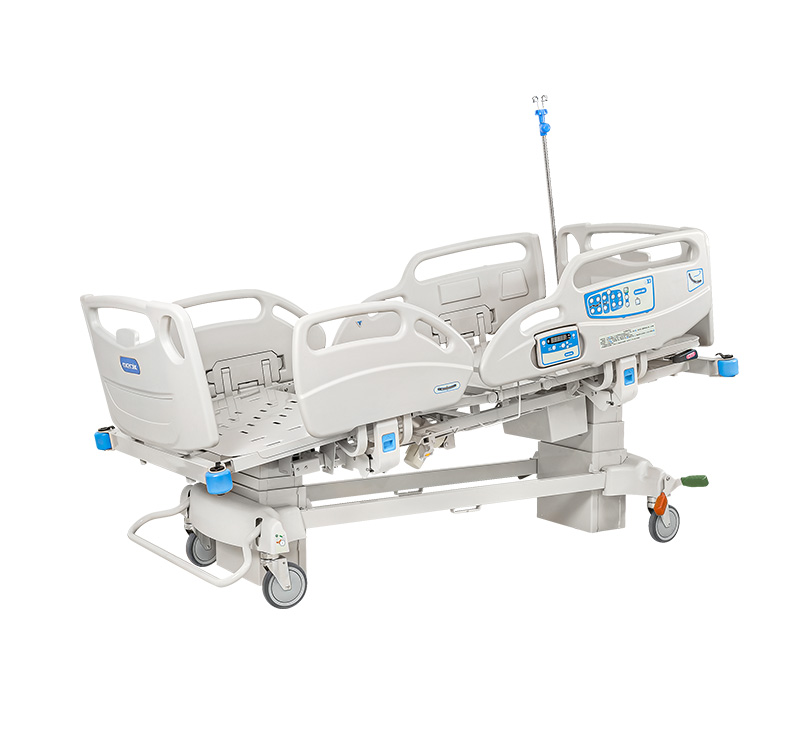

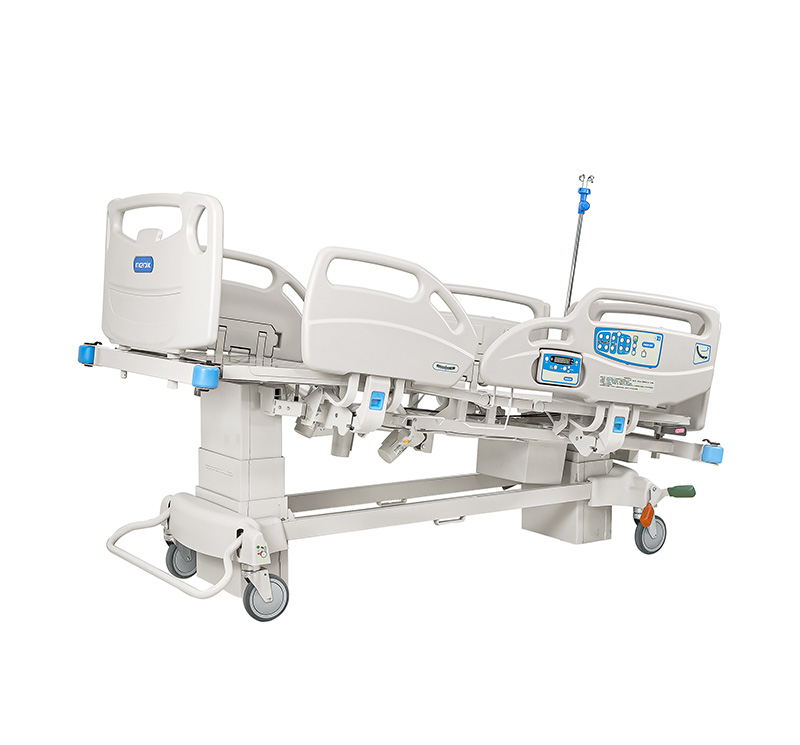

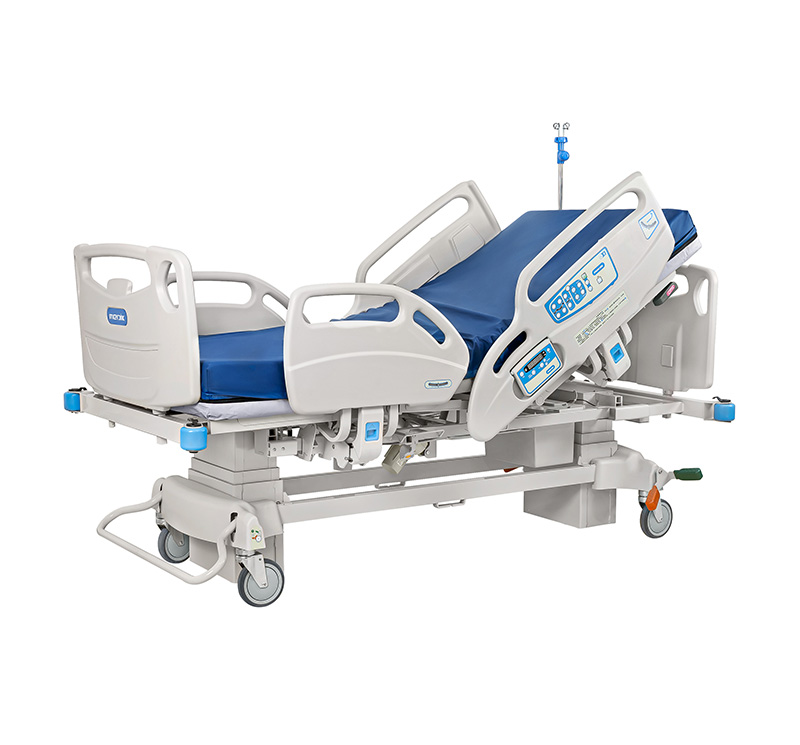

YA-D6-1 Electric Long Term Care Hospital Beds

YA-D6-1 is MEDIK's new generation ICU bed. Its unique and stable double-column structure, excellent bed position adjustment performance and simple, modern appearance bring new choices to the medical care industry, with a variety of one-button operations and humanized designs such as alarms can bring a safer and more convenient care process.

Main features

- Stable double-column structure

- Four-section MS perforated platform

- Removable ABS head and foot panel

- Electric and manual CPR

- Auto-Counter

- One-button chair position

- One button lying flat position

- Tilt CPR

- Individual locking function for every set of button

- Warning light when the bed is not in the lowest position

- Castor with no brake alarm

- Battery backup

- Night light

- Four provisions for IV pole

Technical parameter

Model	YA-D6-1
Overall size	2150 × 1050 × 500 mm
Lying surface size	1950*860 mm
Height adjustment	500-900 mm
Back section	0-70°±5°
Knee section	0-33°±3°
Foot section up/down	+10°~-18°
Trendelenburg	0-15°±2°
Revere- Trendelenburg	0-15°±2°
Bed surface extension, manually	0-100 mm
Safe working load	230 kg
Castor	Dia 125 mm
