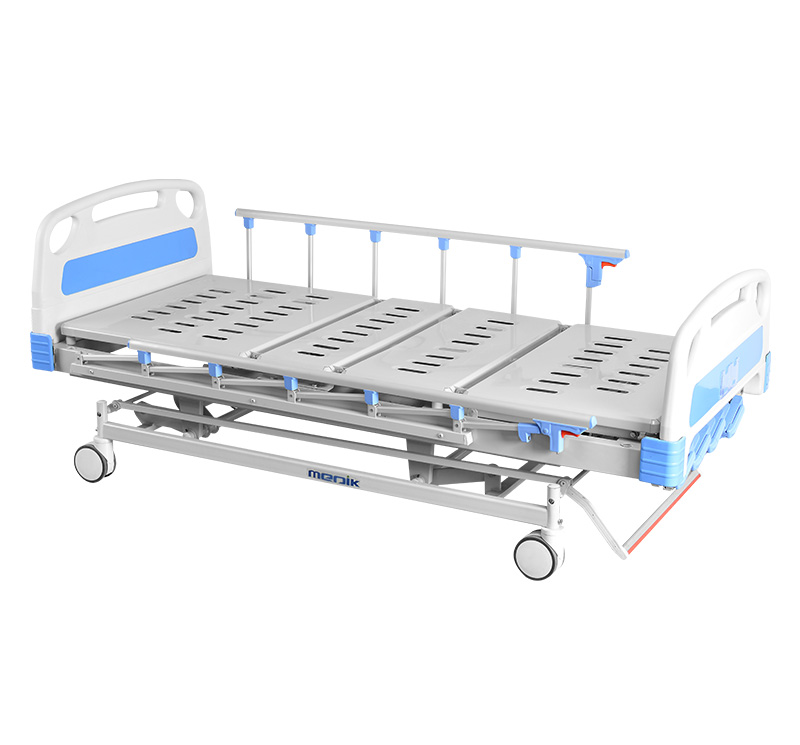

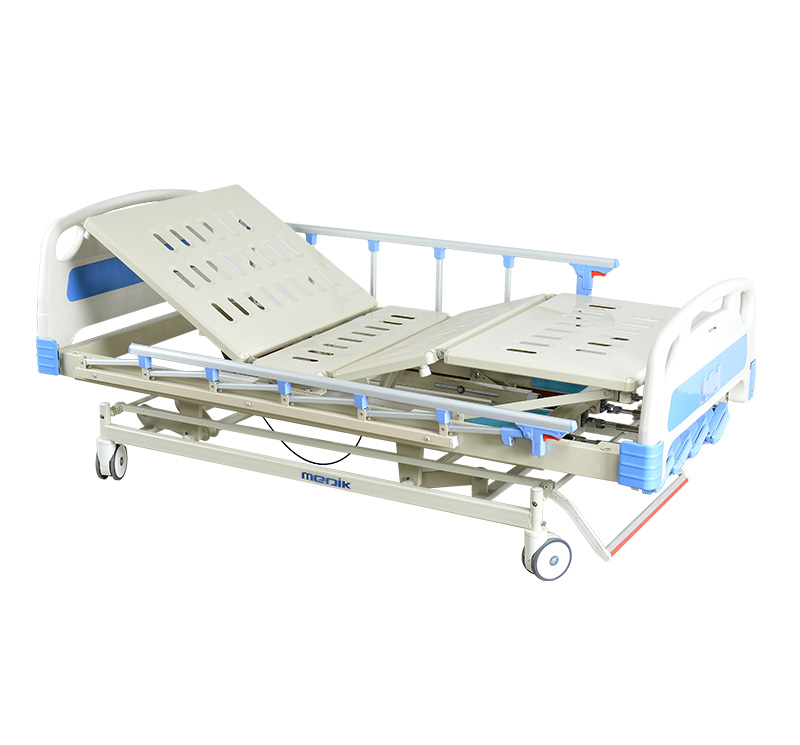

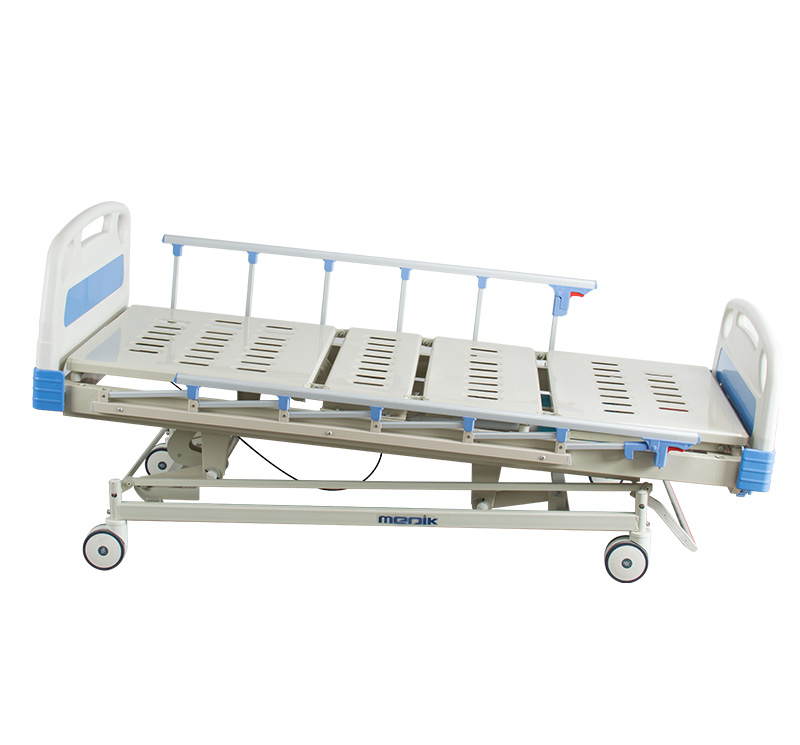

YA-H5-3 Manual hospital ICU bed With CPR Function

The YA-H5-3 manual hospital beds are designed to provide the quality of   construction, simplicity of use and safety.It features a wide range of adjustability and makes it easy to patient care. The YA-H5-3 manual bed are your best value options for better caring to improve health condition.

Main features

- ABS head and footboard with holes for moving the bed easily

- Bumper castors on 4 corners for protection

- 2 Aluminum alloy side rails, collapsible(Fold down by press the red button)

- Gas spring for the back section adjustment and CPR function

- Castors: with the central braking system and Cranks for movements

- Telescopic I.V. pole with adjustable height

- Drainage hooks at the side of the bed

Technical parameters

Model	YA-H5-3
Overall size (L*W*H)	2160 × 960 × 500 mm (85" x 37.7" x 19.6")
Backrest adjustable	0-75°±5°
Footrest adjustable	0-40°±5°
HI-LOW	500-750 mm (19.6" - 29.5" )
Trendelenburg	0-12°
Reverse-Trendelenburg	0-12°
Castors	Dia 125 mm ( 5" )
Loading capacity	250 kg (500 Ibs)
