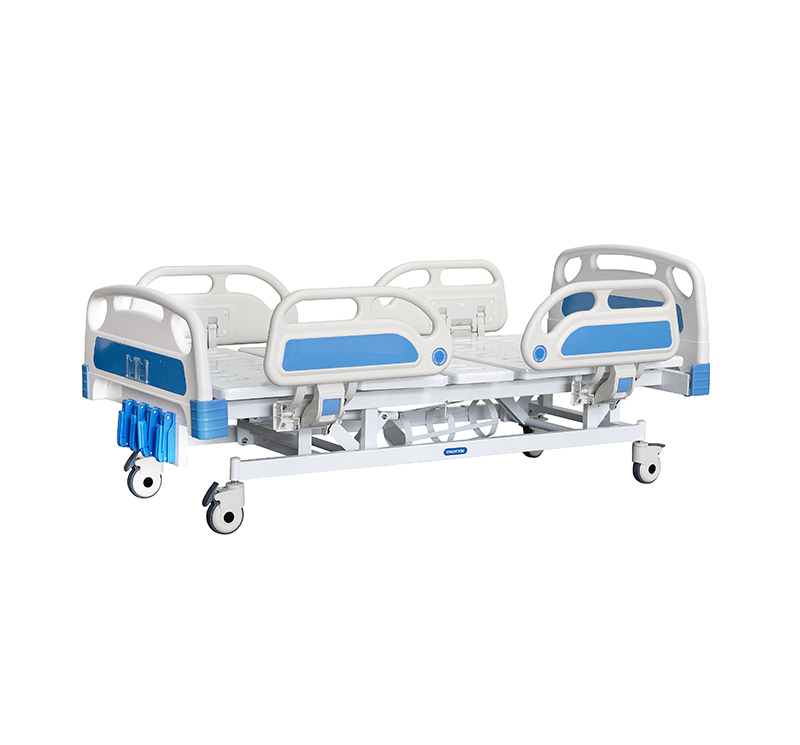

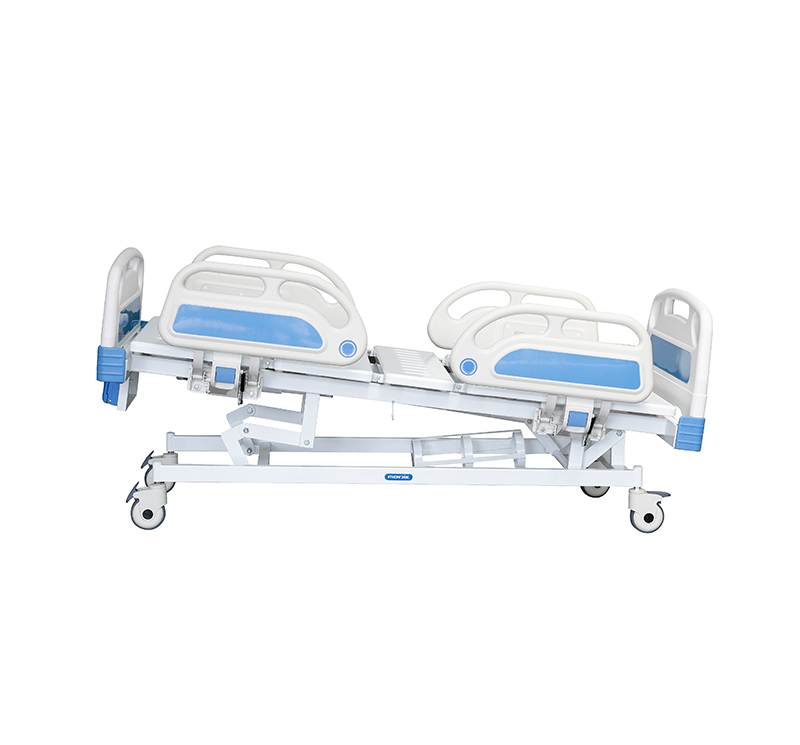

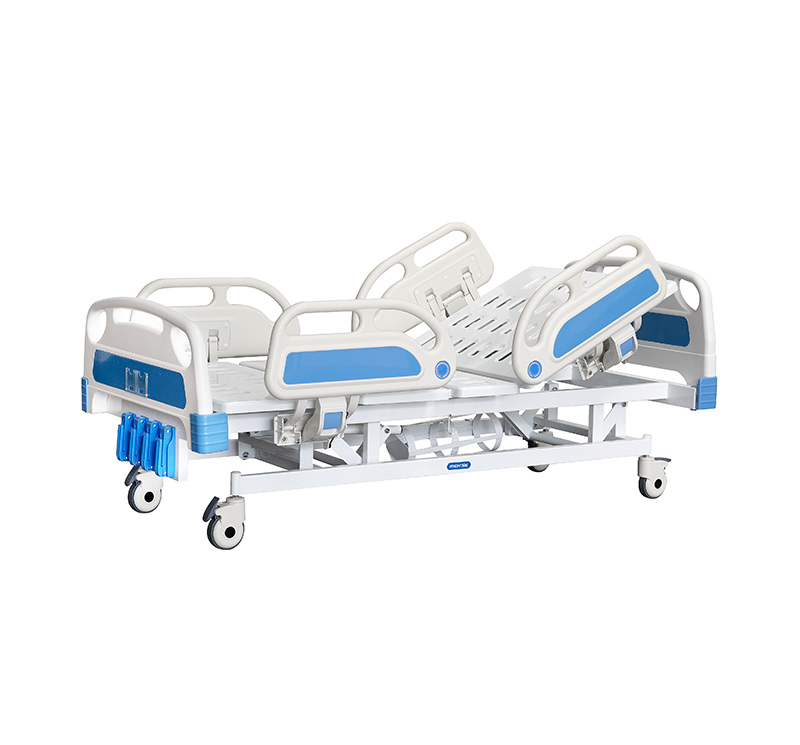

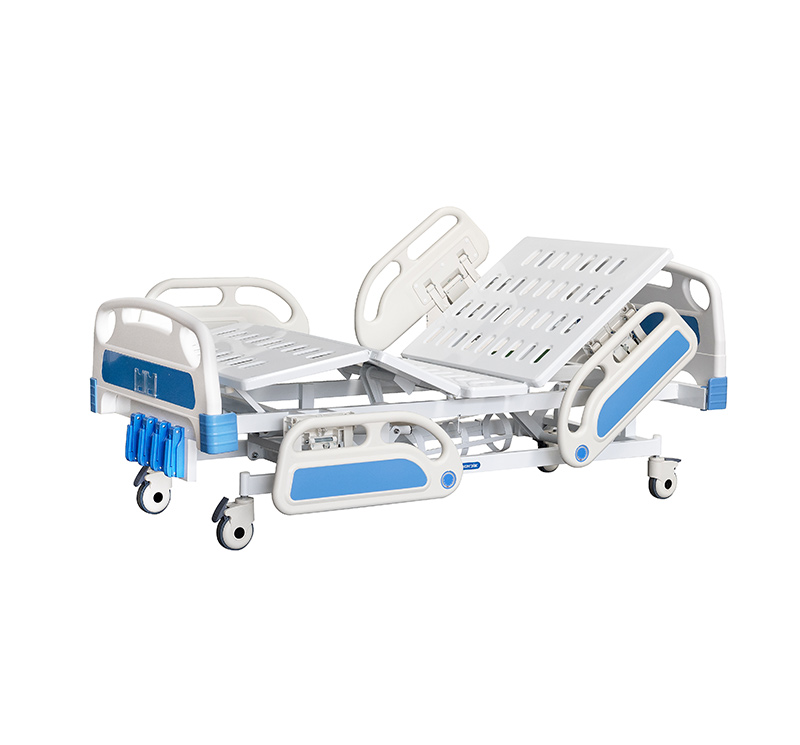

YA-M5-6 Five Function Maunal Adjustable Medical Bed

The YA-M5-6 is a 5 functional manual hospital bed with an ergonomic design and elegant appearance. Patient safety and functionality at low cost are the priority concerns for this bed. It provides a complete range of bed postures with a low budget.

Main features

- Bed Frame electrophoresis and powder coating

- MS perforated platform with ventilation hole, molded

- Four split side rails, drop down under the bed platform

- Head and Footboard Detachable head/footboard with easy lock

- 4 pieces foldable hand cranks

- Urine bag hooks on both sides

- With an angle indicator embedded in the railing

- Oxygen bottle holder and IV pole

Technical parameter

Model	YA-M5-6
Overall size	2240 × 1085 × 450 mm (88" x 42.7" x 17.7")
Recommended mattress size	2015*875 mm (79" x 34.5" )
Height adjustable	450-700 mm (17.7" - 27.5" )
Backrest adjustable	0° to 70°
Footrest adjustable	0° to 40°
Trendelenburg/reverse trendelenburg	0-12°
Castor	Dia 125 mm ( 5" )
Loading capacity	200 kg (440 Ibs)
