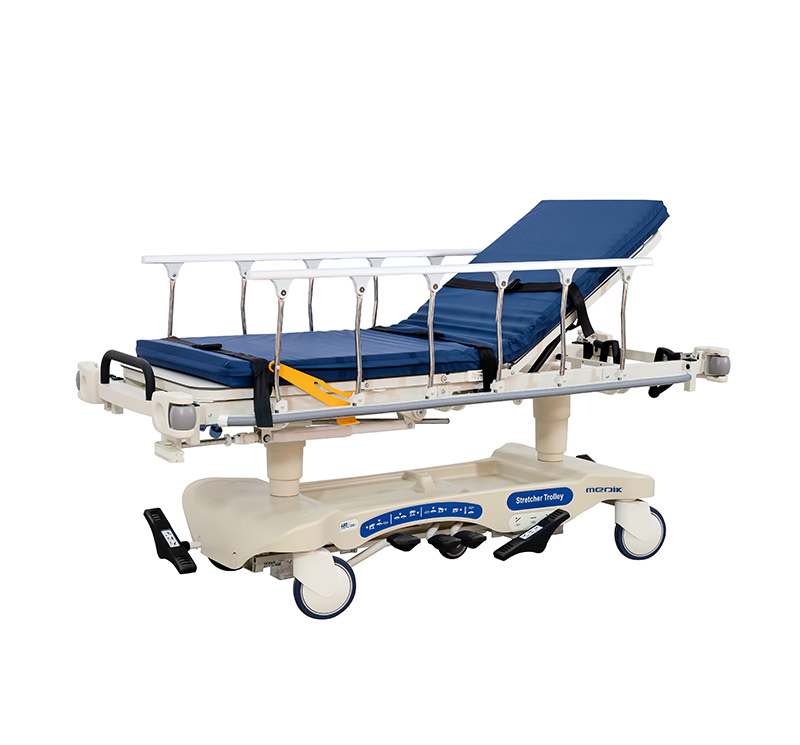

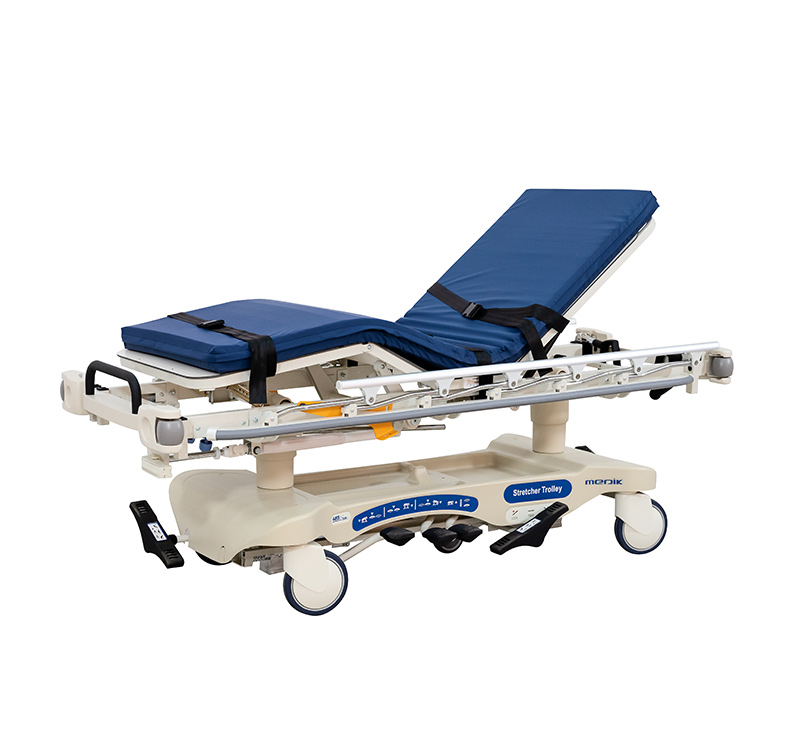

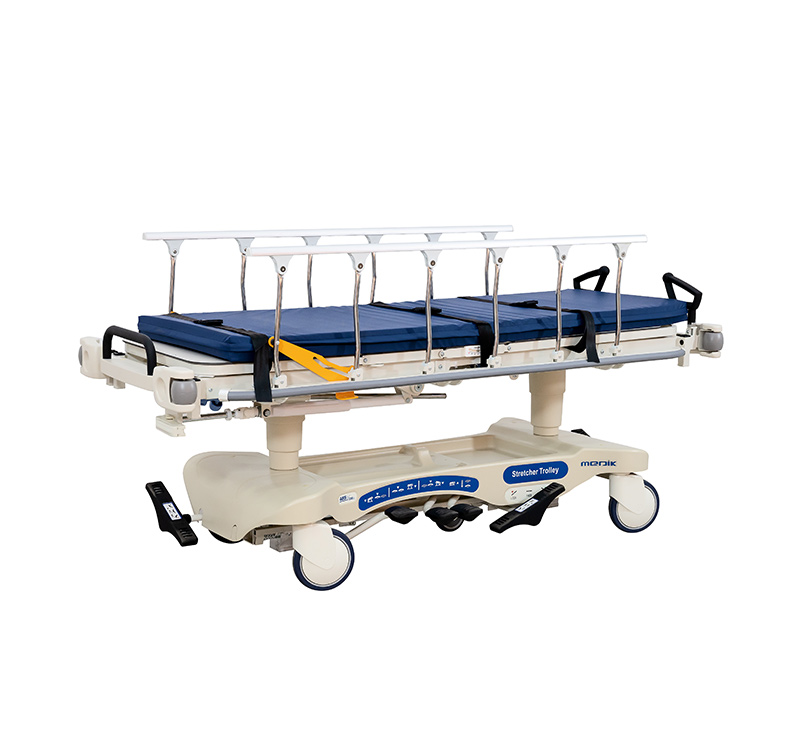

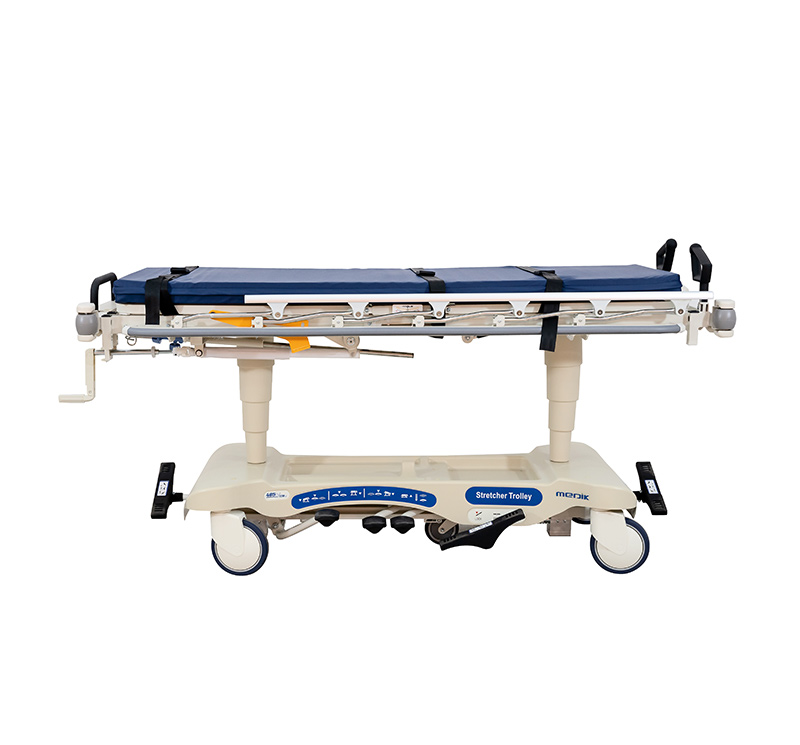

YA-PS01B Luxurious Hydaulic Patient Transfer Stretcher

Excellent manipulation and steering, ergonomic design to alleviate the workload of medical staff, plus the equipped most famous pump system, YA-PS01B is able to ensure the perfect operation experience and safety for both patients and medical staff during transfer.

Main features

- Back lifting system: controlled by silent double gas springs, strong load bearing and good stability.

- High and low lifting system: imported brand hydraulic cylinder control, more stable quality.

- Knee adjusted by crank.

- The feet can be adjusted separately with the gear buckle.

- Bed platform: transparent, with 7 cm thick mattress and straps,suit for X-RAY.

- Frame: welded by high-quality steel bent pipe.

- Full-length stainless steel folding guardrail, safe and durable.

- Casters: Four casters with diameter 200 mm are adopted with central locking.

- Fifth guide wheel.

- Equipped with an infusion pole, which can be stored in the infusion stand storage rack under the bed.

- The surface of the mattress is waterproof, easy to clean, equipped with zippers,and the 7 cm sponge is comfortable to lie on.

- Anti-collision wheels around the bed.

- There is a P-shaped push handle at the head of the bed and a U-shaped handle at the end of the bed.

Accessories list

1. Two pcs of stainless steel sidedrails.

2. One set of the fifth wheel .

3. Two lifting air springs on the back.

4. One knee handle.

5. One integral bottom tray.

6. One infusion stand.

7. Four standard infusion stand jacks.

8. One waterproof mattress.

9. Recording table (optional) One piece.

Technical parameter

Model	YA-PS01B
Overall size	L 2150*W 800*H 560 mm
Bed size	L1915*W 640 mm
Back section adjustment	0 ~ 90°±5°
Foot section adjustment	0 ~ 40°±5°
Height adjustment	560~890 mm ±10 mm
Trendelenburg/Reverse trendelenburg	-15°~ 15°±2°
Side rail length	≥1500 mm
Spacing between siderails	≤240 mm
Load bearing of side rail	≥15 kg
Load bearing of urine bag hook	≥30 kg
Castor	Dia 200 mm
The height of the pedal from the ground	≥105 mm
Oxygen bottle bracket capacity	Single is ≤10L
Bottom storage plate size	≥380*300 mm
Load bearing of Bottom storage plate	≥10 kg
Safe working load	220 kg
