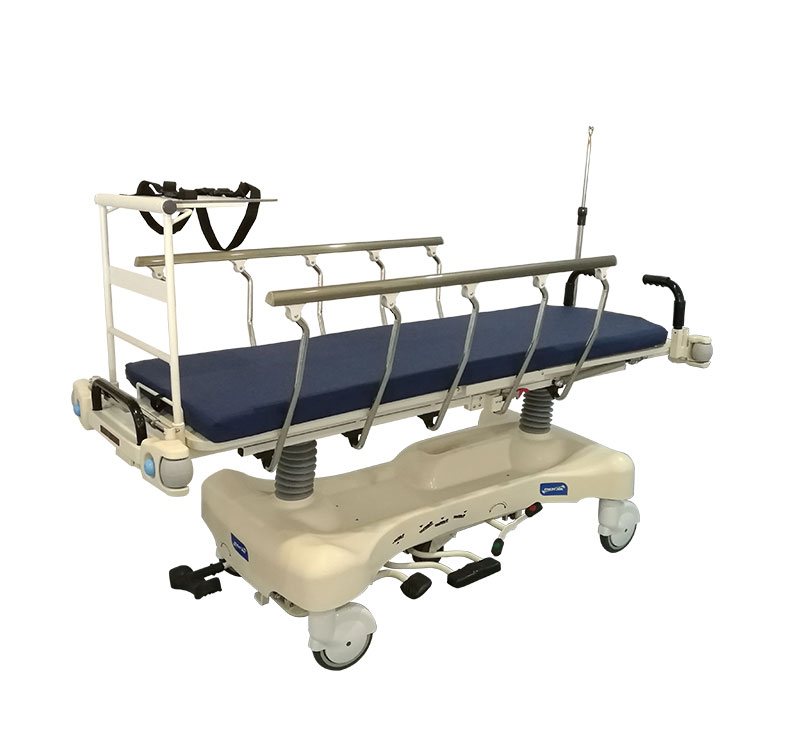

YA-PS02 Hydraulic Hospital Patient Trolley

The YA-PS02 Hydraulic patient trolley is compatible with most conventional X-Ray and C-Arm imaging equipment and has a fully radio-translucent mattress.

Main features

- Reliable hydraulic pump of Power-packer brand

- Two-column structure, accessible for C-arm

- Foldable pushing handle on both ends

- Robust collapsible railing, easy to lock up

- Central locking system with 200 mm diameter, easy for transportation

- With 5th retractable wheel in the middle for direction

- Moulded base chassis with reservation for oxygen cylinder and patient belongings

- Foot operation pedal on available on both sides

- Central brake pedal located on the bed end side, can brake it easily

- Bumper caster located on the four corners

- X-ray translucent platform (optional)

- Monitor shelf (optional)

Accessories

- Mattress

- IV pole

- Pushing handle

Options

- Monitor shelf

- X-ray translucent platform

Technical parameter

Model	YA-PS02
Overall size	2120 × 800 × 630 mm (83.5" x 31.5" x 25")
Height adjustment	630-930 mm (25" - 36.5" )
Back section adjustment	0-85°
Foot section adjustment	0-45°
Trendelenburg	0-15°
Reverse trendelenburg	0-15°
Caster	Diameter 200 mm ( 8" )
Loading capacity	235 kg(520 Ibs)
