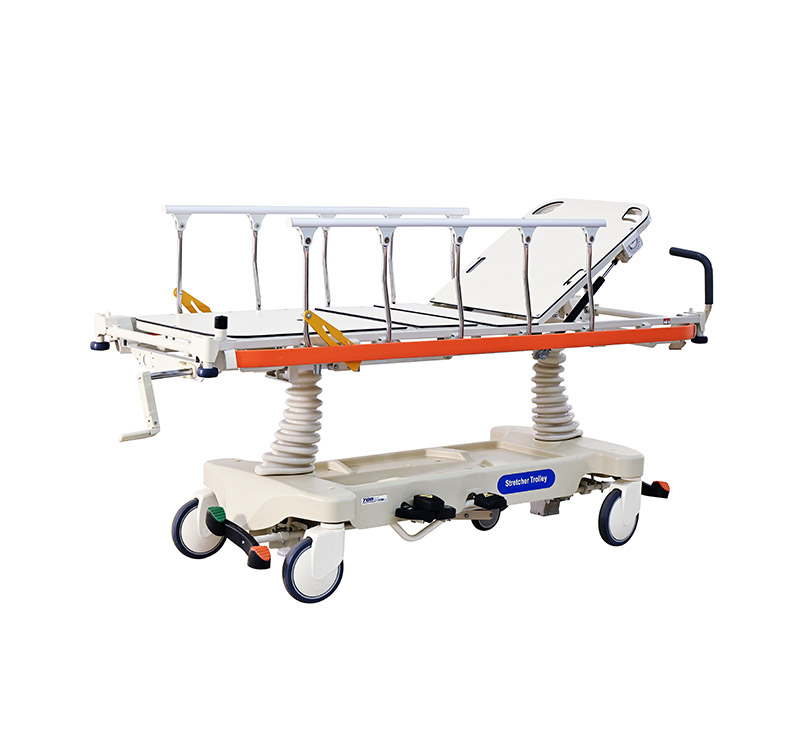

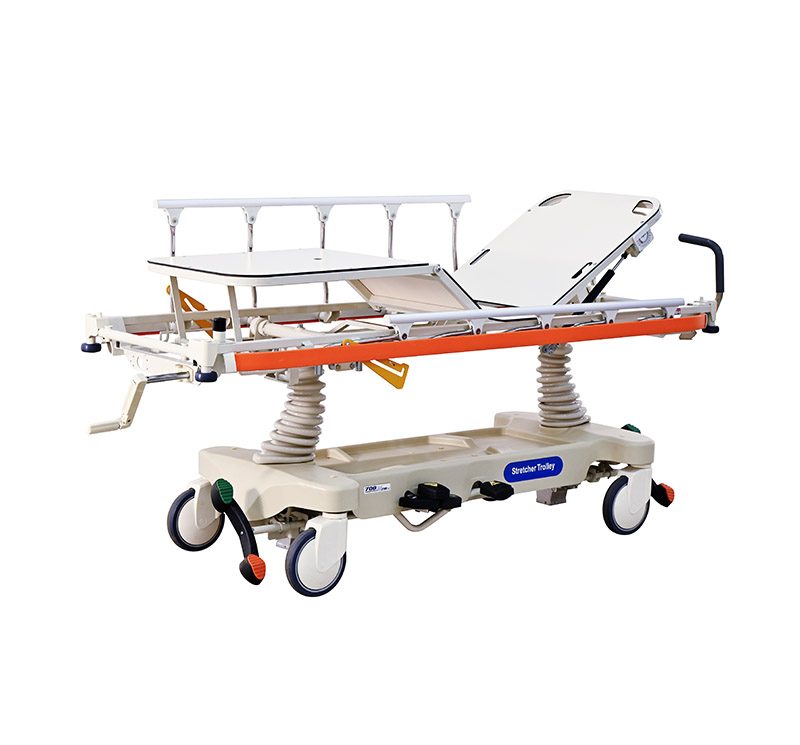

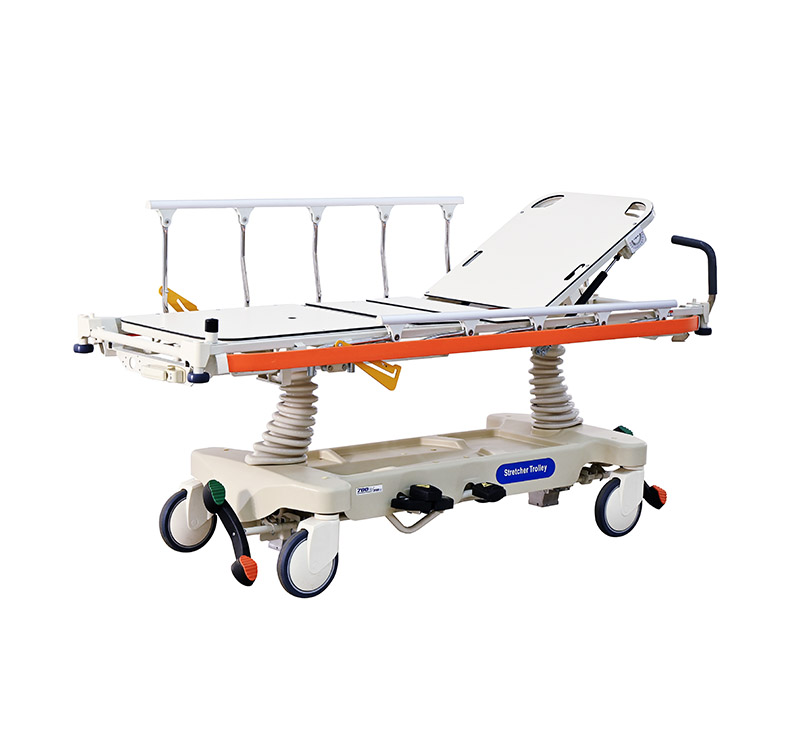

YA-PS01 Hospital Transport Stretcher

The ergonomic pushing handle, easy access brake pedal, and excellent steering functions are all features that contribute YA-PS01 to being a very nice option for patient transfer. Not only patient transfer, with safety protection and functionality of various patient positions, the YA-PS01 stretcher is also being used for the platform in the ER area.

Main features

- Two-column structure, accessible for C-arm

- The ergonomic push handle can be quickly raised with one click and can be hidden under the head of the bed when not in use.

- Robust collapsible railing, easy to lock up

- The bed surface is made of non-metallic X-ray transparent material, which is formed in one piece without splicing to ensure safety.

- With fifth-wheel steering function

- The central brake has 3 levels that can be adjusted

- Moulded base chassis with reservation for oxygen cylinder

- The foot operation pedal on available on both sides

- Bumper caster located on the four corners

- X-ray translucent platform (optional)

- Monitor shelf (optional)

Technical parameter

Model	YA-PS01
Overall size(L*W*H)	2100 × 760 × 560 mm (82.5" x 30" x 22")
Height adjustment	560-890 mm (22" - 35" )
Back section adjustment	0-80°
Knee section adjustment	0-35°
Trendelenburg	0-18°
Reverse trendelenburg	0-18°
Castor	Dia 200 mm ( 8" )
Loading capacity	Dynamic load 318 kg (700 Ibs)
