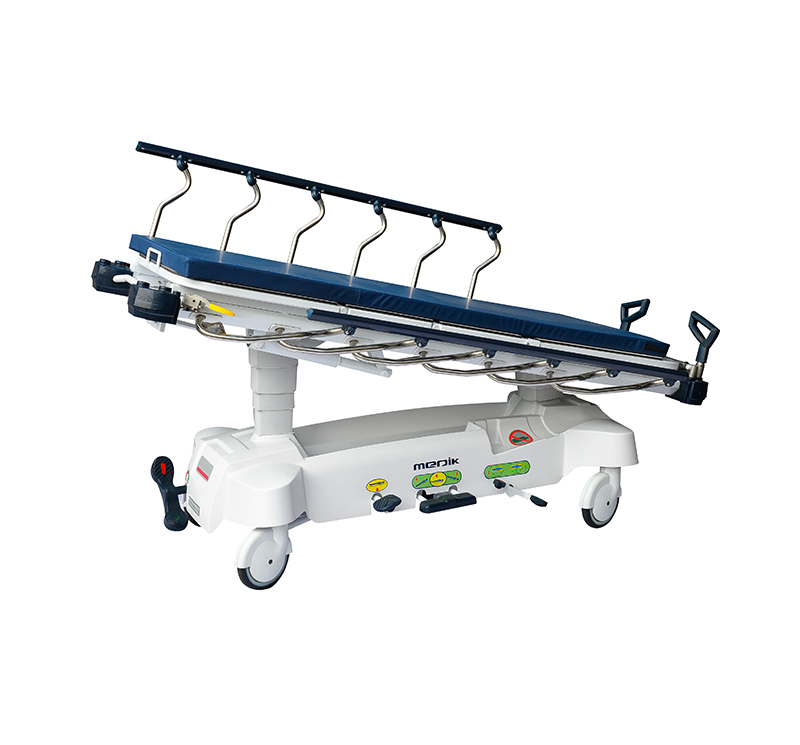

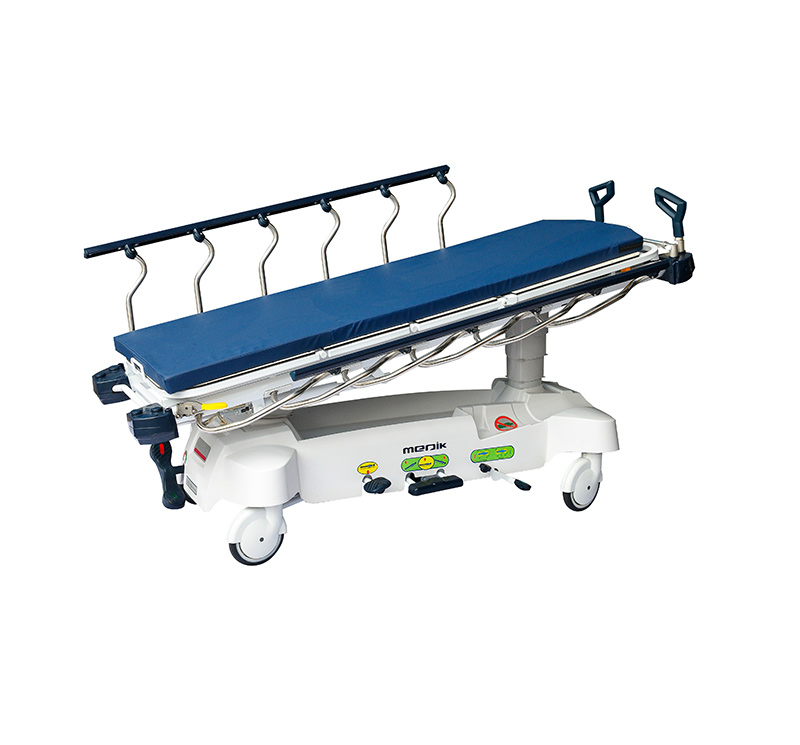

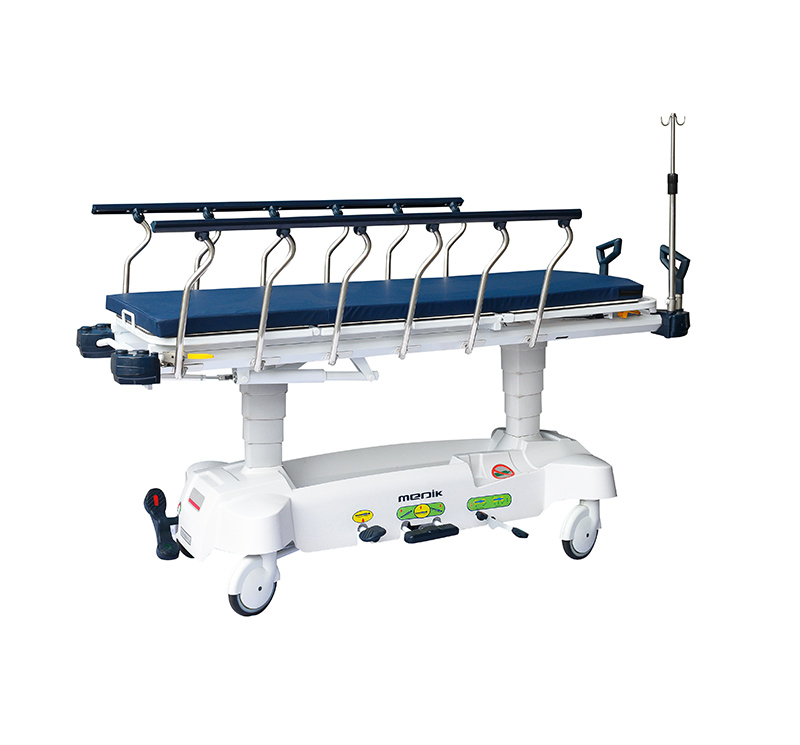

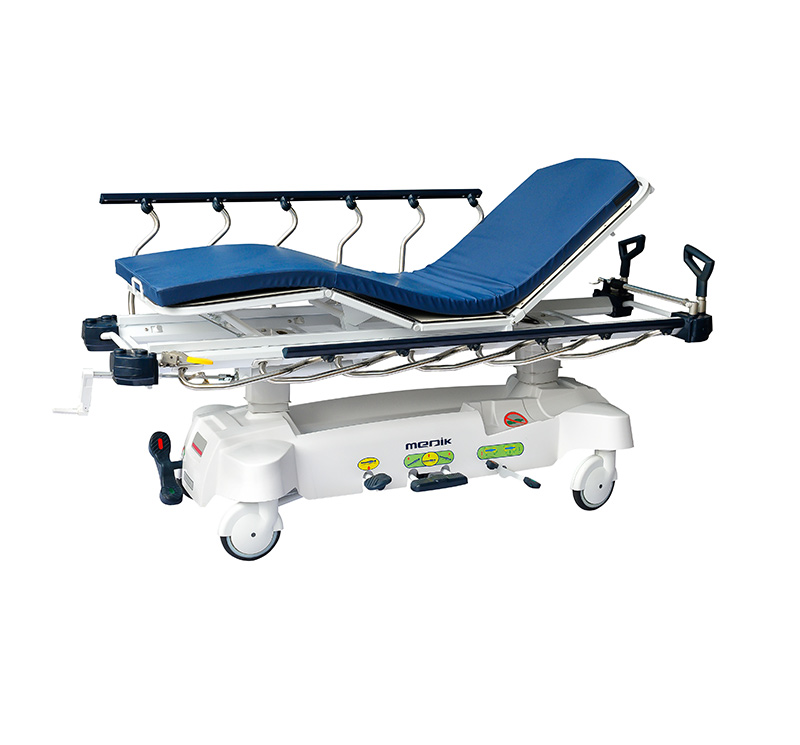

YA-PS07 Hydraulic Patient Transport Stretcher

The YA-PS07 hydraulic transport stretcher is specially designed for patient transfer between different departments with excellent manipulation and trafficability.

Main features

- Full length X-ray translucent platform

- Dust covers protect hydraulic actuators

- Back section can be elevated with gas springs

- Knee gatch can be elevated with stowable manual crank

- Collapsible side rails for transfers or patient access

- Side rails lock in upright position for safety

- Storage area in base for oxygen E-cylinder tanks and belongings

- Two brake pedals, one at foot of stretcher and one at head

- 8 inch swivel casters with central braking system

- Retractable 5-inch wheel for easier maneuvering

- Dual, side-mounted foot control with pedal

- Includes removable telescopic IV pole

- Built-in ergonomic push handles can be rotated down for storage

- Shock-absorbing,roller bumpers

- Ideal for emergency rooms, recovery, pre-op, and post-op

Technical parameter

Model	YA-PS07
Overall size(L*W*H)	2140 × 810 × 590 mm (84.2" x 32" x 23")
Height adjustment	590-910 mm (23" - 36" )
Backrest adjustment	0-80°
Footrest adjustment	0-35°
Trendelenburg	0-15°
Reverse trendelenburg	0-15°
Castor	Dia 200 mm ( 8" )
Loading capacity	250 kg(550 Ibs)
