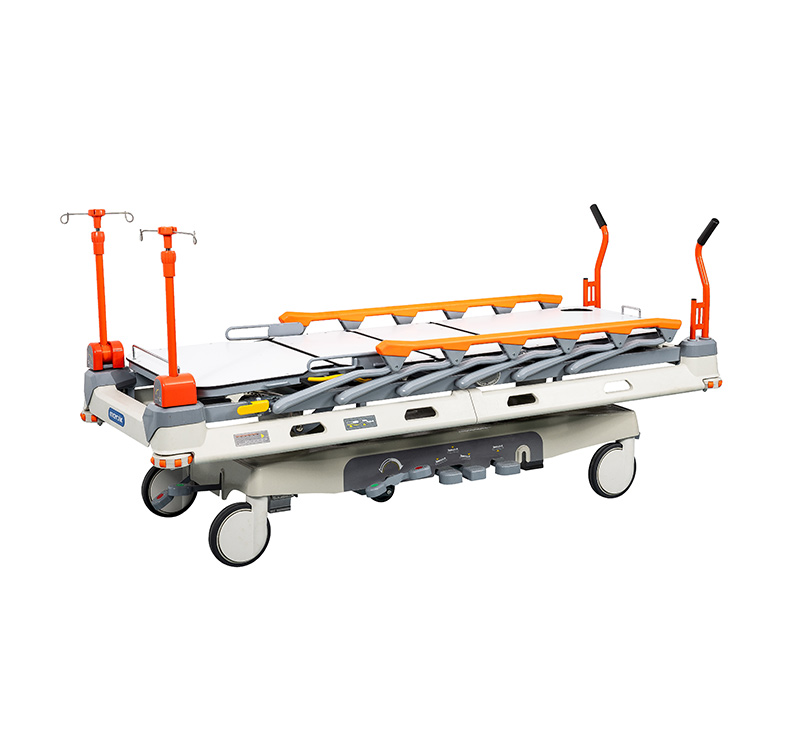

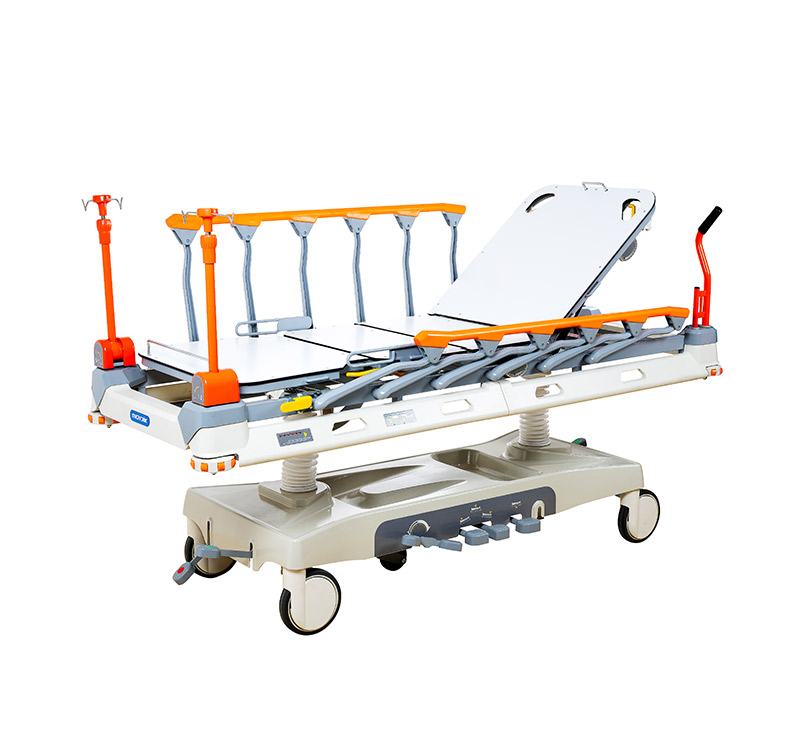

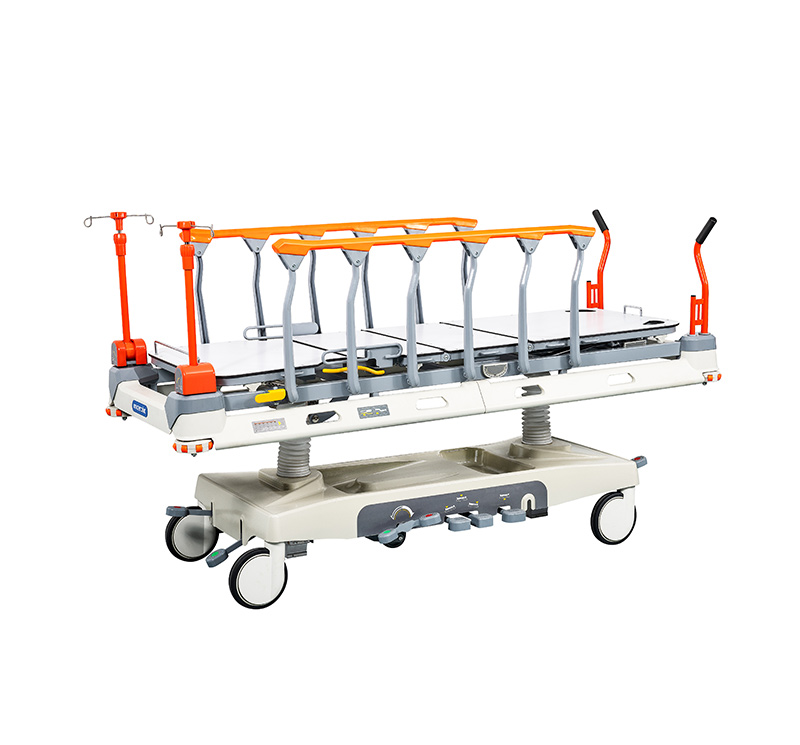

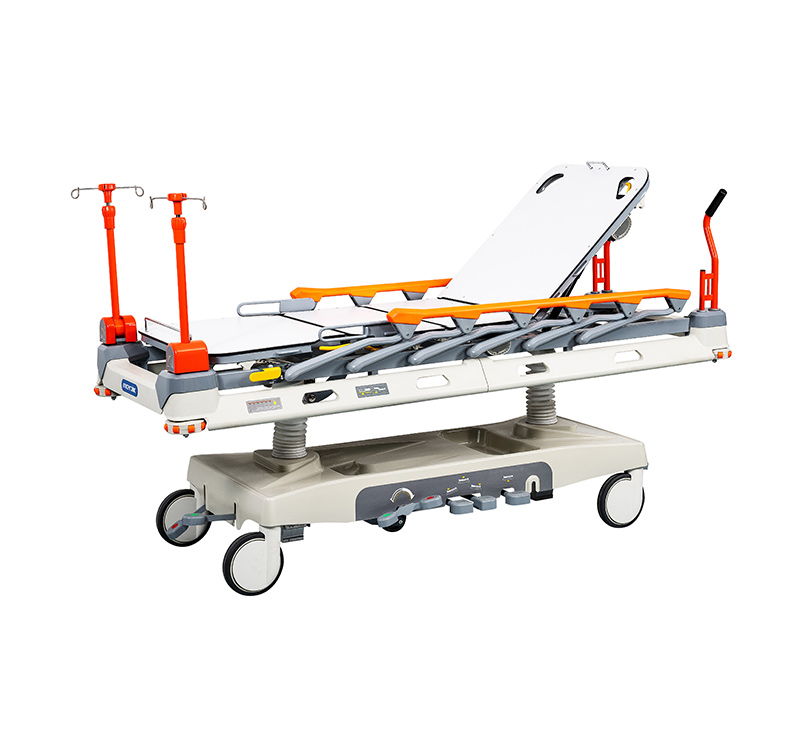

YA-PS01C Luxurious Transport Stretcher

Modern and eye-catching appearance design, excellent handling and steering, and ergonomic design reduce the workload of medical staff, coupled with the most durable pump system equipped, the YA-PS01C transport stretcher can ensure the safety of patients and medical staff during the transfer process perfect operating experience and safety.

Main features

- Full-length X-ray translucent platform

- ABS dust covers protect hydraulic actuators

- Back and knee section can be adjusted by gas springs

- foot section can be lifted individually by gears

- Collapsible side rails for transfers or patient access

- Storage area in base for belongings

- Two brake pedals, one at the foot of the stretcher and one at the head

- 8-inch swivel casters with central braking system

- Retractable 5-inch wheel for easier maneuvering

- Dual, side-mounted foot control with pedal

- Includes foldable telescopic IV pole

- Built-in ergonomic push handles at the head of the stretcher

- Bumper castors on four corners

-The multifunctional side rails can be used to hang items.

- Ideal for emergency rooms, recovery, pre-op, and post-op

Technical parameter

Model	YA-PS01C
Overall size (L*W*H)	2170 × 780 × 575 mm (85.5" x 30.7" x 22.6")
Height adjustment	575-790 mm (22.6" - 31" )
Bed size (L*W)	1910* 630 mm (75.5" x 25 " )
Back section adjustment	0 ~ 75°±5°
Foot section adjustment	0 ~ 40°±5°
Trendelenburg/Reverse trendelenburg	-13°~ 13°±2°
Castor	Dia 200 mm ( 8" )
Safe working load	250 kg (550 Ibs)

Product detail

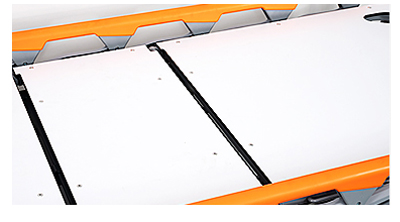

The bed surface is transparent, suit for X-RAY.	The multifunctional side rails can be used to hang items.

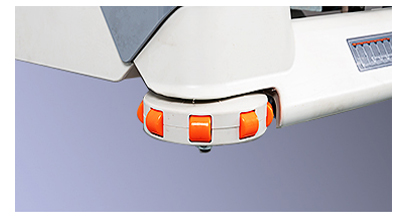

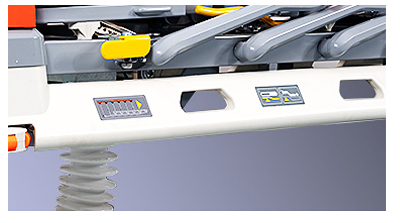

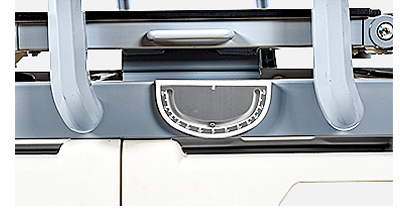

Two angle indicators to display the angle of the back section.	Bumper castors on the four corners to protect the stretcher.

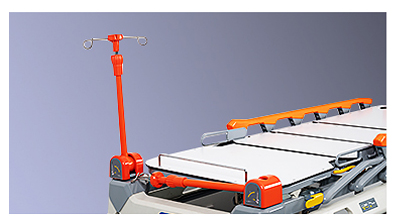

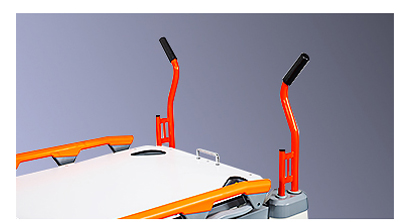

Two telescopic and foldable IV stands on the end of the stretcher,also can be used as push handle.	Push handle at the head of the stretcher, ergonomic design, easy to move.

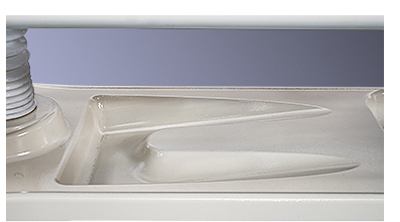

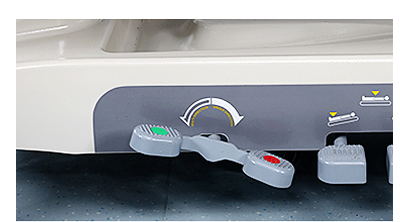

The bottom has ABS cover with storage space.	There are foot pedals on both sides of the bed.
