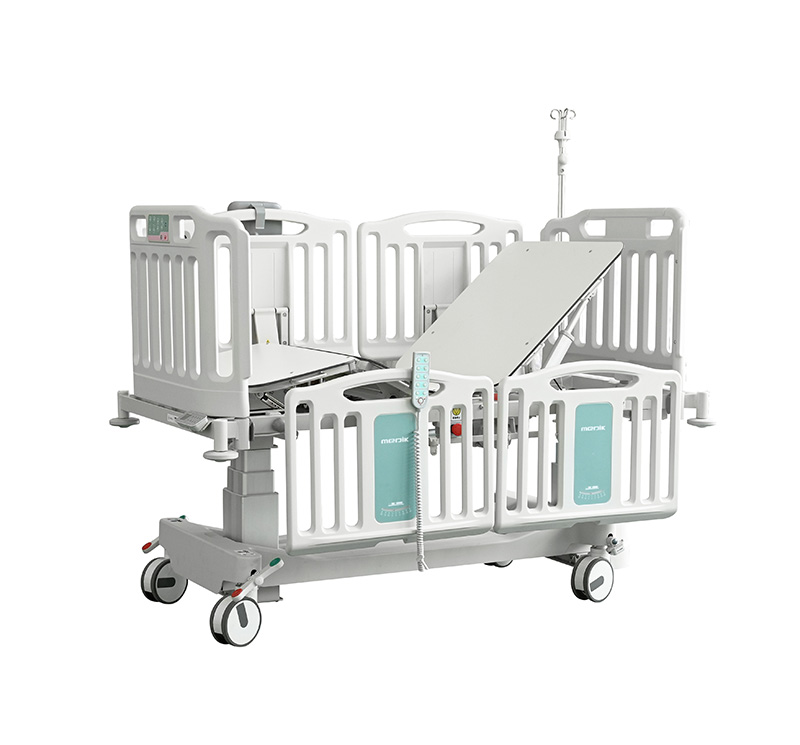

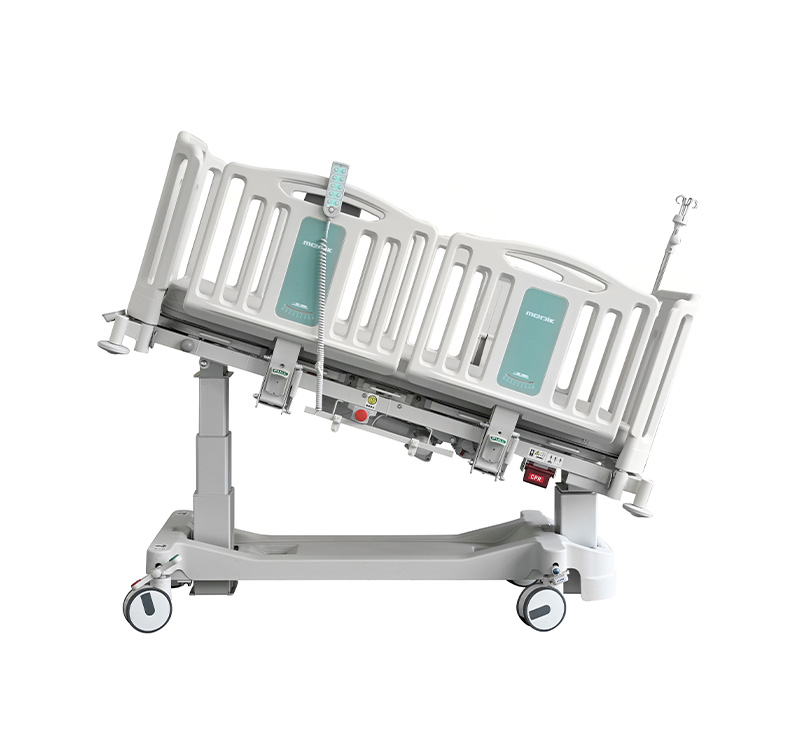

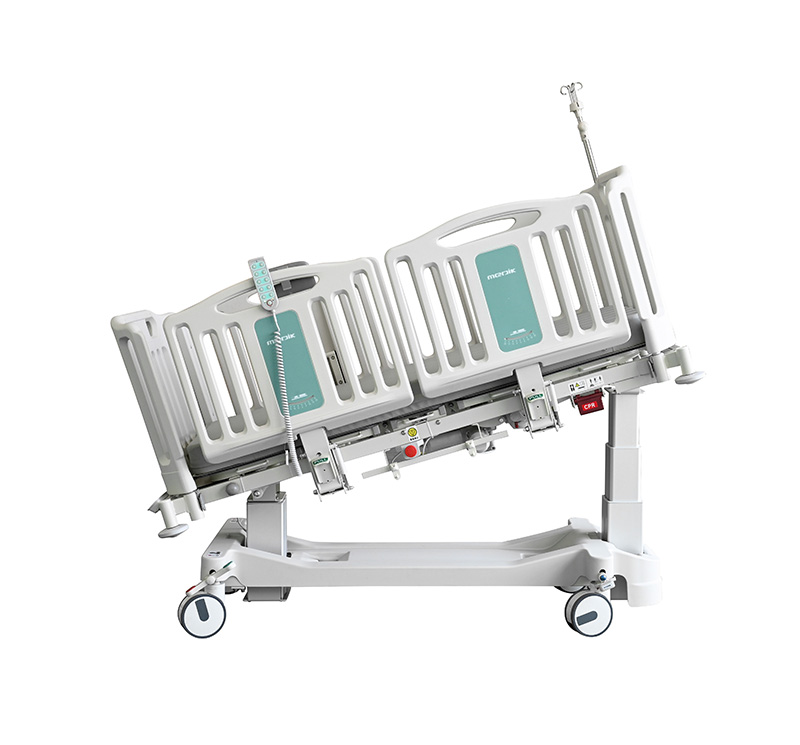

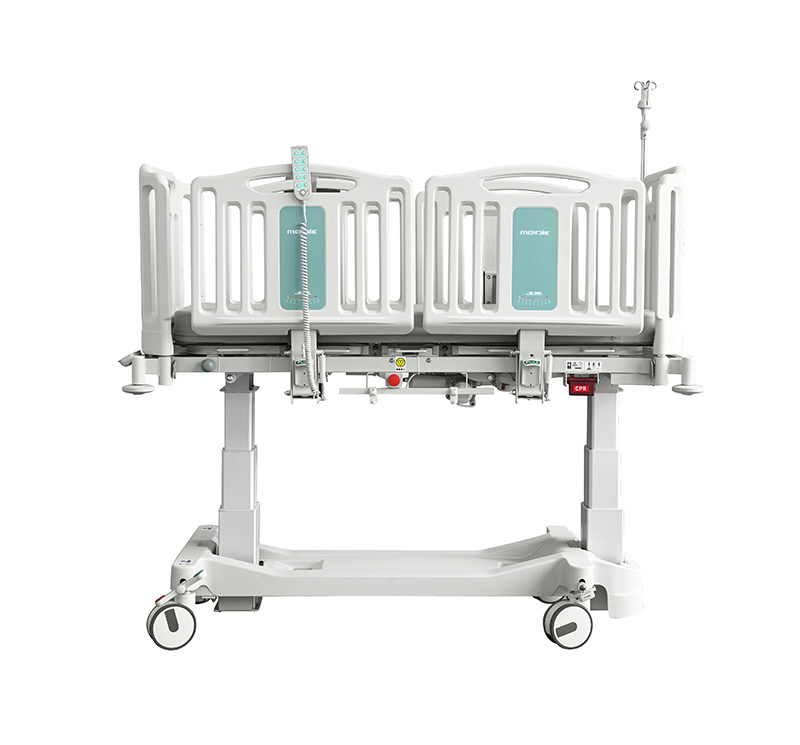

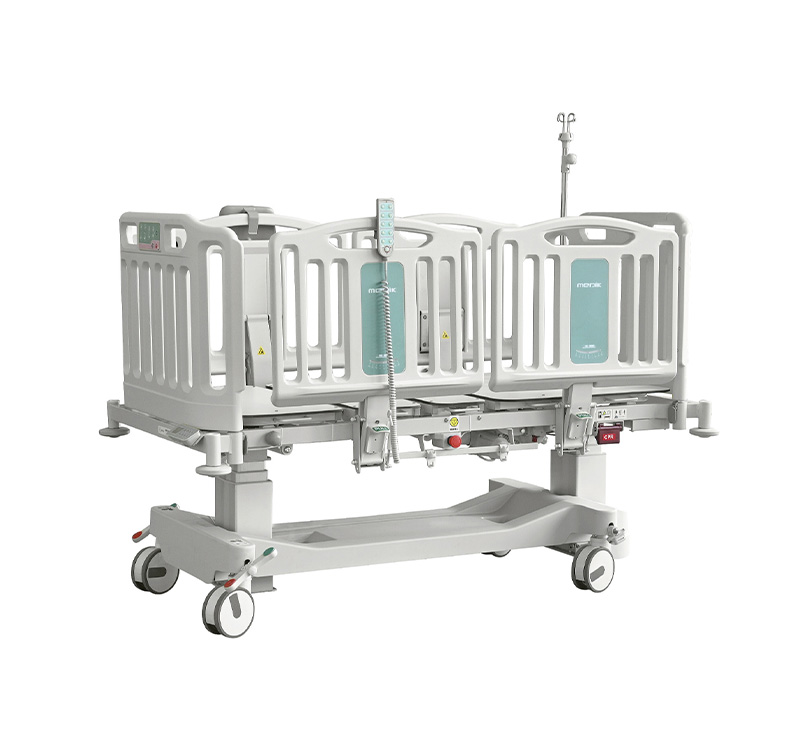

YA-PD5-2 Electric Pediatric ICU Bed

The YA-PD5-2 Pediatric Bed is a state-of-the-art children's bed. Warm and inviting, this bed helps to bring an element of home into the clinical environment. It provides excellent access for nursing staff with electric positioning, telescopic side rails, and column construction mechanism. The YA-PD5-2 has very high safety parameters and looks great with a child-friendly design.

Main features

- Remote control and nurse control

- Electronic adjustment of backrest, legrest, and height positions

- Manual CPR (for backrest), electronic CPR

- One button chair position

- Auto-regress to remove the pressure of the abdomen when adjusting the backrest

- Auto-counter to provide the patient from sliding onto foot end

- Foldable side rails and removable head/foot boards made of ABS

- 4 sections lying surface made of HDPE

- 360° turning castors (125 mm), 2 of them with brakes.

- Bumpers on 4 corners

- Urine bag holder

- Holes for IV pole and lifting pole on 4 corners

- Electrostatic epoxy polyester powder metal parts

- Angle indicators on side rails

Optional configuration

- Translucent platform for x-ray

- HPL platform

- Bed frame extension

- Weighing scale

- Night light under the bed

- Brake warning system

- 5th direction castor

- Battery backup

Technical parameter

Model	YA-PD5-2
Overall Size	1840 × 970 × 600 mm
Mattress size	1600 × 750 × 100 mm
Height adjustment	600~1000 mm
Back-rest adjustment	0-70°
Knee-rest adjustment	0-30°
Reverse Trendelenburg /Trendelenburg	0-12°
Loading capacity	240 kg (530 Ibs)
Castor	Dia 150 mm (6 inches)
