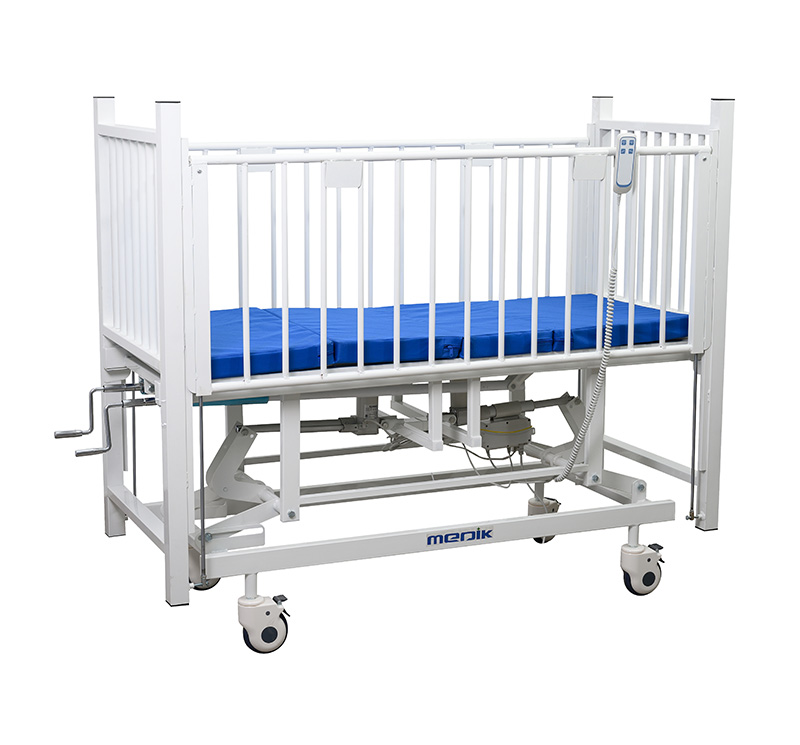

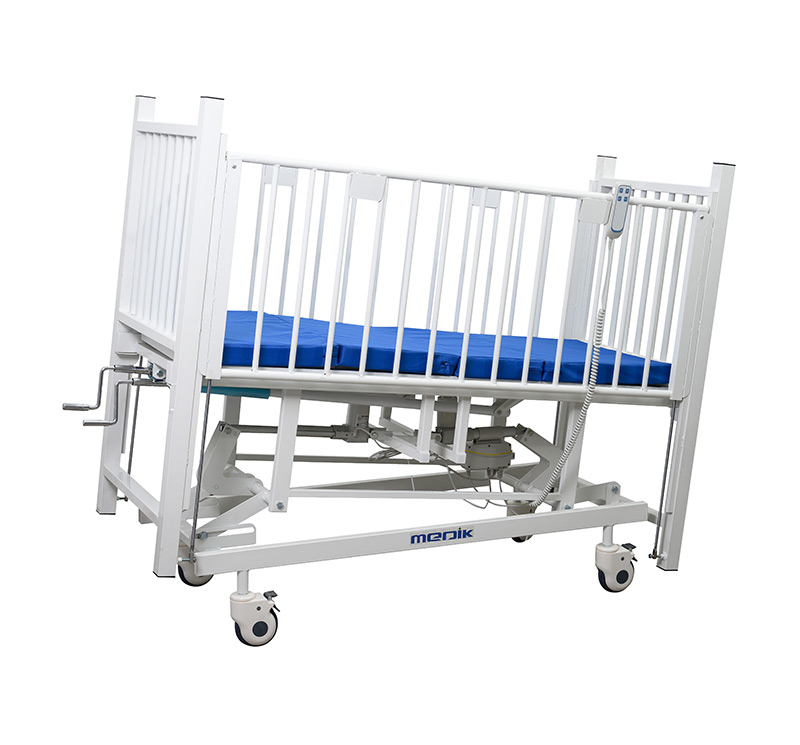

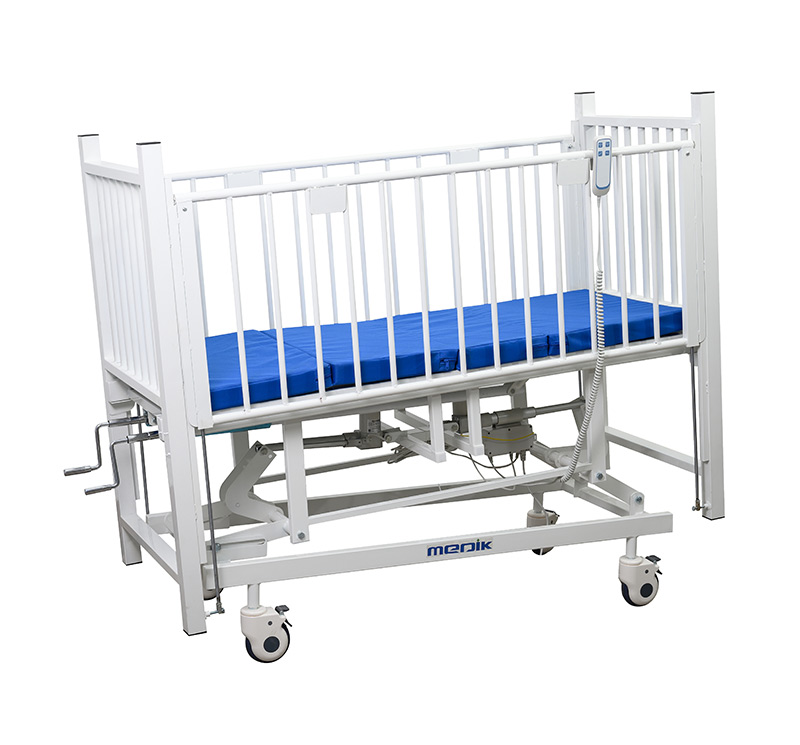

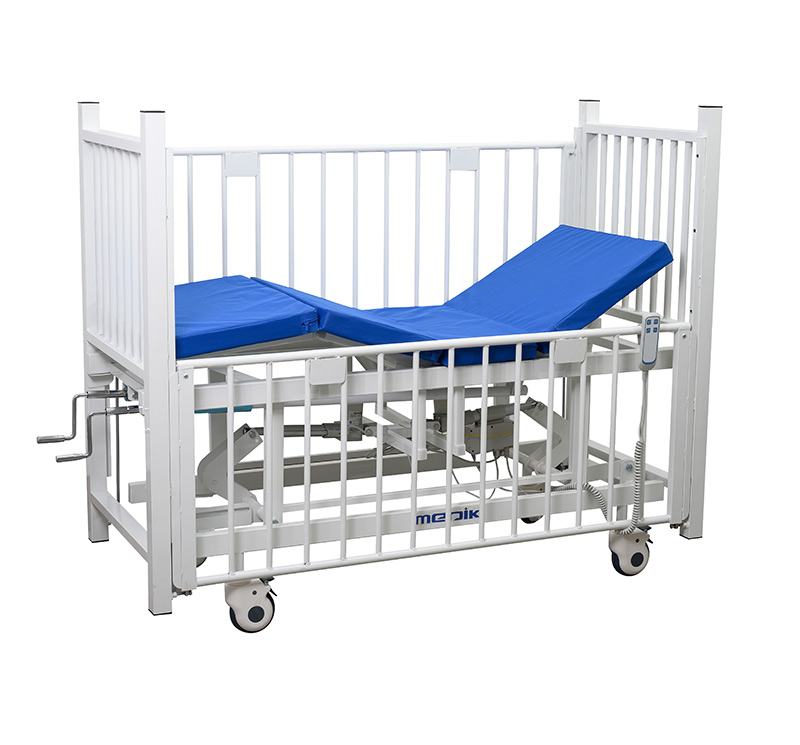

YA-PD5-5 Semi Electric Pediatric Safety Bed

Share:

Model : YA-PD5-5

Overall Size : 1300 × 650 × 600 mm

Loading capacity : 120 kg

Function :  Back, Leg, Hi-Low ,Trendelenburg,Reverse trendelenburg

Customization: Available

Certificate : CE / ISO

Warranty: 3-Year on Frame and Welds, and 1-Year on Parts



  • Product Details
  • Downloads

The YA-PD5-5 is a pediatric Bed with electric and manual controls. The extra height fence design provides the children with great safety, up-down sliding rails with double lock prevents children from opening the rail accidentally which is another key safety design.

Technical parameter

Model YA-PD5-5
Overall size (L*W*H) 1300 × 650 × 600 mm (51" x 25.5" x 23.5")
Bed platform height 600-960 mm (23.5" - 37.7" )
Backrest adjustable 0° to 75°
Footrest adjustable 0° to 40°
Trendelenburg 0° to 12°
Reverse trendelenburg 0° to 12°
Loading capacity 120 kg (265 Ibs)

Features

- Hand remote control

- Head and footboard: Powder spray

- Side rails: Two powder spray side rails with HI-LOW position

- Castors: Four 125 mm castors and two with brakes

- With I.V. pole

- Mattress is also available

- The backrest &footrest are adjusted by the manual crank
