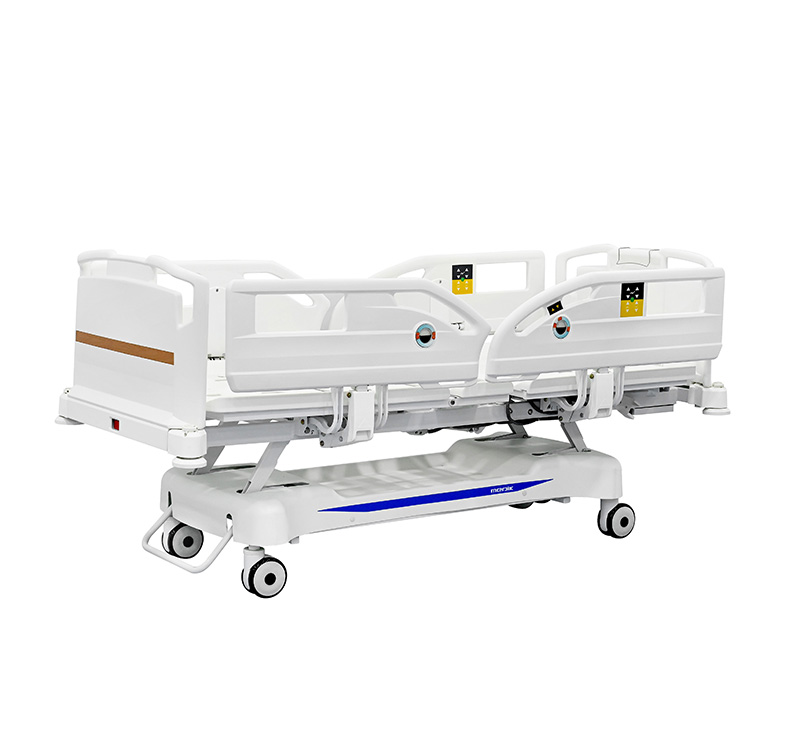

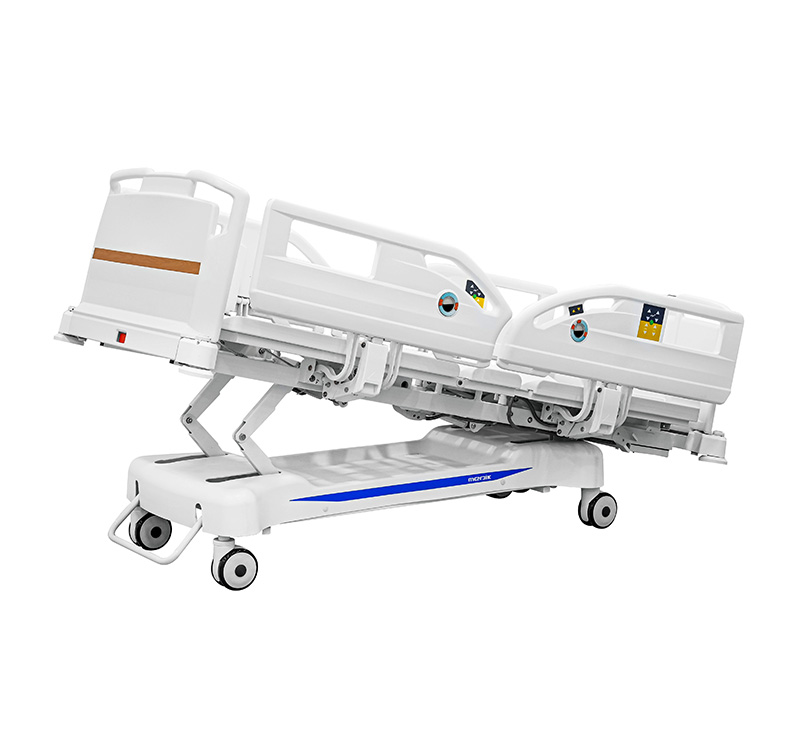

YA-D5-12 ELectric Patient Hospital Bed

YA-D5-12 is a new generation lCU bed integrated with railing control. The unique side rail is with full length protection and patient bed exit support system. The ergonomic design and multiple one-button operation positions enable this bed to meet all the needs of the patient's recovery process.

Main features

- Four section removable platform

- Full length guardrail with safety gap

- Control panel on both inside and outside of the guardrail

- Removable ABS head and foot board with lock device

- One button examination position

- Assisted bed exit button

- Auto-Counter

- One button chair position

- One button the highest position

- Locking function for control panel

- Battery backup (optional)

- Weighing scale (optional)

- Emergency button

- Four provisions for IV pole

Technical parameter

Model	YA-D5-12
Overall size	2100 × 970 × 550-770 mm
Lying surface size	2000*860 mm
Back section	0-70°±5°
Leg section	0-40°±5°
Height adjustment	550-770 mm±10 mm
Trendelenburg/Revere- Trendelenburg	0-12°±3°
Safe working load	250 kg
Castor	Dia 125 mm
